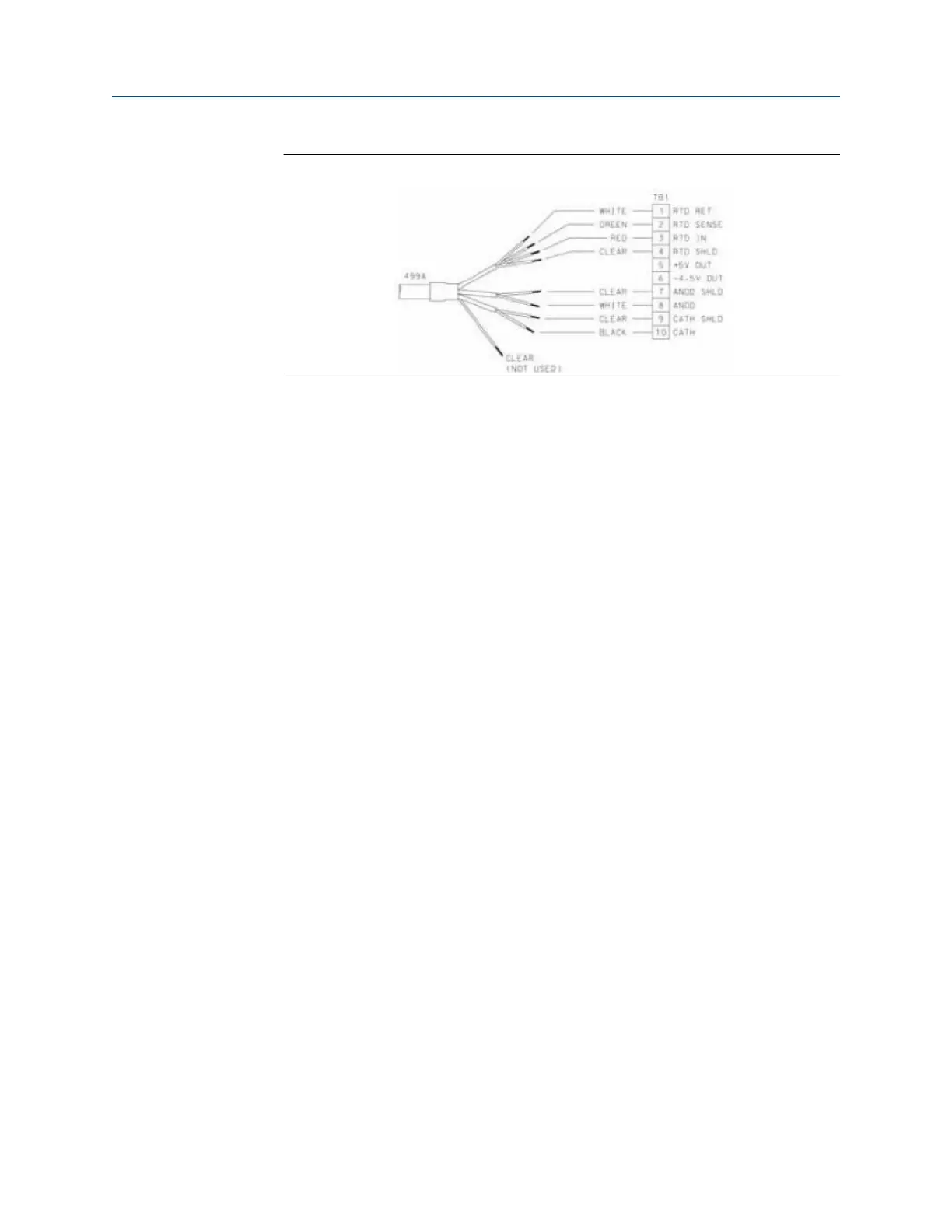

Figure 4-4: Wiring Power with Standard Cable to Rosemount 1056 Transmitter
6. Once the cable has been connected to the board, slide the board fully into the
enclosure while taking up the excess cable through the conduit opening.
7. If you are using a cable gland, tighten the gland nut to secure the cable and ensure
a sealed enclosure.
4.7 Apply power to the transmitter and complete
Quick Start
For Rosemount Total Chlorine System with Rosemount 56 transmitter:
Procedure
1. Once connections are secured and verified, apply power to the transmitter.
When the transmitter is powered up for the first time, Quick Start screens appear.
The first Quick Start screen has two control boxes, one for language and the other
for temperature units.
a. The cursor, shown by dark blue backlighting, is on the language control
box. To change the language, press the ENTER/MENU key. A list of available
languages, shown two at a time, appears. Using the Up and Down keys,
scroll (see ) to display the choices. Press ENTER/MENU to select the desired
language. Press Down to move the cursor to the temperature control box. To
change units, press ENTER/MENU and scroll to either °F or °C. Press ENTER/
MENU to store the selection.
b. To move to the next screen, use the navigation keys to move the cursor to
NEXT and press ENTER/MENU.
2. The next screen lists navigation rules. Press ENTER/MENU for the next screen.
3. Configure sensor 1.
Sensor 1 is the total chlorine sensor. The screen has two control boxes.
a) For measurement, choose Total chlorine
b) Choose the desired units, mg/L or ppm.
4. Move the cursor to NEXT and press ENTER/MENU.
The display changes to show some basic keypad operation guidelines.
5. Press ENTER/MENU to show the main display.
The outputs, alarms, display configuration, and data logging are all assigned to
default values. The default value for data logging is disabled.
Wiring Reference Manual
January2023 00809-0200-3415
22 Emerson.com/Rosemount
