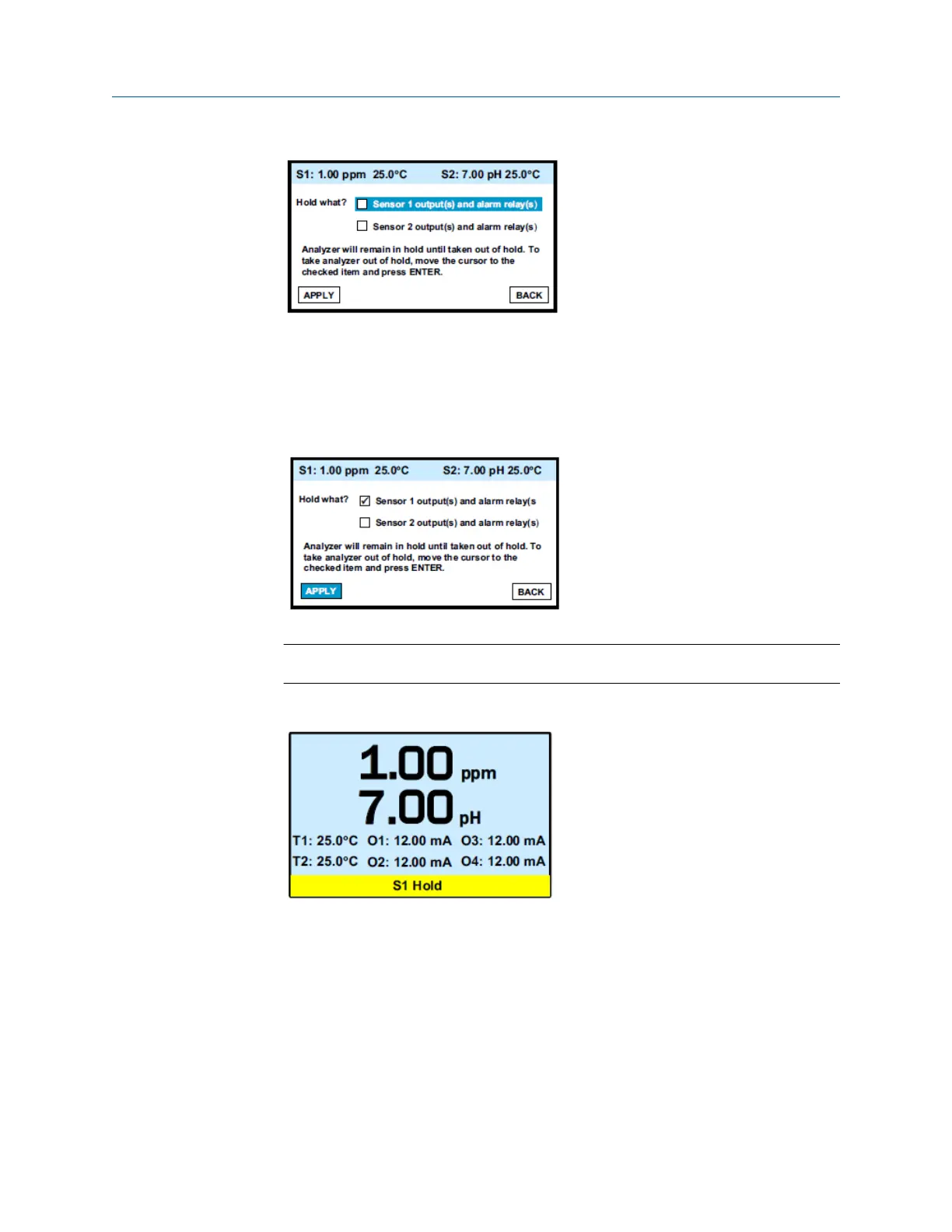

3. To hold outputs and relays associated with sensor 1, press ENTER/MENU. A check
appears in the checkbox. To put sensor 2 on hold also, move the cursor to the
sensor 2 line and press ENTER/MENU to select the sensor 2 checkbox.
4. To activate Hold, move the cursor to the APPLY at the bottom left of the screen and
press ENTER/MENU.
The selected sensor outputs and alarm relays remain on hold until taken out of hold.
However, if power is lost and then restored, hold will automatically be turned off.
The screen describes how to take the transmitter out of hold.
Important
Be sure to press APPLY once the box has been unchecked.
A message stating which sensors are in hold appears in the fault/warning banner at
the bottom of the display.
6.5
Main display
6.5.1 Configuring the main display
The main display can be configured to meet your specific requirements.
Procedure
1. With the main display showing, press ENTER/MENU.
The main menu appears.
Display and operation Reference Manual
January2023 00809-0200-3415
32 Emerson.com/Rosemount

Emerson Rosemount TCL Specifications

General

Category	Measuring Instruments
Manufacturer	Emerson
Operating Temperature	0 to 50°C (32 to 122°F)
Measurement Range	0 to 20 ppm
Output Signal	4-20 mA
Power Supply	24 VDC
Enclosure Rating	IP65
Material	Stainless steel
Technology	Amperometric Sensor
