6 Display and operation
6.1 Main display
The transmitter has a four line display.
See Figure 6-1. The display can be customized to meet your requirements. Fault or warning
messages, if appropriate, appear at the bottom of the screen. See Overview.

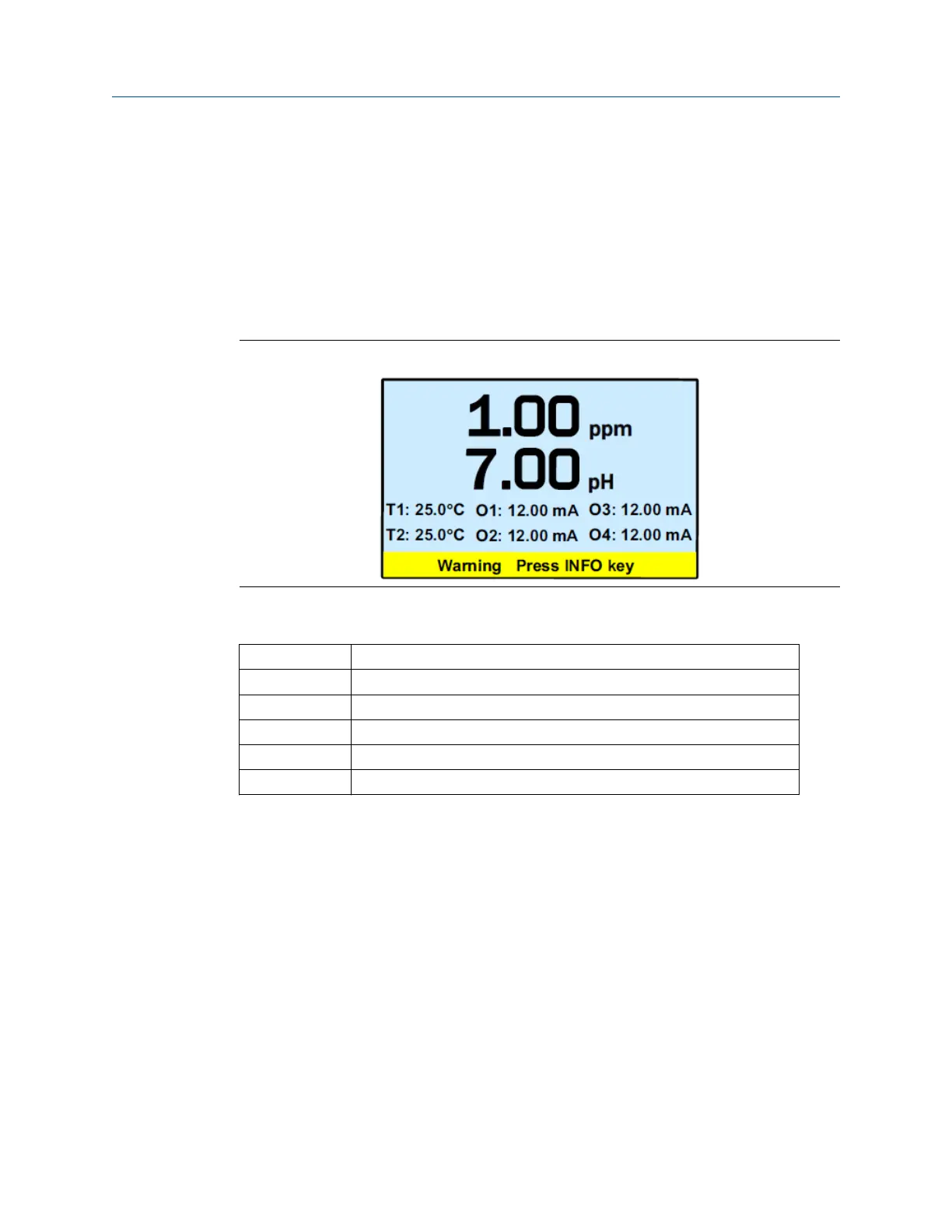

Figure 6-1: Main display
The following abbreviations are used in the lower two lines of the display. The number
following the display refers to the sensor, alarm relay, or output.
O
Output
T Temperature (live)
Tm Temperature (manual)
M Measurement
AL Alarm relay
I Sensor current (chlorine)
