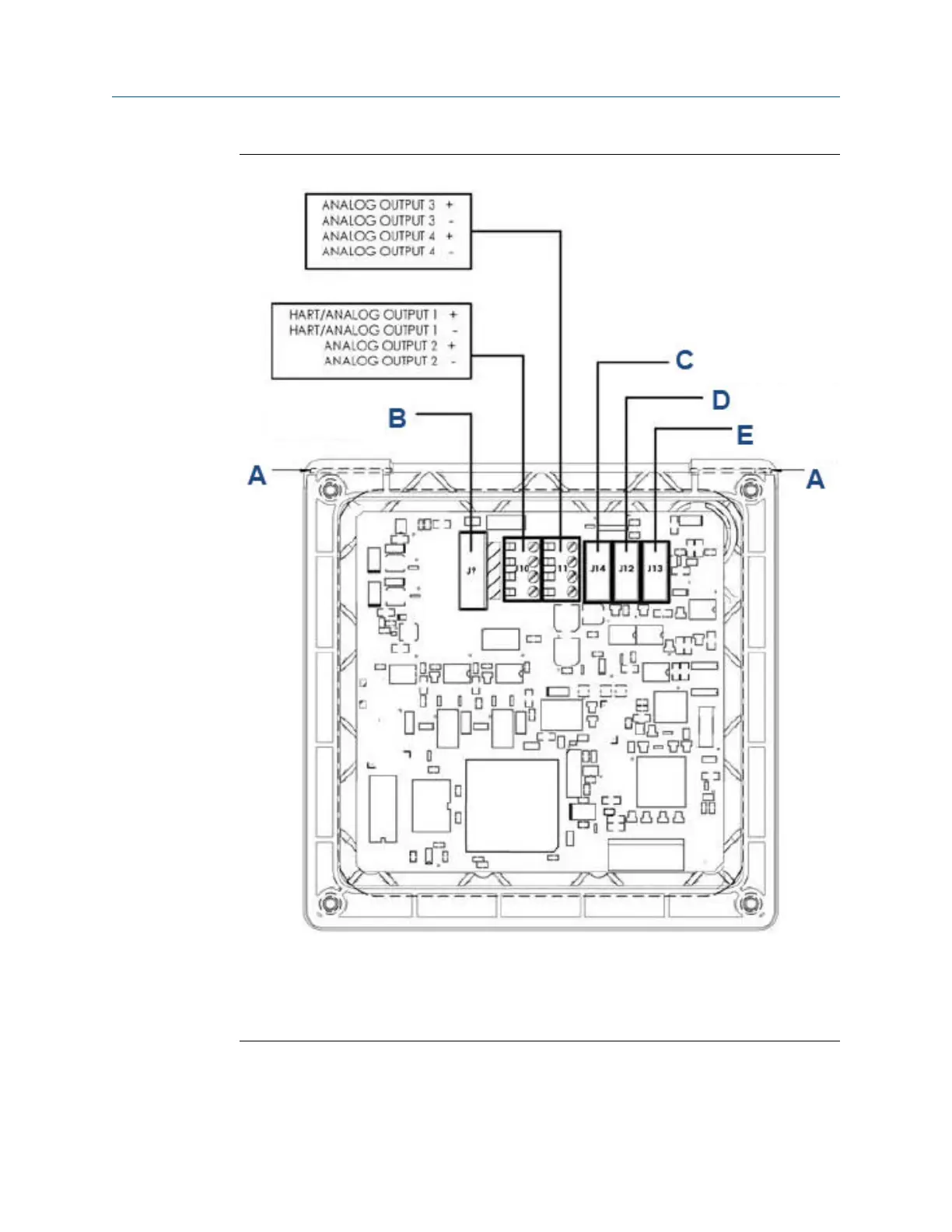

Figure 12-1: Main Board Showing Connections to Sensor Board(s)
A. Hinge pin
B. To power supply PCB (ribbon cable)
C. To digital in/out communication board
D. To sensor 1 signal board
E. To sensor 2 signal board
Maintenance Reference Manual
January2023 00809-0200-3415
52 Emerson.com/Rosemount
