COLINEAR TRANSITION VENT KIT
The Colinear Transition Kit (Part number PVCT) is available and
can be used to secure the ue and inlet pipes from the Mantis.
When venting vertically, the exhaust pipe termination must be a
minimum of 3 inches above the air inlet.
The ue can be terminated with a PTrap or two 90° elbows. The
Vertical Termination Cap (Part number PVVTC) can also be used
to terminate the ue pipe when using the Colinear Transition Kit.
AIR INTAKE
PTRAP OR290° ELBOWS
SUPPLIED BY INSTALLER
TRANSITION PLATE
PVC CEMENT
PVC CEMENT
OUTDOOR SEALER REQUIRED
OPTIONAL
TERMINATION CAP
3” MIN.
REQUIRED HEIGHT IS 12” MINIMUM.
IT IS RECOMMENDED TO BE 12” ABOVE
THE MAXIMUM EXPECTED SNOW LEVEL.
AIR INTAKE
PTRAP OR290° ELBOWS
SUPPLIED BY INSTALLER
TRANSITION PLATE
PVC CEMENT
PVC CEMENT
OUTDOOR SEALER REQUIRED
3” MIN.
EXHAUST
PTRAP OR 2 90° ELBOWS
SUPPLIED BY INSTALLER
REQUIRED HEIGHT IS 12” MINIMUM.
IT IS RECOMMENDED TO BE 12” ABOVE
THE MAXIMUM EXPECTED SNOW LEVEL.
Installation of the Colinear Transition Plate

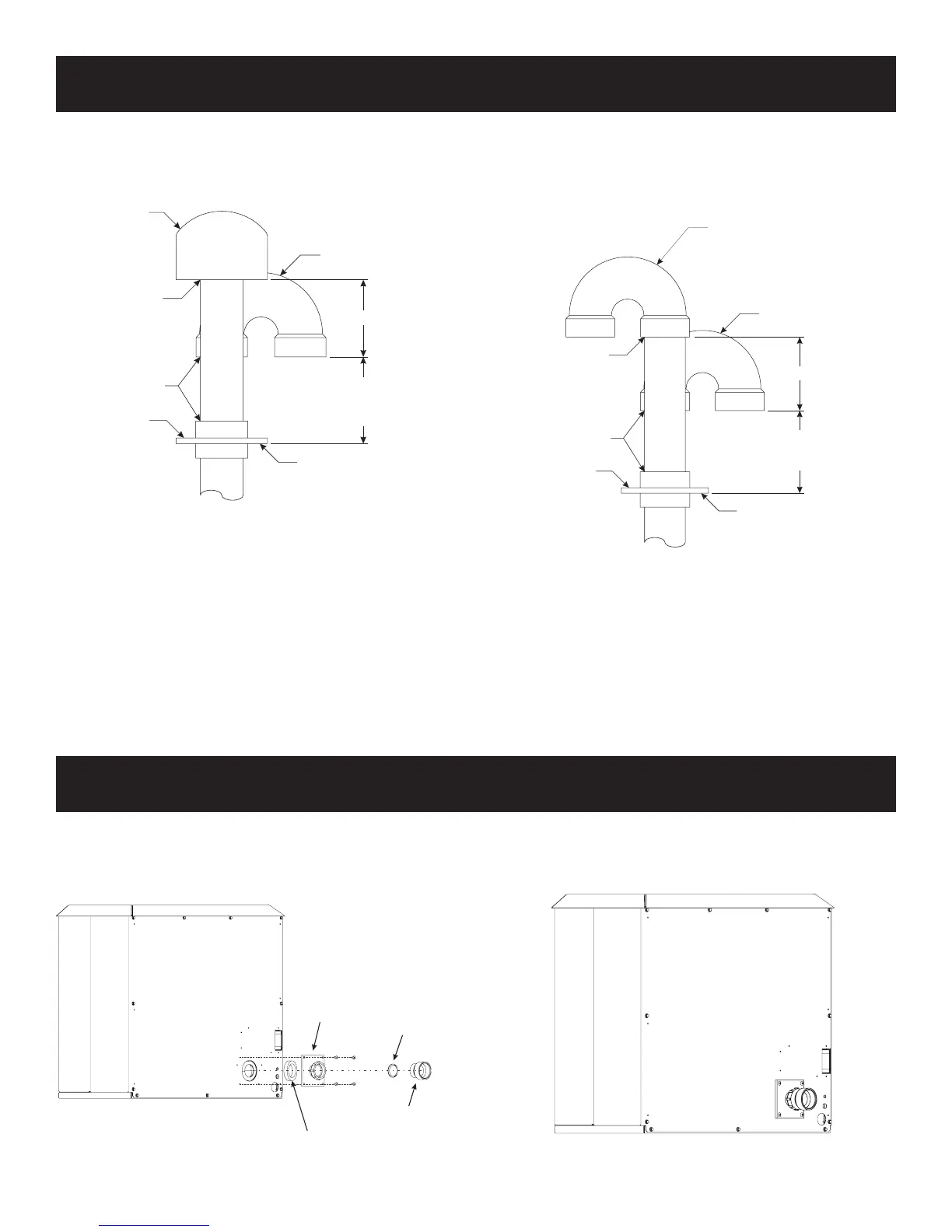

1. Attach the plate to chimney chase, at roof, or outside wall
with four (4) screws. Use outdoor sealant to seal the transition
plate to the surface.
2. Both inlet air pipe and ue exhaust pipe must be 12 inches
from the roof line, and it is recommended to be 12 inches
above the maximum snow line. Also refer to local codes. See
Figures 12 and 13.
3. Attach the ue and inlet air pipes to the transition plate. Use
the appropriate primer and cement to permanently bond the
joints and the pipes to the transition plate.
Figure 12
Figure 13
VENT ADAPTOR KITS
The Vent Adaptor Kits provide a transition from the appliance to
the ue and inlet pipes. Colinear Adaptor (part number PVCA) pro-
vides a transition for the inlet air. When using the ue adapter, use
the appropriate primer and cement to permanently bond the joints
and the pipes. The inlet air pipe does not need to be cemented.
FLUE ADAPTOR
PLASTIC GASKET
INSTALL FOAM GASKET
THREADED CONNECTOR
Figure 15
Figure 14
