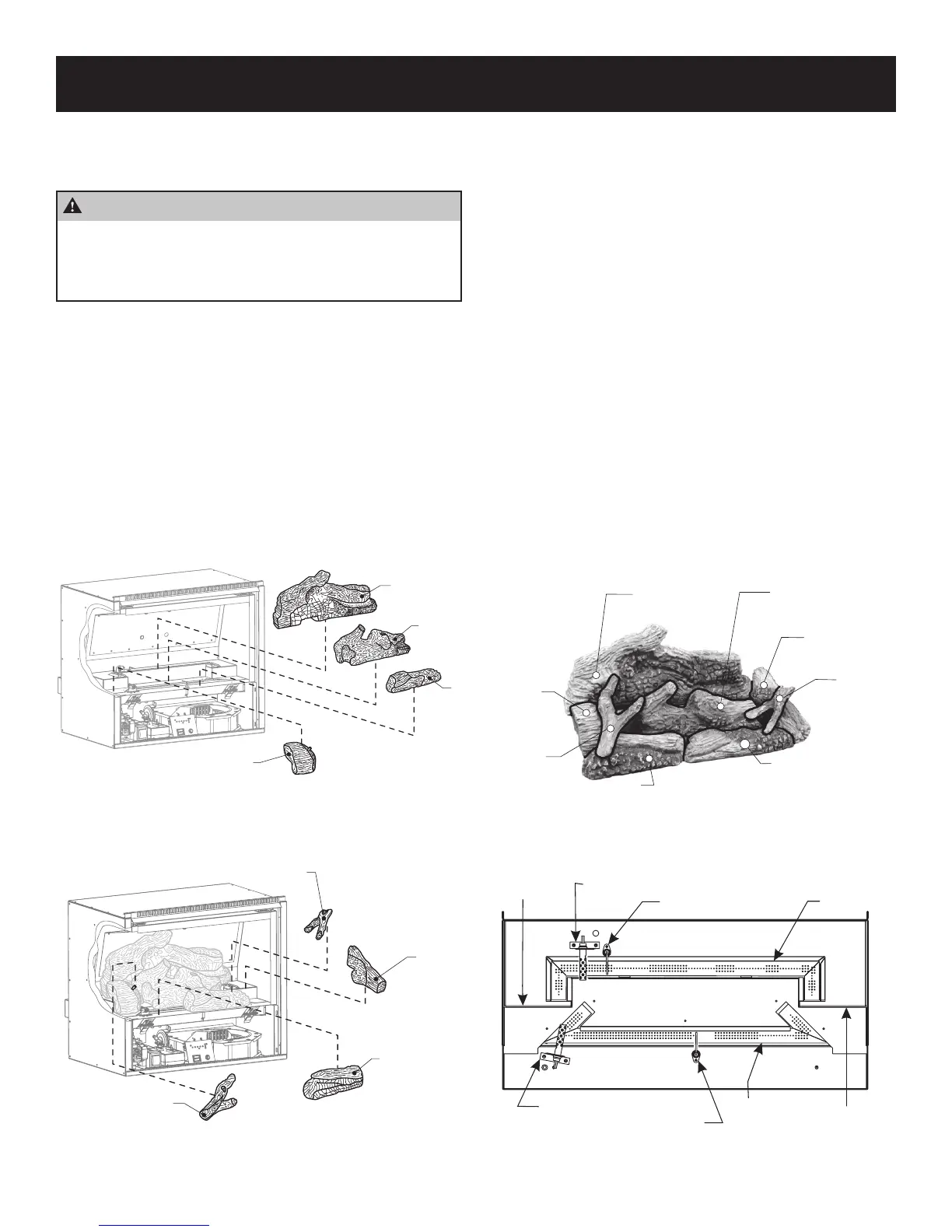

FIREPLACE MANTIS LOG SET INSTALLATION INSTRUCTIONS
Log Installation
Positioning of the logs is critical to the safe and clean operation of
this heater. If the logs are not placed in the proper position, the ap-
pliance can soot, and create an unsafe operating condition.
CAUTION
Do not handle these logs with your bare hands! Al-
ways wear gloves to prevent skin irritation. After han-
dling the logs, wash your hands gently with soap and
water.
Log Placement
1. Place the Rear Log (A) onto the rear log support. The notch
in the Rear Log ts over the rear igniter. The Rear Log (A)
should be all the way to the back of the rebox and as far to
the left side as possible. See Figure 48.
2. Place Left Log (B) on the left rear log support shelf. The
charred portion of the log must face inward. See Figure 48.
3. Place the Middle Log (D) on front log support between the
front and back burners.
4. Place the Front Right Log (F) on the right side of rebox bot-
tom. The notch in the bottom of Front Right Log ts over the
front ame sensor. The log should be positioned fully forward.
See Figure 48.
Log Placement
Figure 49
B
F
D
A
H
C
G
E
Log Placement
Figure 48
5. Place the Front Left Log (E) on left side of the rebox bottom.
The notch in bottom of Front Left Log ts over front Igniter.
The log should be positioned full forward.See Figure 49.
6. Place the Right Log (C) on the right rear log support shelf. The
top of log rests on Rear Log (A) and bottom of log rests on
Firebox bottom. The charred portion of log must face inward.
See Figure 49.
7. Place the Left Top Long Log (G) on the pin on Left Log (B).
The upper left leg of Left Top Log will rest on Rear Log (A).
The upper right leg of Left Top Log will rest on Middle Log
(D).
8. Place the Right Top Long Log (H) on the pin on the Right Log
(C). The bottom left leg of Right Top Log (H) will rest in the
indentation on the right side of the Middle Log (D). The bottom
right leg of the Right Top Log (H) will rest in the indentation in
the Front Right Log (F).
9. Verify that the logs are not in contact with the ame sensor.
Interference with the ame sensor will effect the operation.
Firebox Layout
Figure 51
REAR LOG SUPPORT
FRONT LOG SUPPORT
FIREBOX BOTTOM
REAR HOT SURFACE IGNITOR
REAR FLAME SENSOR
REAR BURNER
RIGHT REAR
LOG SUPPORT
SHELF
FRONT BURNER
FRONT FLAME SENSOR
FRONT HOT SURFACE IGNITOR
LEFT REAR
LOG SUPPORT
SHELF
A
Rear Log
B
Left Log
C
Right Log
D
Middle Log
E
Front Left Log
F
Front Right Log
G
Left Top Log
H
Right Top Log
Log Assembly
Figure 50
