Empire Mantis BF28BM-5 - Fireplace Mantis Specifications

28743-0-0711 Page 23

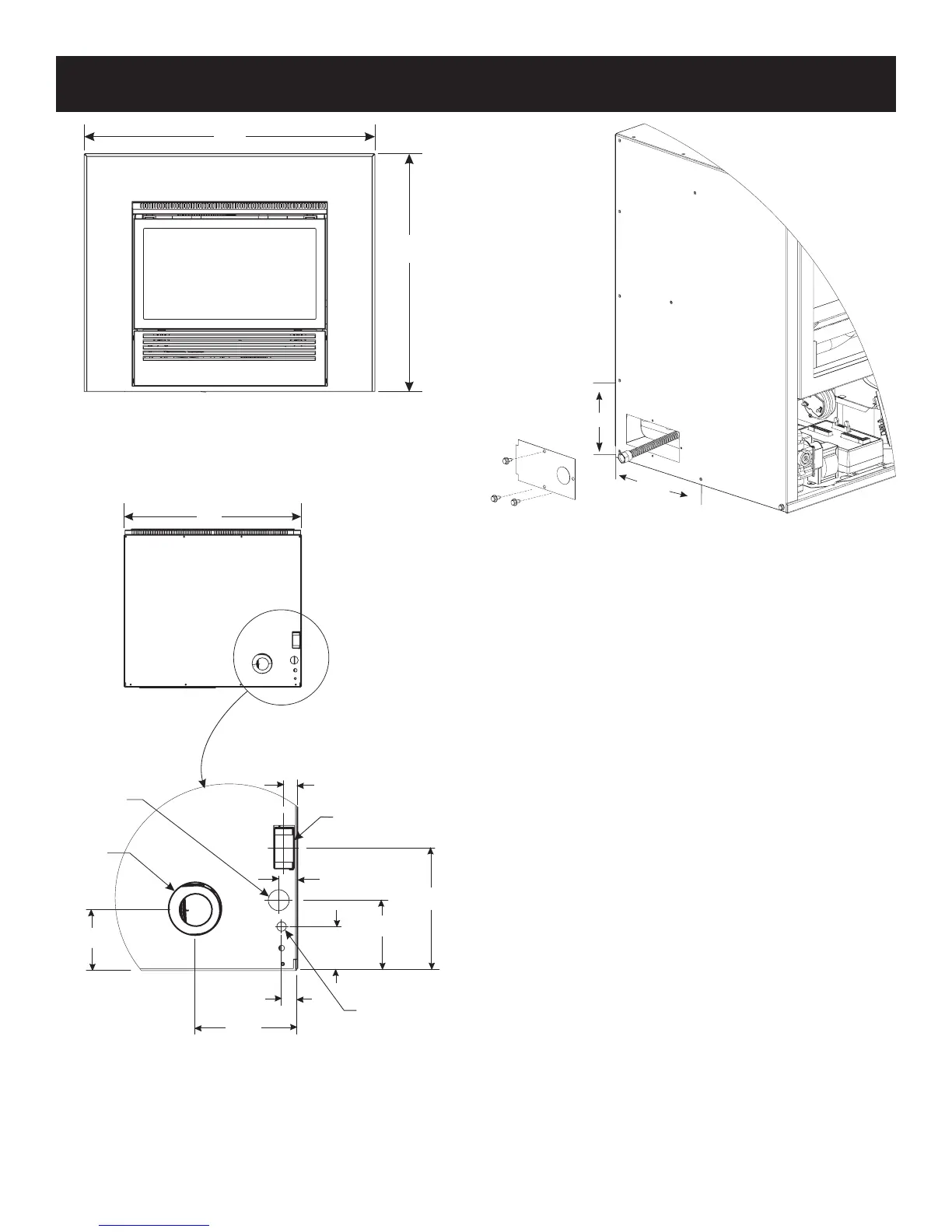

FIREPLACE MANTIS SPECIFICATIONS
38”
30-7/8”
FLUE
OUTLET
AIR INLET
ELECTRIC
CORD
FLEX HOSE
OPENING
1-1/8”
7-5/16”
4-3/16”
2-5/8”
6-1/8”
3-9/16”
13/16”
1”
28”
Heater - 38 Inch Surround
FIK28(BL,CM,HP,SS) - Contains surround, hood, & lower front
Figure 37
Figure 38
4”
8”
Figure 39
Clearance for Access Panel In-Wall Units
See Gas Connection Instructions.
