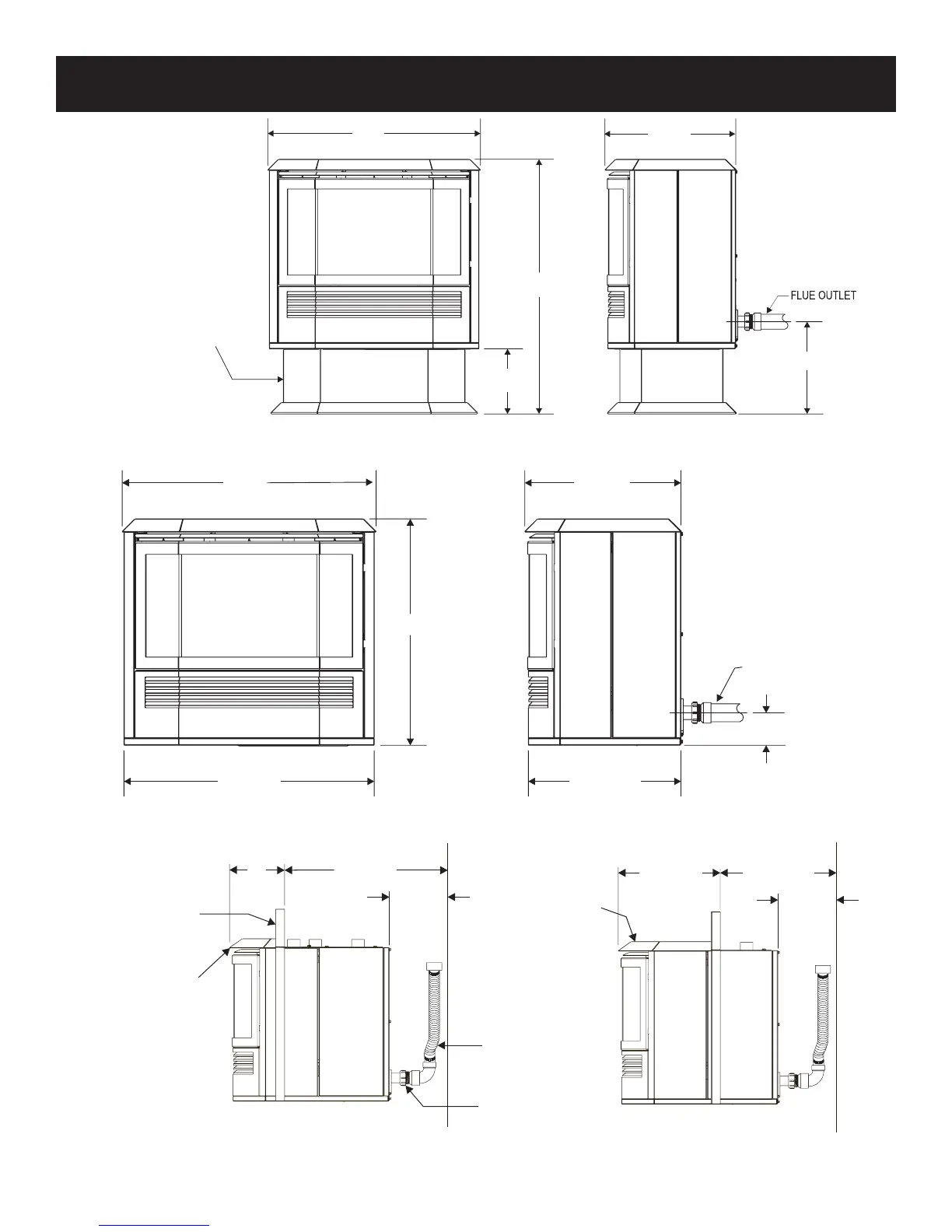

BAY WINDOW MANTIS SPECIFICATIONS
28”
33-3/4”
8-5/8”
17-5/8”
12-1/4”
OPTIONAL PEDESTAL
(MUST BE INSTALLED ON
HEATER PRIOR TO APPLIANCE
INSTALLATION)
Heater with Pedestal and Single Flue Adaptor
Figure 27
28”
25-1/4”
27-3/4”
FLUE OUTLET
16-15/16”
17-5/8”
3-9/16” (9.0cm)
Heater without pedestal
Figure 28
6”
17-13/16”
6-1/2”
PVE-1 or PVE-2
(SURROUND)
PVVK-CFA
FLEX VENT
PVVK-SH
VENT ADAPTOR
11-3/32”
12-3/4”
6-1/2”
PV-4H
(SHORTTOP
COVER KIT)
PV-2H
(SLIM TOP
COVER KIT)
Heater with Slim and Short Top Cover Kits and Flex Kits.
Figure 29
