Empire Mantis BF28BM-5 - Fireplace Mantis Clearance to Combustibles

28743-0-0711 Page 19

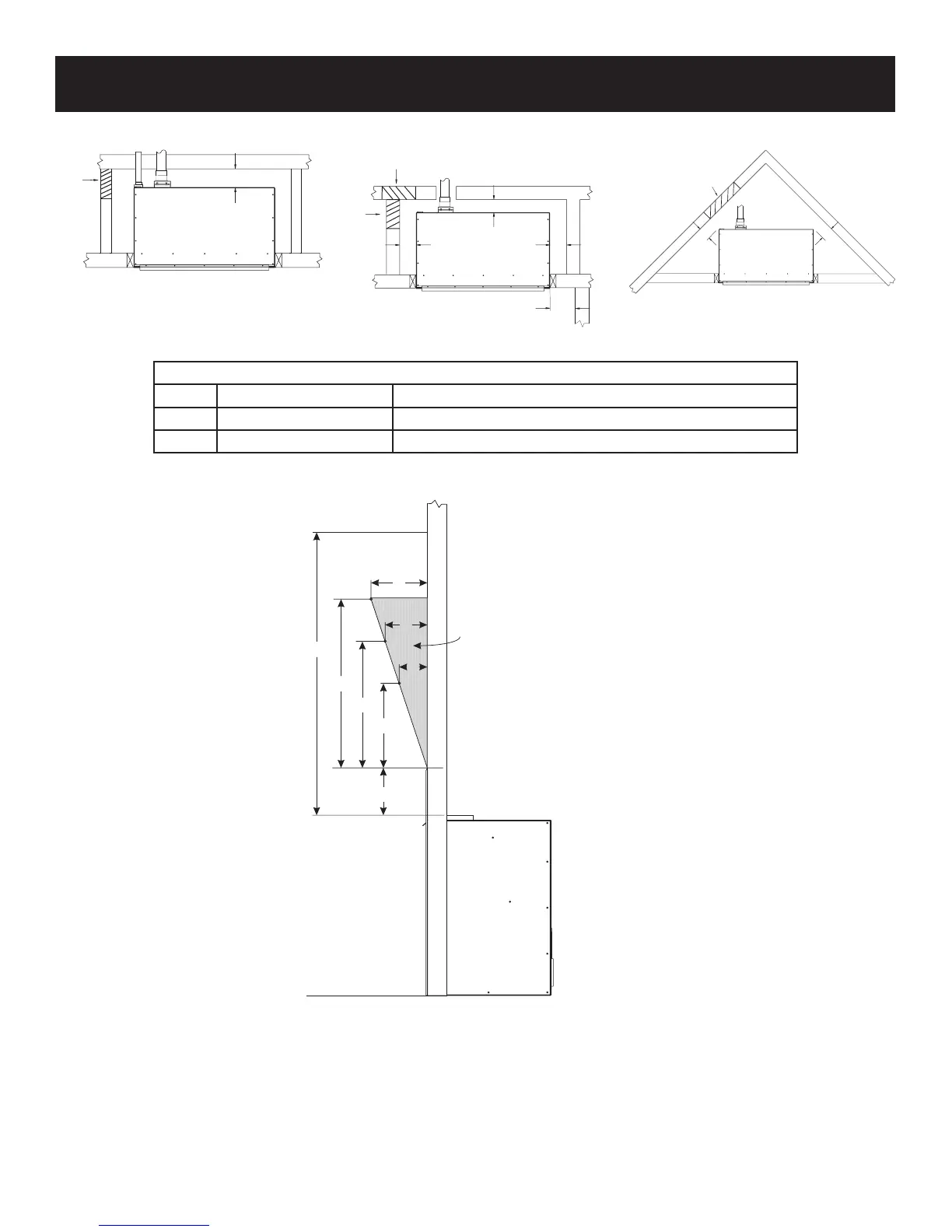

FIREPLACE MANTIS CLEARANCE TO COMBUSTIBLES
Insert Clearances
A Rear Wall to Heater 2” (1-1/4” for coaxial venting)
B Side Wall to Heater 0”
C Corner Installation 0”
Note: The Mantis Power-Vent High-Efciency Fireplace has been tested and approved for zero clearance to combustible materials. It
is recommended that clearances as listed above should be maintained to allow for removal of the product for servicing.
Figure 23 Figure 25
Mantel and Ceiling Clearances
Figure 26
A
BB
6-1/4”
MIN
ACCESS
PANEL
ACCESS
PANEL
Figure 24
12”
18”
24”
8”
6”
4”
COMBUSTIBLE TRIM AND MANTELS
ALLOWED IN SHADED AREA
44-3/4”
CEILING
4-3/4”
A
ACCESS
PANEL
C
C
ACCESS
PANEL
