Encore ENHWI-G3 User Manual

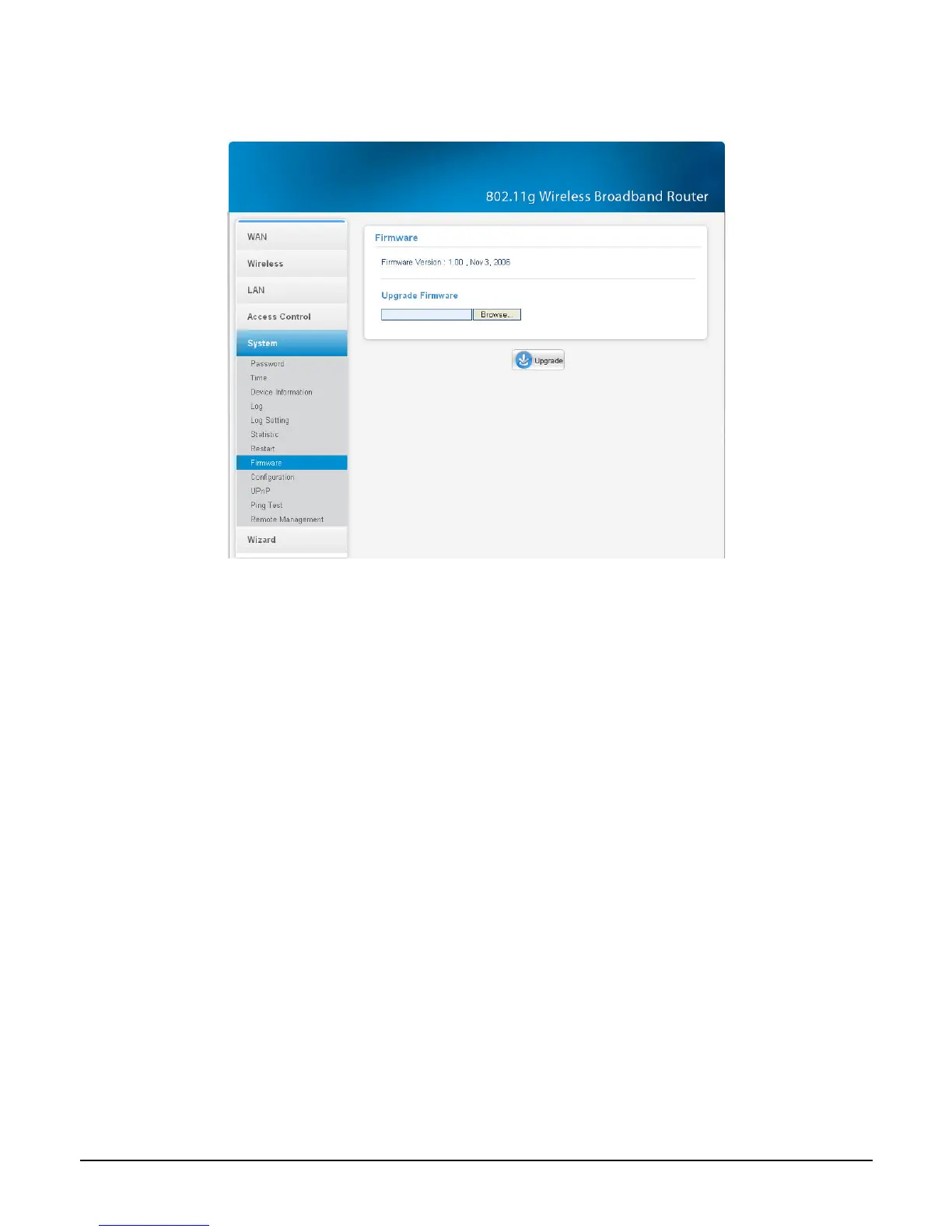

Firmware
This function enables users to keep the WLAN Router firmware up to date.
Figure 66.
Please follow the below instructions:
Download the latest firmware from the manufacturer's Web site, and save it to disk.
Click “Browse” and go to the location of the downloaded firmware file.
Select the file and click “Upgrade” to update the firmware to the latest release.
50

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
