Cerabar PMC11, PMC21, PMP11, PMP21, PMP23 Operation options
Endress+Hauser 25
7.1.5 Commissioning
NOTICE
Risk of injury from the uncontrolled activation of processes!
‣
Ensure that no uncontrolled processes are activated in the system.
Configuring the menu items

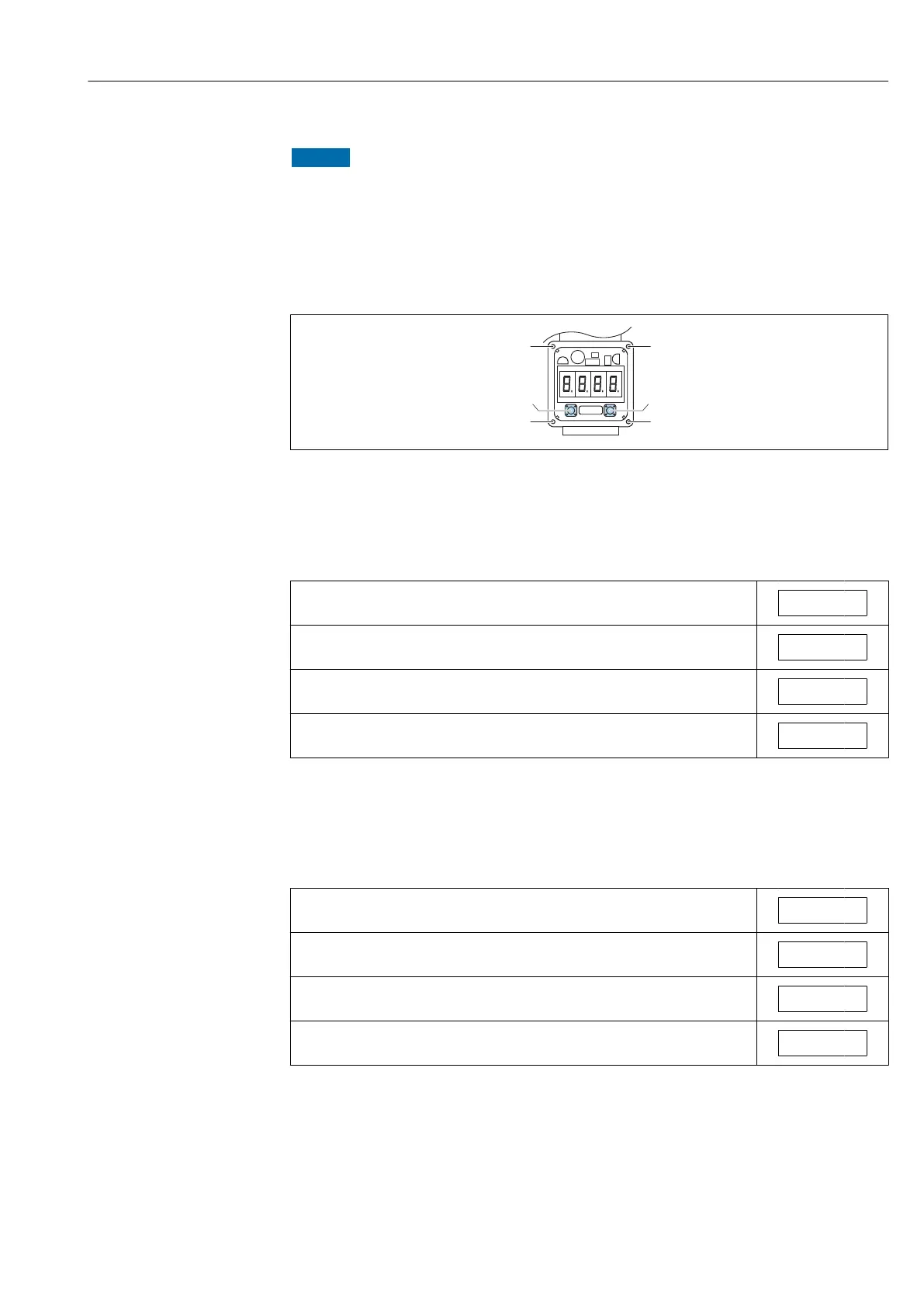

To configure the menu items, loosen the 4 Phillips screws (1) on the display and remove
the cover.
A0022209
A Move down and select the items
B Move up and select the items
A+B Select the item to configure or acknowledge the setting
Setting the decimal point
Press the B key until "dP" is displayed.
d P
Press A+B to set the decimal point:
- - - . -
Press B or A for up or down:
- - . - -
Press A+B to quit the setting function and to go to the "dP" menu item.
d P
Out of range setting
Message if signal is below 4 mA or above 20 mA:
• "HI" message = over range
• "LO" message = below range
Press the B key until "HILO" is displayed.
H I L O
Press A+B for the setting function (message inactive):
o F F
Press B or A for up or down (message active):
o n
Press A+B to quit the setting function and to go to the "HILO" menu item.
H I L O
Please note: If the "HILO" message is not active, the error "Er06" is displayed if the display
range (-1999 to +9999) is exceeded.
Changing to the measuring mode
Depending on the menu item selected, press key A or B between 1 and 8 times.
