Operation options Deltabar PMD78B PROFINET with Ethernet-APL
36 Endress+Hauser
7.4 local display
7.4.1 Device display (optional)
Functions:
• Display of measured values and fault and notice messages
• Background lighting, which switches from green to red in the event of an error
• The device display can be removed for easier operation
• In the dual compartment, L-form housing, the device display fits into both housing parts
(top and side).
The device displays are available with the additional option of Bluetooth® wireless
technology.
1
4 5
6
7 8
2
3
A0047143

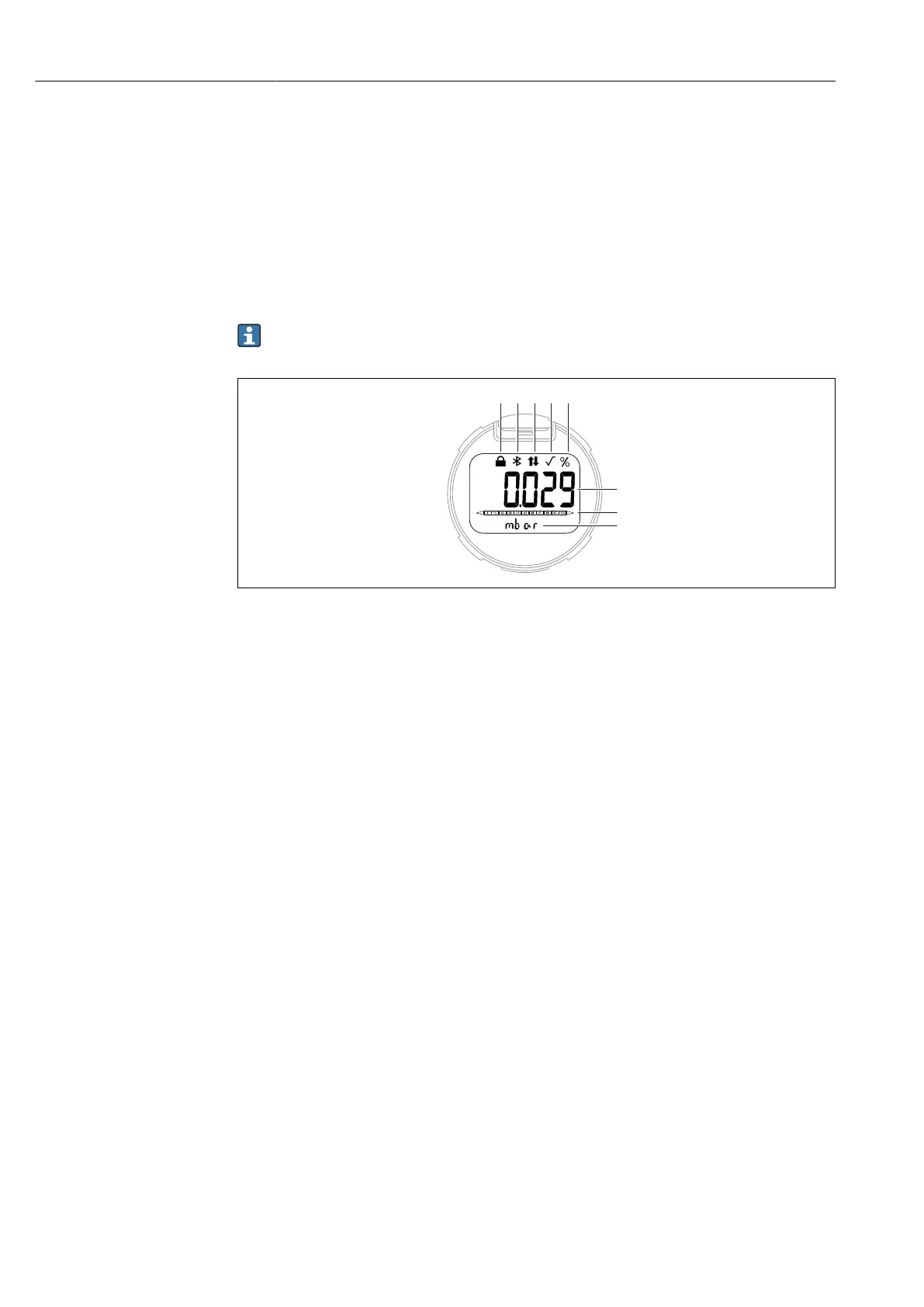

 3 Segment display
1 Measured value (up to 5 digits)
2 Bar graph (not for PROFINET with Ethernet-APL)
3 Unit of measured value
4 Locked (symbol appears when the device is locked)
5 Bluetooth (symbol flashes if Bluetooth connection is active)
6 communication via PROFINET is active
7 Has no function in the case of PROFINET with Ethernet-APL
8 Measured value output in %
The following graphics are examples. The display depends on the display settings.
