Endress+Hauser Deltabar PMD78B - Local Display Diagnostic Information

Deltabar PMD78B PROFINET with Ethernet-APL Diagnostics and troubleshooting
Endress+Hauser 67
11.3 Diagnostic information on local display
11.3.1 Diagnostic message

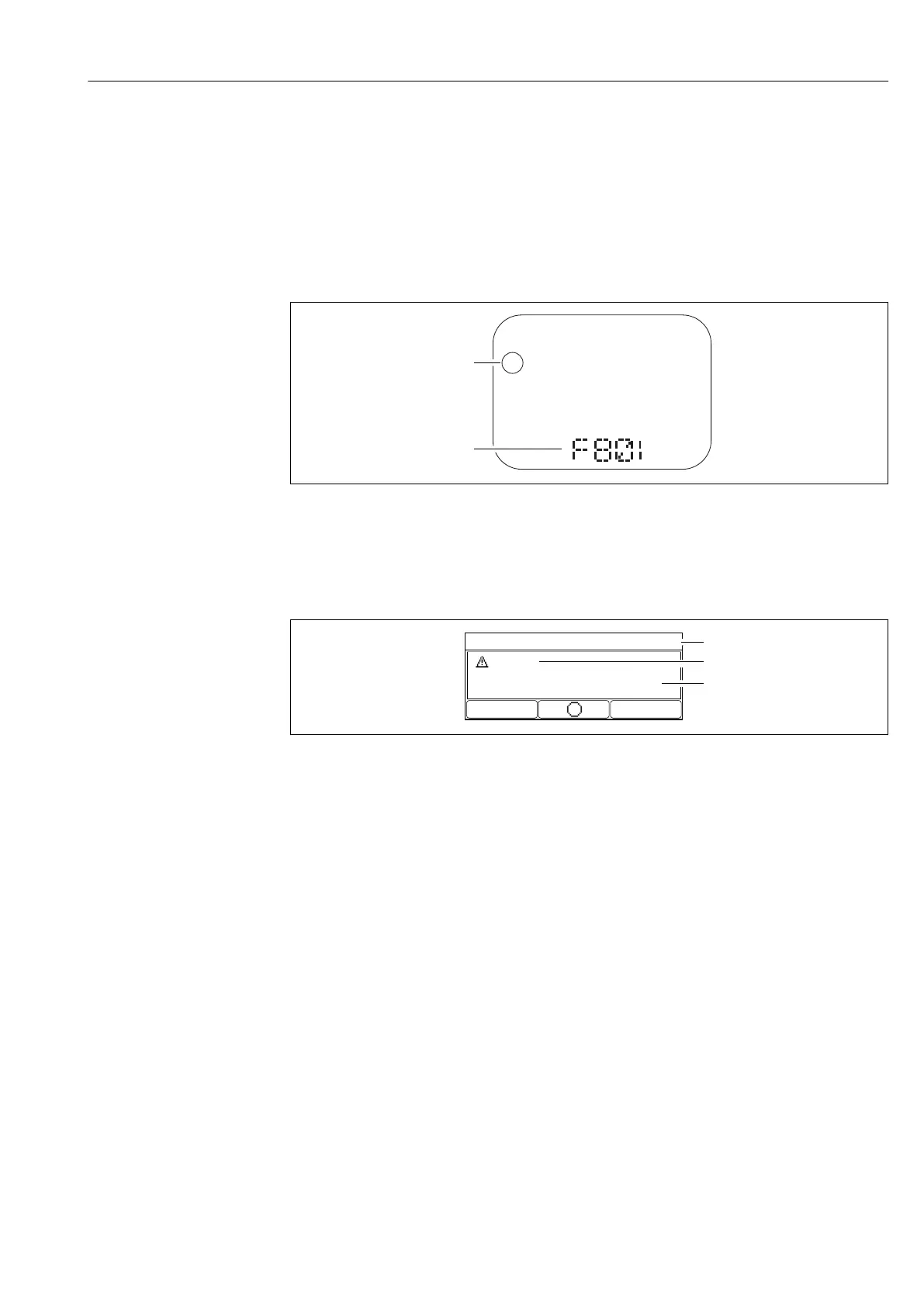

Measured value display and diagnostic message in alarm condition
Faults detected by the device's self-monitoring system are displayed as a diagnostic
message in alternation with the unit.
X
1
2
A0043759
1 Status signal
2 Status symbol with diagnostic event
Faults detected by the device's self-monitoring system are displayed as a diagnostic
message in alternation with the measured value display.
3
2
1
X X X X X X XX X
X X X X X X XX X
S
i
S801
A0043103
1 Status signal
2 Status symbol with diagnostic event
3 Event text
Status signals
F
"Failure (F)" option
A device error has occurred. The measured value is no longer valid.
C
"Function check (C)" option
The device is in the service mode (e.g. during a simulation).
S
"Out of specification (S)" option
The device is being operated:
• Outside of its technical specifications (e.g. during startup or a cleaning)
• Outside of the configuration performed by the user (e.g. level outside configured span)
M
"Maintenance required (M)" option
Maintenance required. The measured value remains valid.
