Endress+Hauser Deltabar PMD78B User Manual

Deltabar PMD78B PROFINET with Ethernet-APL Commissioning
Endress+Hauser 59
9.7.5 Linearization

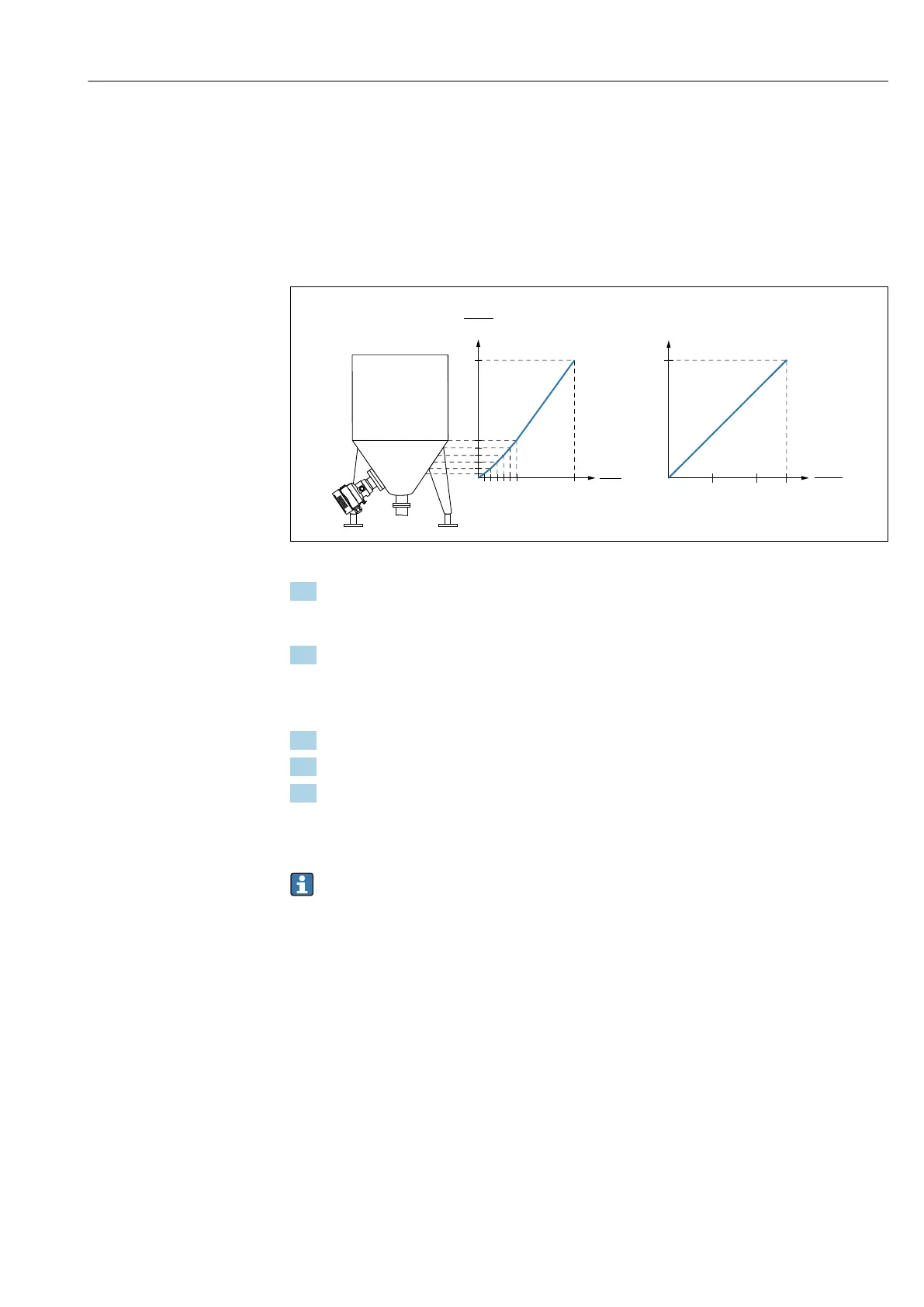

In the following example, the volume in a tank with a conical outlet should be measured in
m
3
.
Prerequisites:
• Points for linearization table are known
• Level calibration is performed
• Linearization characteristic must continually increase or decrease
h
[m]
0
0 3.0
3.5
V
[m
3
]
V
[m ]
3
100
%
0
0
3.5
A0046625
1. The scaled variable is communicated via PROFINET in the "Analog Input Scaled
Variable" module in slot 20 (0x1000). To use a linearized value, use the "Analog Input
Scaled Variable" module.
2. The linearization table can be opened via the Go to linearization table parameter
Table option.
 Menu path: Application → Sensor → Scaled variable → Scaled variable transfer
function
3. Enter the desired table values.
4. The table is activated once all the points in the table have been entered.
5. Activate the table via the Activate table parameter.
Result:
The measured value after linearization is displayed.
• Error message F435 "Linearization" and the alarm current appear as long as the
table is being entered and until the table is activated
• The 0% value is defined by the smallest point in the table
The 100% value is defined by the largest point in the table
9.8 "Simulation" submenu
With the Simulation submenu, the pressure and diagnostic events can be simulated.
Menu path: Diagnostics → Simulation
