Operation options Deltabar PMD78B PROFINET with Ethernet-APL
40 Endress+Hauser
Call up the website via the computer in the network. The IP address of the device must be
known.
The IP address can be assigned to the device in a variety of ways:
• Dynamic Configuration Protocol (DCP), factory setting
The automation system (e.g. Siemens S7) automatically assigns the IP address to the
device
• Software addressing
The IP address is entered via the IP address parameter
• DIP switch for service
The device then has the fixed IP address 192.168.1.212
The IP address can now be used to establish the connection to the network
The default setting is that the device uses the Dynamic Configuration Protocol (DCP). The
automation system (e.g. Siemens S7) automatically assigns the IP of the device.
Starting the web browser and logging in
1. Start the web browser on the computer.
2. Enter the IP address of the web server in the address line of the web browser:
192.168.1.212

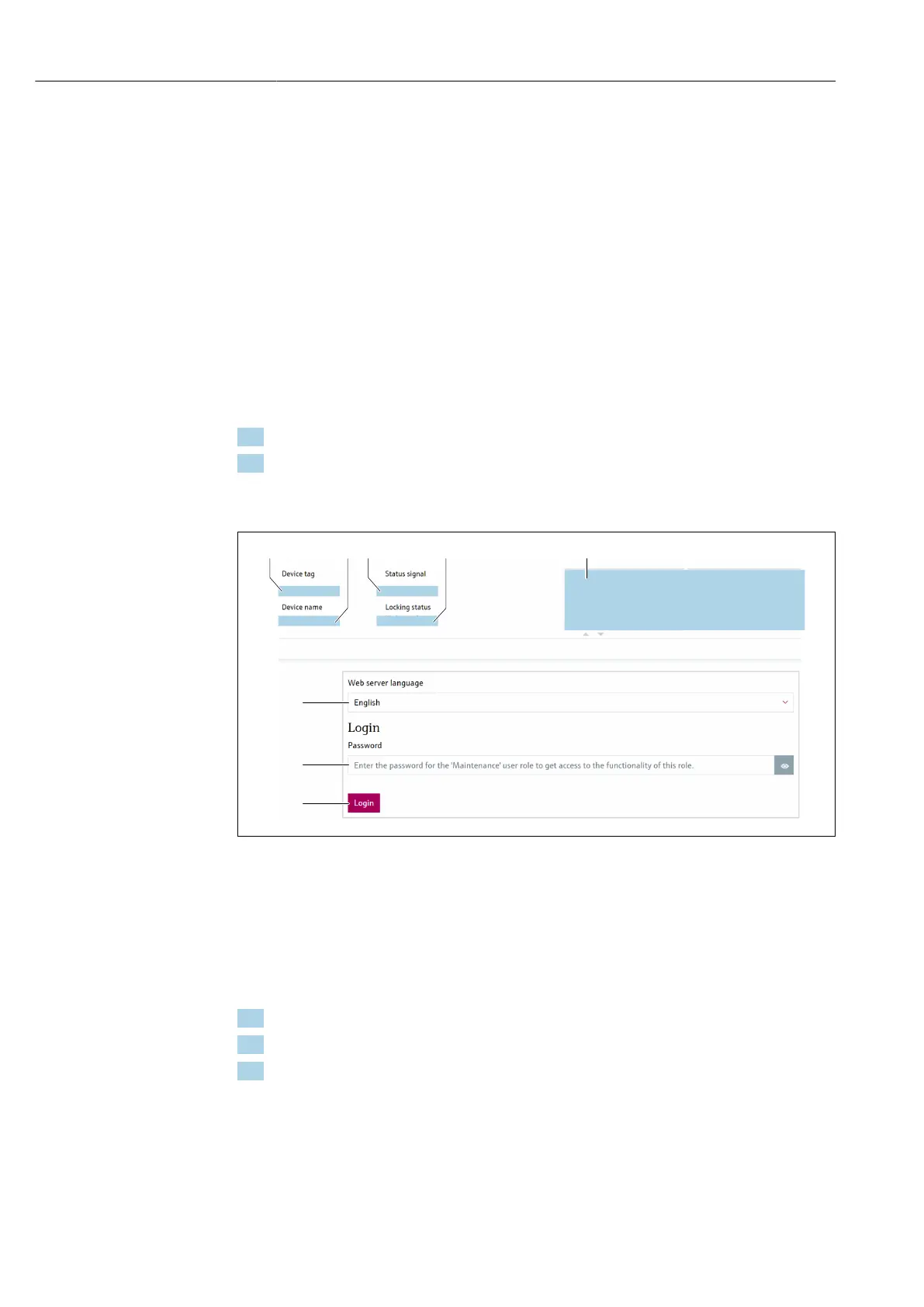

 The login page appears.
6
7
8
51 32 4
A0046626
1 Device tag
2 Device name
3 Status signal
4 Locking status
5 Current measured values
6 Select language
7 Enter the "Password" parameter
8 Login
1. Select the preferred Language parameter for the web browser.
2. Enter the Password parameter.
3. Confirm entry with Login .
