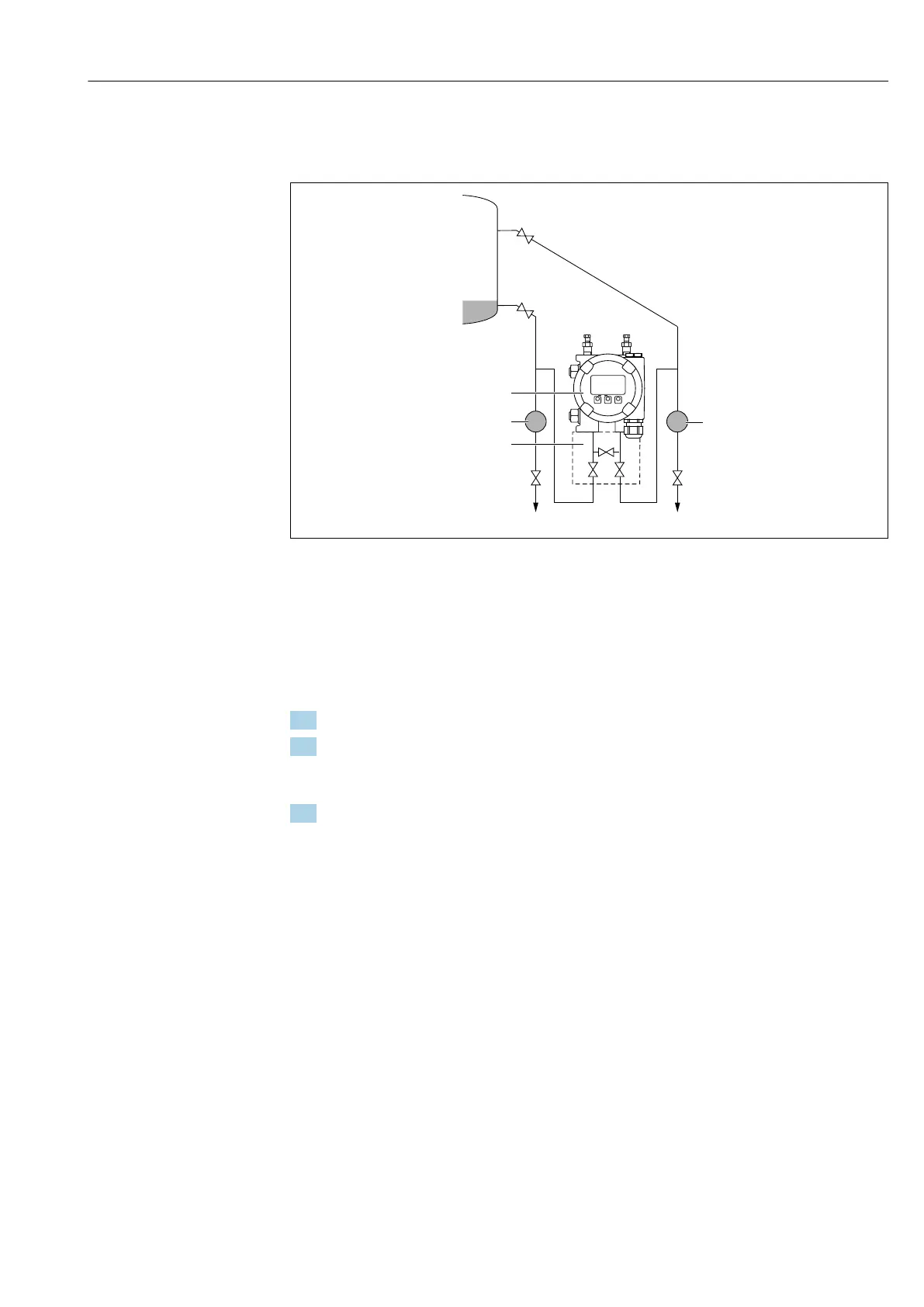

Closed vessel
Before adjusting the device, the piping may need to be cleaned and filled with medium.
B
A
II
I II
I II
I
1 5
+
–
–
P2
+
P1
6
7
3
2 4
ESC
-
+ E
A0030039
I Device
II Three-valve manifold
III Separator
1, 5 Drain valves
2, 4 Inlet valves
3 Equalization valve
6, 7 Vent valves on device
A, B Shutoff valves
1. Fill the vessel to above the lower tapping point.
2. Fill the measuring system with medium.
 Close 3 (separate high-pressure side and low-pressure side).
Open A and B (shutoff valves).
3. Vent high-pressure side (empty low-pressure side if necessary).
 Open 2 and 4 (introduce fluid on high-pressure side).
Open 6 until the system (piping, valve and side flange) is completely filled with
medium.
Open 7 until the system (piping, valve and side flange) is completely empty.
