Commissioning
34
Submenu:
Display
Various general settings for the measured value display, e.g. grid etc.

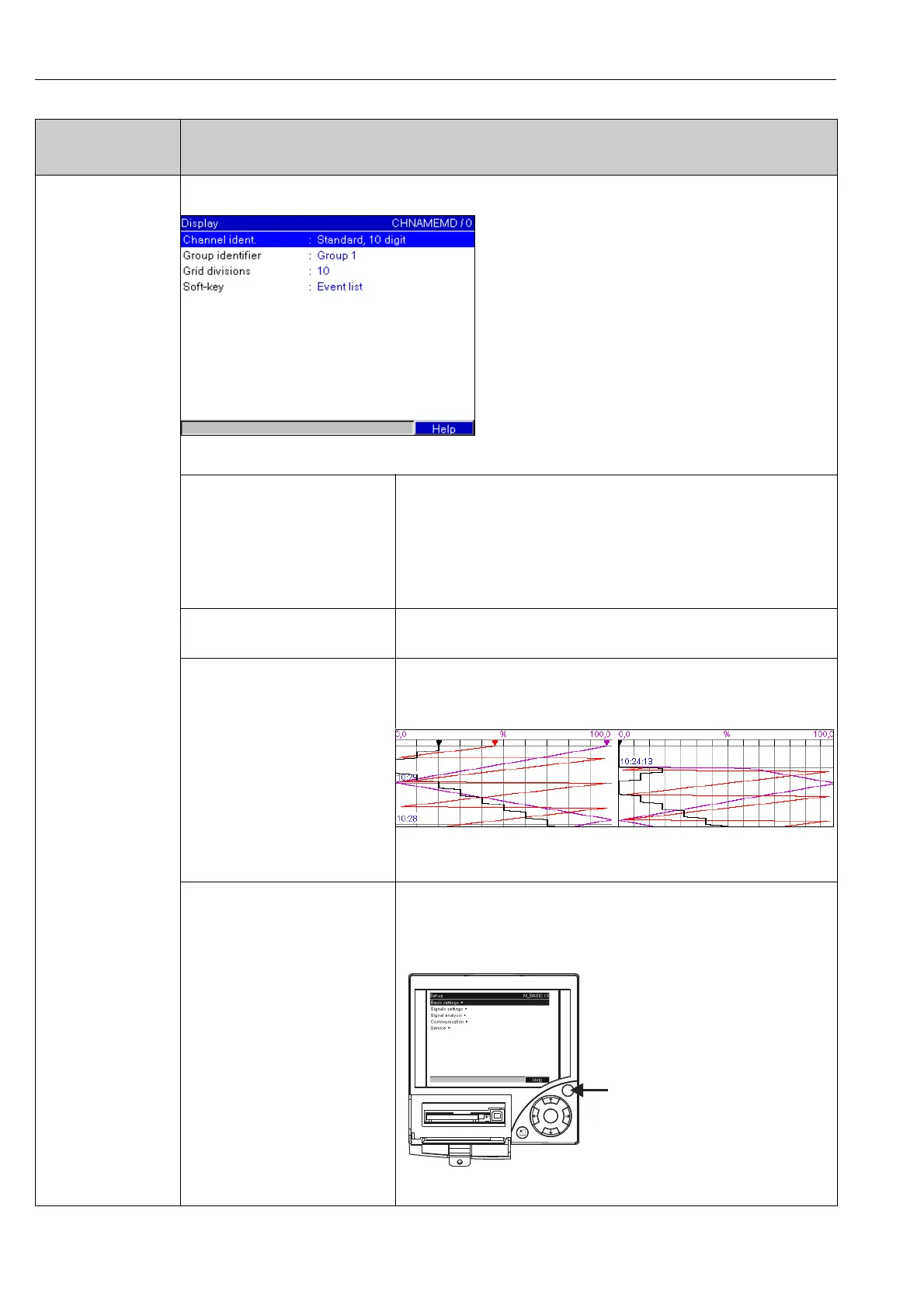

Fig. 23: Set up, Basic settings, "Display" submenu
Channel ident. "Standard, 10 digit"
"With add. channel info.": enables entry of additional 13-character information text per
channel. This means that the channel identifier can be supplemented with, for example
individual tag numbers (e.g.: power station tag systems).
!
Note!
In normal operation, the additional information can be listed along with the 10-digit
channel identifier at "Main Menu -> Signal display -> Measurement point identifier".
Group identifier Group identifier which is used by the provided PC software. A 10-digit text can be
entered here. Factory setting: Group 1
Grid divisions Indicates the number of lines ("amplitude grid") that should be displayed on the screen
in the display mode "Curve". Example: display of 0 ... 100%: select 10 divisions, display
0 ... 14pH: select 14 divisions. Picklist: 1 to 20 (10)
Fig. 24: Grid divisions setting: example on left, 10 divisions, example on right, 14
divisions
Soft-key Please select the function for the softkey in the measured value display mode. Factory
setting: Event list
!
Note!
In the set up mode the softkey is always occupied with the integrated Help function!
Abb. 25: Variable "Soft-key"
"Basic settings"
menu items
Configurable parameters
(Factory settings bold marked)
