Commissioning
44
"Signal Settings"
menu items
Configurable parameters
(factory settings are highlighted in bold)
Submenu:
Digital Inputs
Setting up only required if the digital inputs (e.g. events) are to be used.
View or change the settings for the selected digital channel.

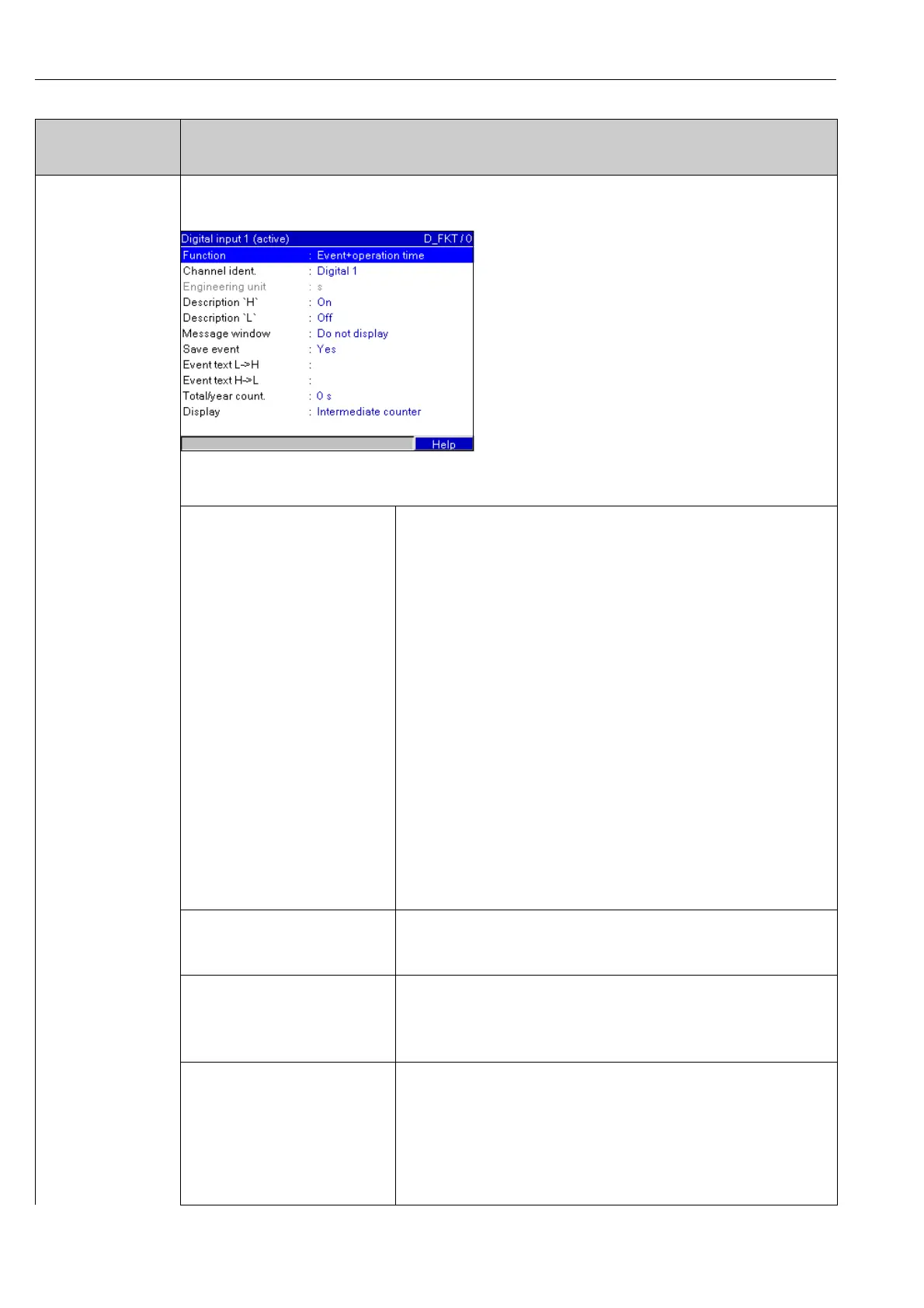

Fig. 30: Setup, Signal Settings,
"Digital Input 1" submenu
Function Select the required function. Digital inputs are High active; this means the described
effect is achieved by a high input.
Low = -3 to +5 V, High = +12 to +30 V
!
Note!
Depending on the selected function, the unit's user interface adapts itself, so that each
time only parameters that are required for safe unit functioning have to be checked/set.
The following functions are available:
"Switched Off": digital input is not active.
"Control Input": various control functions can be activated using the digital input.
"On/Off Event": switch conditions of connected units (e.g. pump on/off) are displayed
and stored.
"Pulse Counter": pulses are added up and stored as numeric counter values.
"Operational Time": running times of external units are recorded e.g. for maintenance
purposes.
Example: if the daily running time of a pump is to be saved, activate "Operational Time"
here and "Daily Analysis" under "Signal Analysis".
"Event+Operation Time":
both the on/off events and the operating time of an external unit are recorded and
stored.
Channel Ident. Measurement point name (e.g. "Pump") or description of the function of this input (e.g.
"Fault message"). 10-character entry.
Factory setting: digital 1
Additional Info.
!
Note!
Only available if switched on in the basic
settings.
Additional information on channel identifier, e.g. the respective measurement point tag
number (example: tag numbers in power stations). In normal operation, the additional
information can be listed along with the 10-digit channel identifier at "Main Menu ->
Signal display -> Measurement point identifier". 13-character entry.
Action
Only for "Control Input"
Set up the function of the control input.
"Start Recording": data are displayed/stored only if the input is active.
"Screensaver On": display is switched off so long as the input is active.
"Ext. Inter. Analysis": starts and ends the external intermediate analysis (the analysis
progresses as long as the input is active).
"Set Up Lock": setup cannot be changed as long as the input is active.
"Time Synchronization": rounds off the current time to a full minute, rounding off to the
higher minute if >= 30s and to the lower minute if <30s.
