Commissioning
47
LV Messages "Display+Acknowledge": message - with date, time, measurement point with alarm set
point or event text LV on/off - must be acknowledged.
!
Note!
The screensaver is
automatically disabled in the event of a limit value message!
"Do Not Display": alarm condition is displayed by measurement point ident. with red
background.
Save Event Stores a message in the event memory on limit value violation. Picklist: No, Yes
Event Text LV On If the event of a limit value, this text (including date and time) is shown on the display
or stored in the event list. Only available when "LV Messages" is set to "Display +
Acknowledge" or "Save Event" is set to "Yes". 22-character entry.
Event Text LV Off
Only for "Analog Input x" with "Upper
or Lower Set Point"
When returning from the limit value to normal operation, this text (including date and
time) is shown on the display or stored in the event list. Only available when "LV
Messages" is set to "Display + Acknowledge" or "Save Event" is set to "Yes". 22-character
entry.
Save Cycle Normal: save in normal save cycle.
"Alarm Cycle":
fast storage during an alarm violation, e.g. every second. Attention: requires higher
memory capacity!
Save cycles are set up in the menu "Basic Settings".
Copy Settings Copies the setup of the actual alarm set point into the selected alarm set points.
Picklist: No, In Set Point x
Submenu:
Relay
Various relay settings (e.g. operation mode)

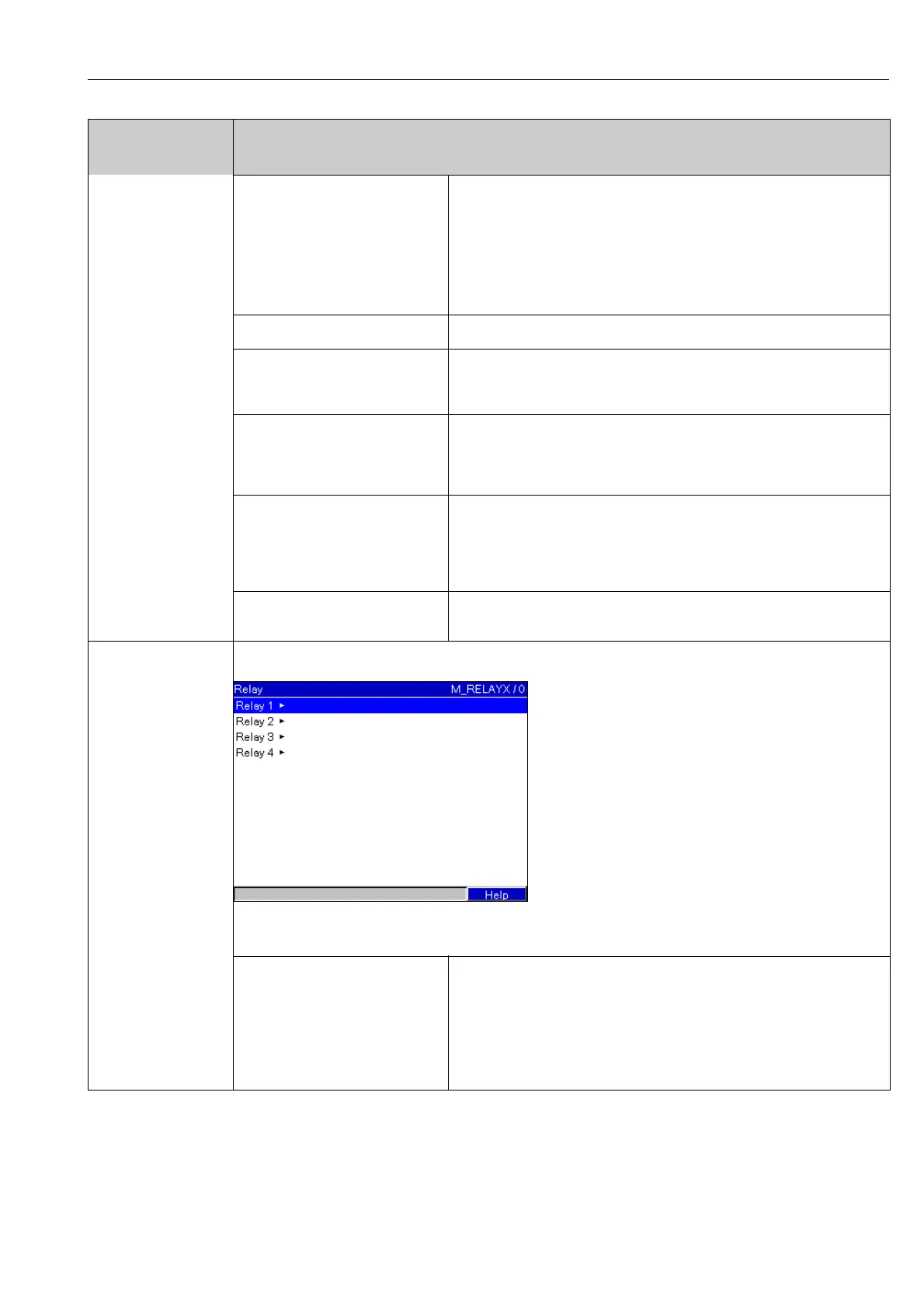

Fig. 32: Setup, Signal Settings,
"Relay" submenu
Submenu:
Relay x,
Setup for the selected relay:
"Terminals": shows the relay terminal number
"Operating Mode": relay function in alarm condition:
"Opening": the relay is closed in the rest condition. In the event of a violation it opens.
"Closing": the relay is open in the rest condition. In the event of a violation it closes.
!
Note!
Relay 1 has changeover contacts.
"Signal Settings"
menu items
Configurable parameters
(factory settings are highlighted in bold)
