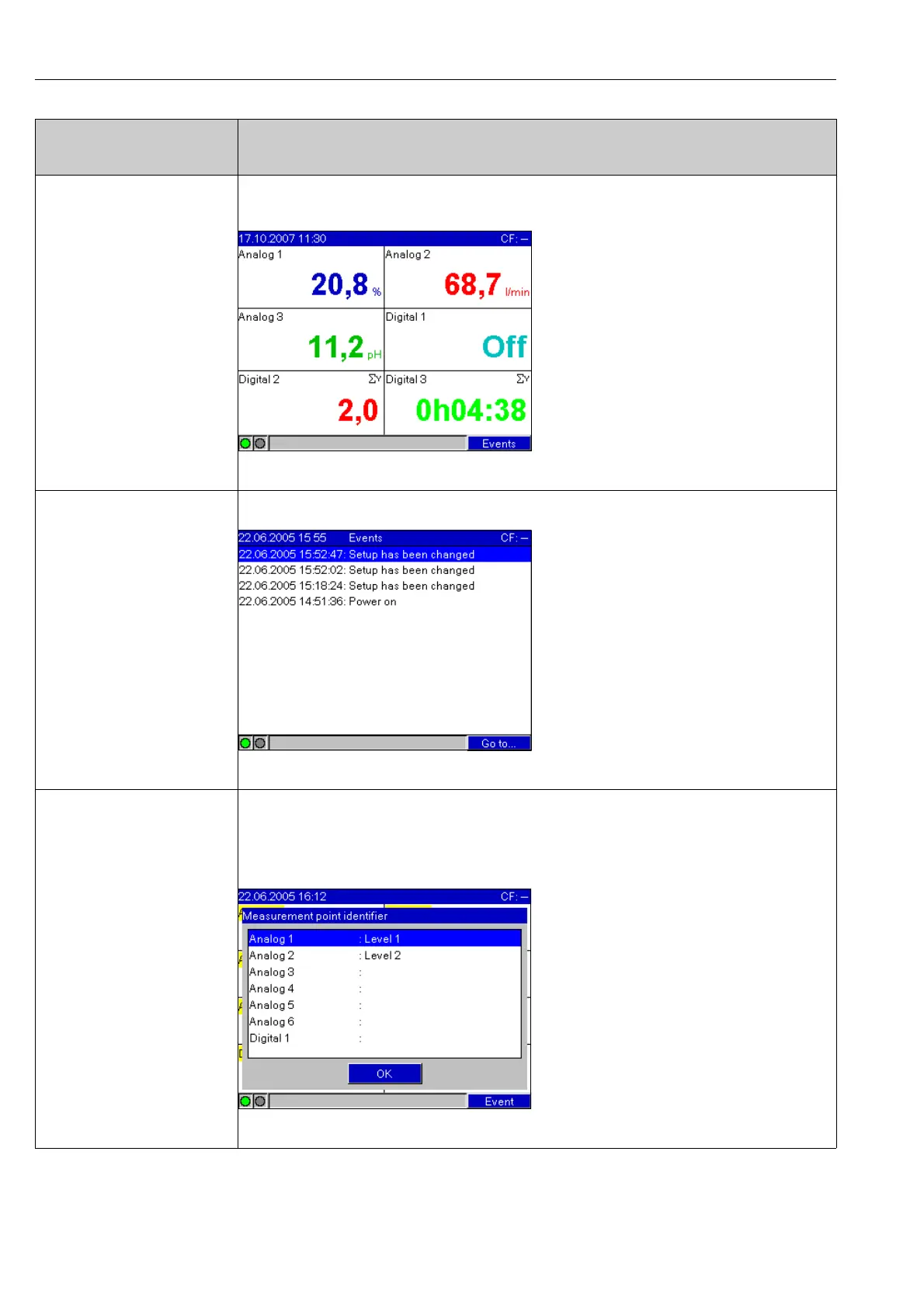

Digital display Display of the active analog measured values as digital values. The digital input is displayed as a status or counter/
operating time counter.
Fig. 46: "Digital display" signal display
Events Events such as alarm set point infringement and power failure are listed in the correct time sequence.
Fig. 47: "Events" signal display
Measurement point identifier Listing of the 10-character channel identifier together with additional 13-character information text (e.g. additional
measurement tag numbers, identification system in power stations etc.).
!
Note!
Only visible if "With add. channel info" is selected under "Set up - Basic settings - Display - Channel ident.".
Fig. 48: "Measurement point identifier" signal display
"Signal display" menu
