Liquisys M CPM223/253 Repair
Endress+Hauser 93

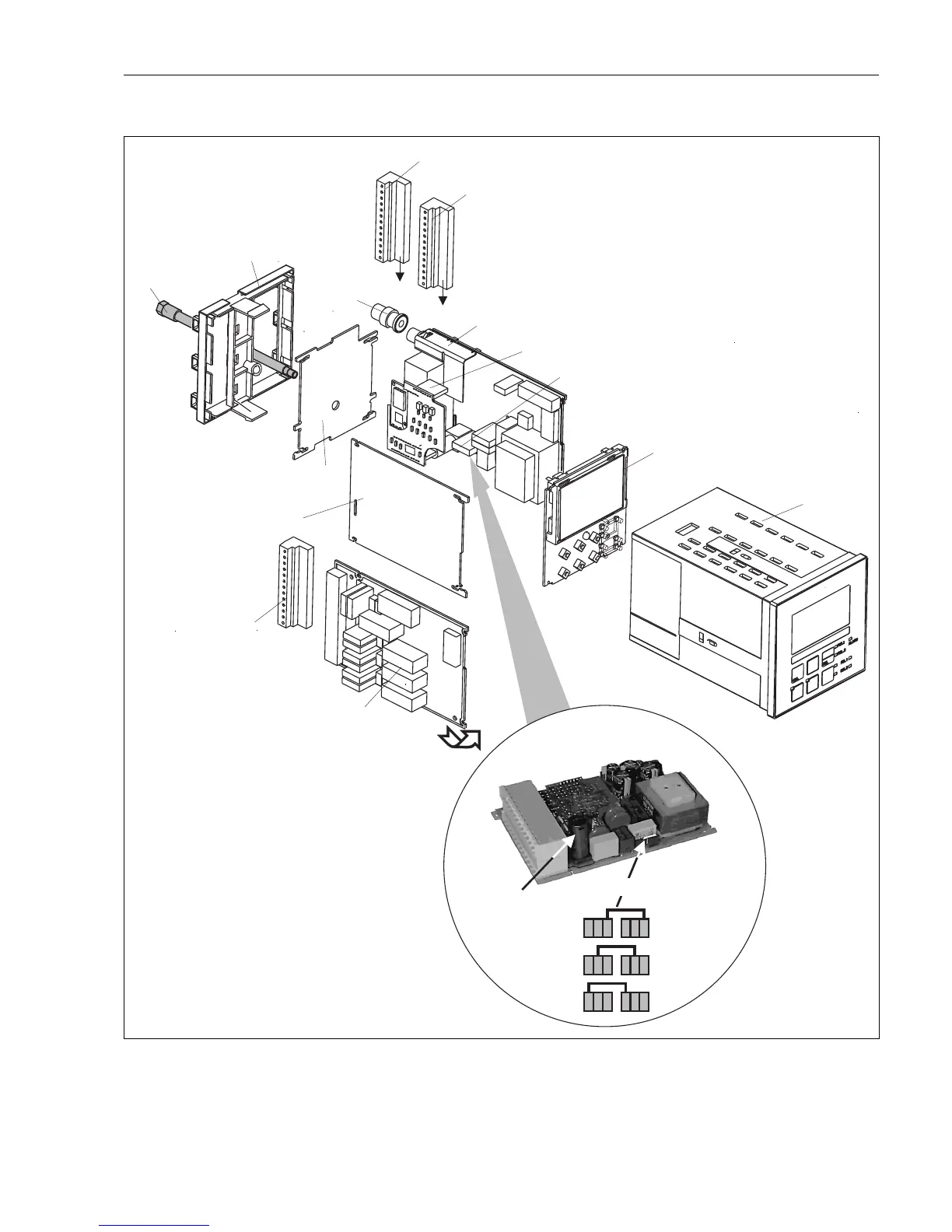

The exploded drawing contains the components and spare parts of the panel-mounted
instrument. You can take the spare parts and the corresponding order number from the
following section using the item numbers.
C07-CxM223xx-09-06-06-xx-001.eps
Fig. 47: Exploded drawing of panel-mounted instrument
Pos. 10
Netzteil 100 – 230 VAC
230 V
100 V
115 V
Sicherung
Pos. 30 / Steckbrücke
A
10
30
B
422a
422b
400
340
435
235
230
10/20
40
330
290/300
430
310
320
