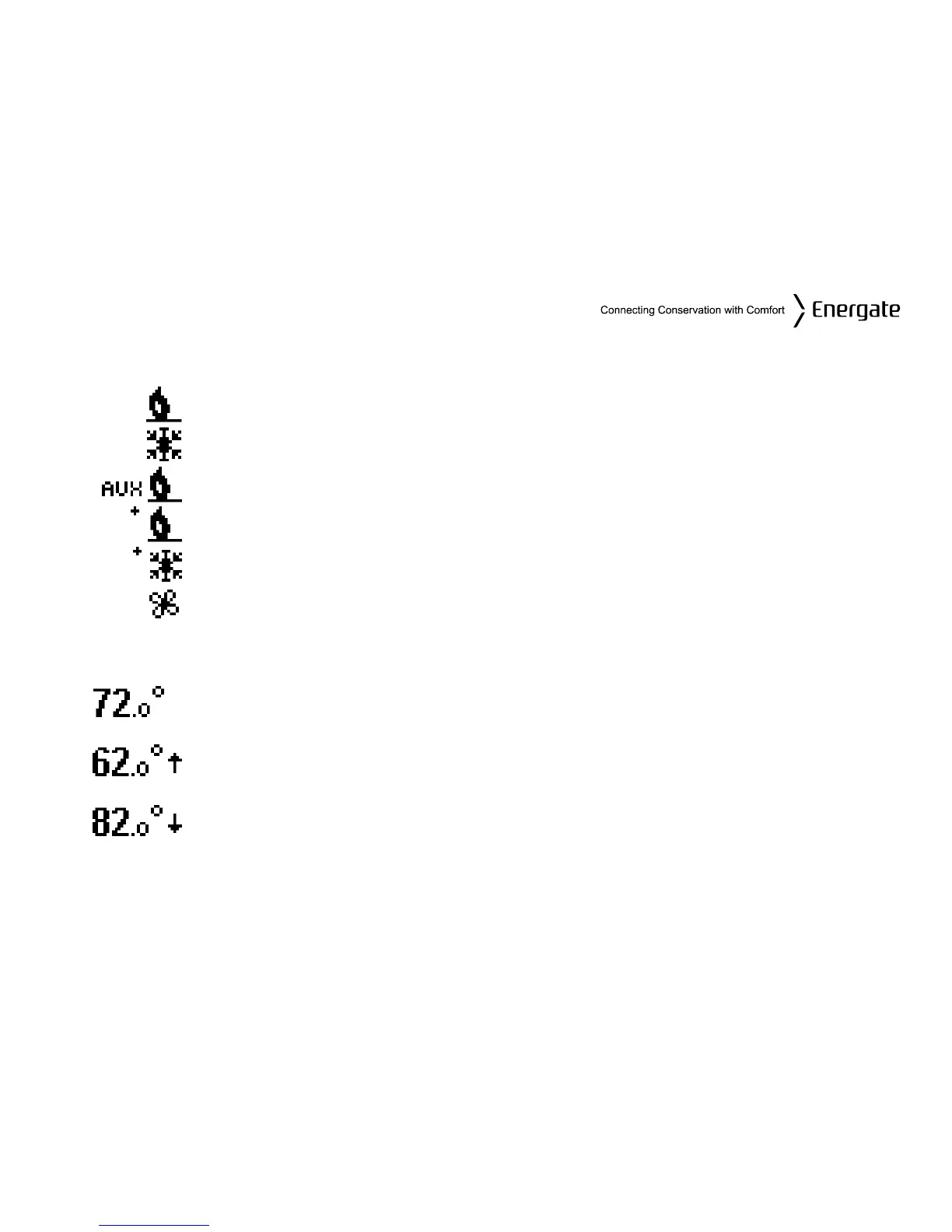

Heat / Cool / Fan Icons
Icon Description
Heat mode (animated when engaged).
Cool mode (animated when engaged).
Auxiliary heat on (animated).
More than one heat stage engaged (animated).
More than one cool stage engaged (animated).
Fan (animated when engaged).
Setpoint Value Display
The thermostat is controlling the HVAC equipment to the displayed
temperature.
The thermostat is anticipating the HVAC equipment control to the next
SETPOINT value, which is a higher temperature than the displayed value
The thermostat is anticipating the HVAC equipment control to the next
SETPOINT value, which is a lower temperature than the displayed value.
