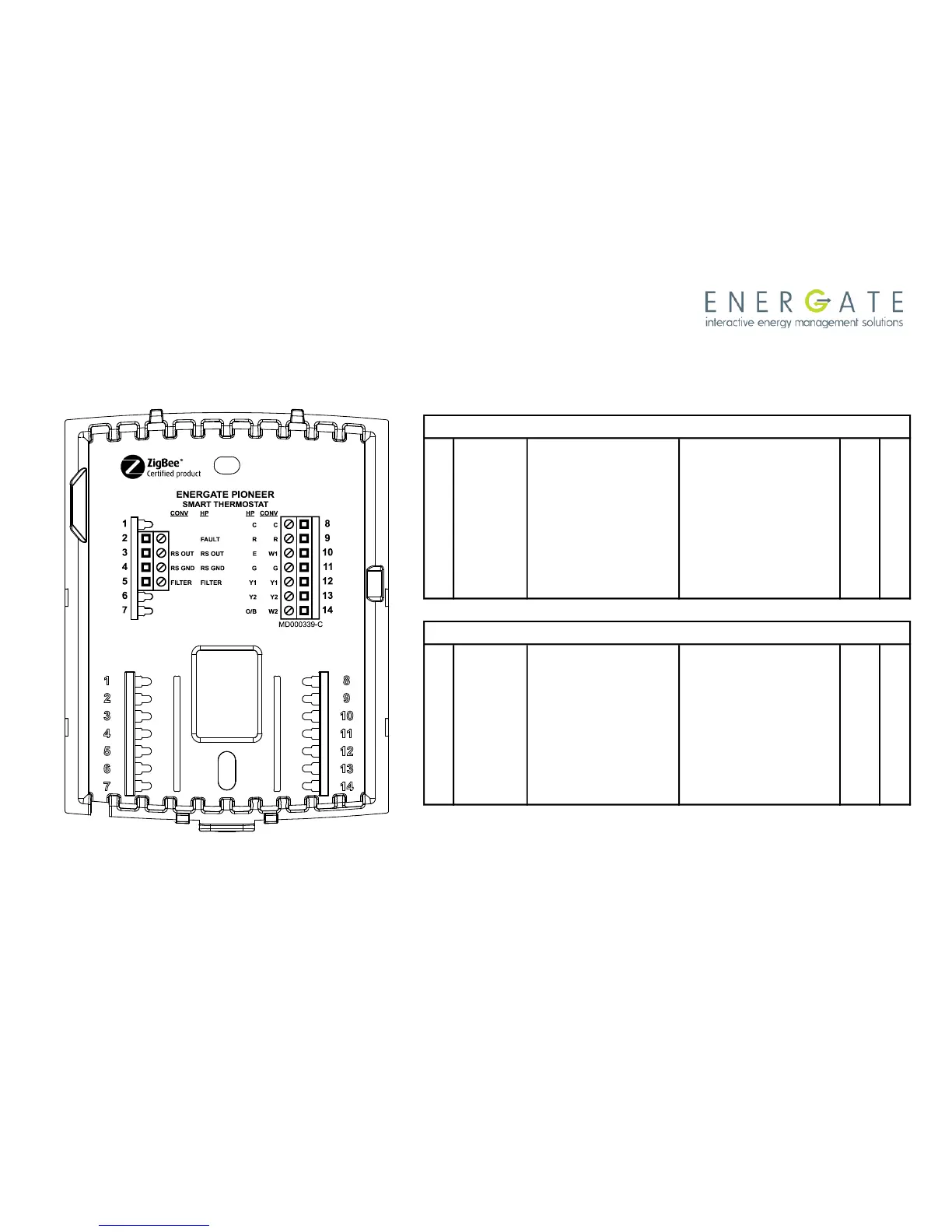

Wiring Configuration
The thermostat should be wired by a licensed technician familiar with HVAC installation.
1 Common(GND) C 8
2 Power (24VAC) R 9
3 RS OUT Outdoor Sensor 1st Stage Heat W1 10
4 RS GND Sensor Ground Fan G 11
5 FILTER Filter 1st Stage Cool Y1 12
6 2nd Stage Cool Y2 13
7 2nd Stage Heat W2 14
1 Common (GND) C 8
2 FAULT Heat Pump Fault Power (24VAC) R 9
3 RS OUT Outdoor Sensor Auxiliary Heat E 10
4 RS GND Sensor Ground Fan G 11
5 FILTER Filter 1st Stage Heat Pump Y1 12
6 2nd Stage Heat Pump Y2 13
7 Changeover Valve O/B 14
Conventional Systems (CONV)
Heat Pump Systems (HP)
