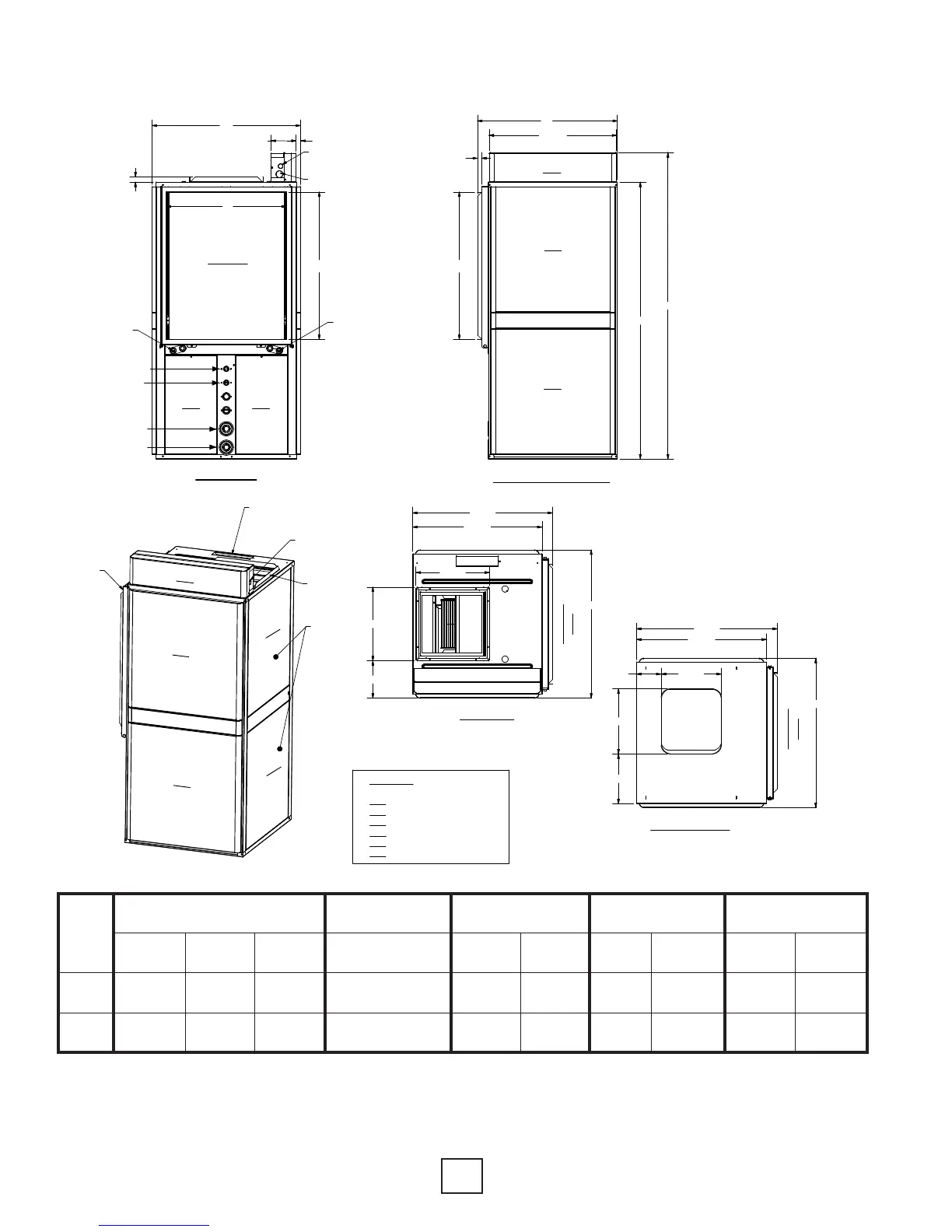

Enertech XT024 - Dimensional Data

10
Enertech Global IOM, XT Models
Notes:
All Desuperheater connections are 3/4” FPT.
All measurements are in inches.
* For the source water loop, GeoComfort residential models use 1” double o-ring ttings. GeoComfort commercial models, Hydron
Module & TETCO models use 1” FPT ttings.
Left View
E
C
.97
5.50
DD
Power Supply 1/2”
High Voltage Supply 1”
Condensate
3/4” FPT
Condensate
3/4” FPT
ASP ASP
Air Coil
1.13
C
A
P
B
S
P
C
S
P
S
A
P
S
A
P
Access
Panels
Low Votage 1/2”
Control Panel
Plug Plate
Filter
Rack
Plenum
Flanges
LEGEND:
SAP= Service Access Panel
BSP
= Blower Service Panel
CSP
= Compressor Service Panel
CAP
= Control Access Panel
ASP
= Access Service Panel
FPT
= Female Pipe Thread
Top View
Top Discharge
8.12
16.00
32.20
16.00
28.01
30.33
Control Box
AIR COIL
SIDE
Front & Back View
B
27.63
A2
A1
.89
CAP
BSP
CSP
D
Bottom Discharge
Bottom View
28.01
30.33
32.20
10.73
14.00
13.005.31
AIR COIL
SIDE
Desuperheater Out
Desuperheater In
Source In
Source Out
Dimensional Data
Section 4: Unit Installation
Model
Dimensional Data
without Control Box
Dimensional Data
with Control Box
Supply Air
(Top Discharge)
Supply Air
(Bottom Discharge)
Return Air
Height
(A1)
Width
(B)
Depth
(C)
Height
(A2)
Width Depth Width Depth
Width
(E)
Height
(D)
024 -
048
56.1 30.3 32.2 62.5 16.0 16.0 13.0 14.0 26.0 28.0
060 -
072
60.1 30.3 32.2 66.5 16.0 16.0 13.0 14.0 26.0 32.0
