enphase M250 User Manual

M-Series Microinverter Installation and Operation
 2016 Enphase Energy. All rights reserved. 141-00024 Rev 02b
11
Example Single-Phase Design

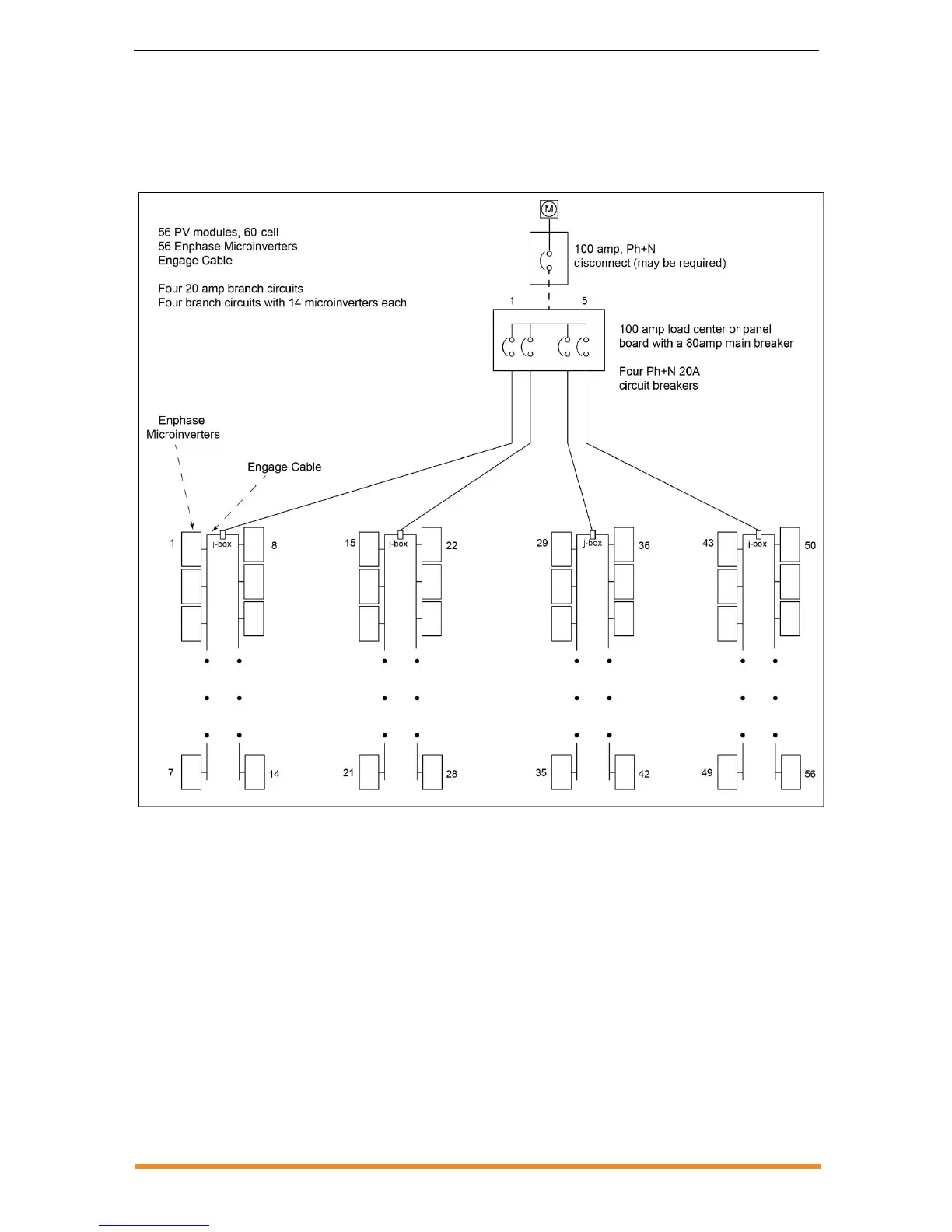

The following installation diagram shows an example with four branches. The single-phase design shows
four centre-fed branches with 14 microinverters each. The PV modules are in landscape orientation.
Tables following the diagram list required and optional equipment for this example.

enphase M250 Specifications

General

Model	M250
Manufacturer	Enphase Energy
Efficiency	96.5%
Output Voltage	240 V
Operating Temperature Range	-40°C to +65°C
Maximum Output Current	1.04 A
CEC Efficiency	96.0%
Start-up Voltage	22 V
Output Frequency	60 Hz
Enclosure Rating	IP67
Weight	1.6 kg
