M-Series Microinverter Installation and Operation
2016 Enphase Energy. All rights reserved. 141-00024 Rev 02b
41

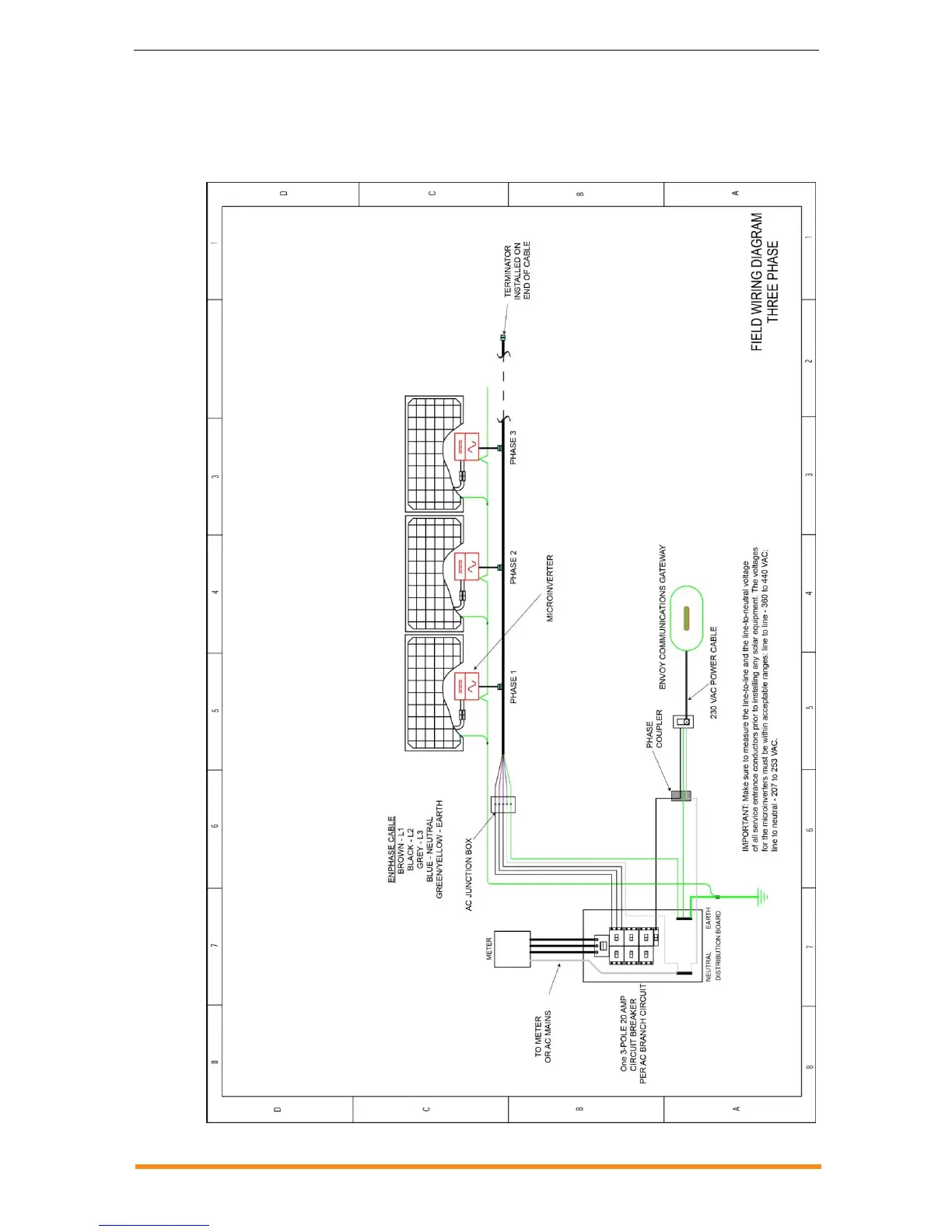

Sample Schematic 230 Vac, Three-Phase

Table of Contents

Other manuals for enphase M250

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the enphase M250 and is the answer not in the manual?

enphase M250 Specifications

General IconGeneral
ModelM250
ManufacturerEnphase Energy
Efficiency96.5%
Output Voltage240 V
Operating Temperature Range-40°C to +65°C
Maximum Output Current1.04 A
CEC Efficiency96.0%
Start-up Voltage22 V
Output Frequency60 Hz
Enclosure RatingIP67
Weight1.6 kg
