4. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.

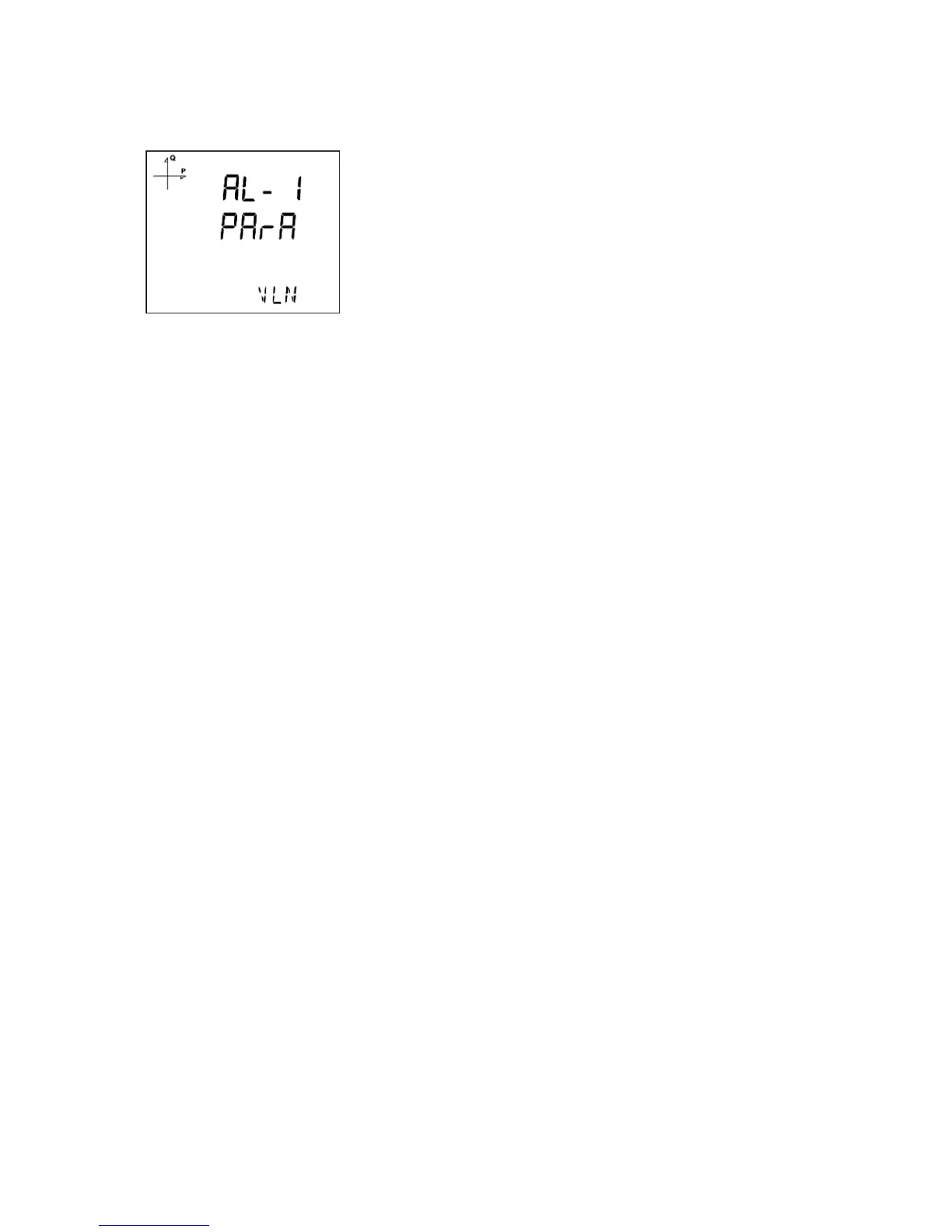

Alarm Parameter Selection
Alarm parameter is selected by following these steps:
1. Press the SET button while Alarm Setup is displayed.
2. Find Alarm Parameter by pressing UP/DOWN buttons.
3. Enter Alarm Parameter menu by pressing the SET button.
4. Select one of the following parameters with UP/DOWN buttons:
a. Phase currents
b. Total Current
c. Current Demand
d. Total Current Demand
e. Active Power
f. Reactive Power
g. Apparent Power
h. Total Active Power
i. Total Reactive Power
j. Total Apparent Power
k. Active Power Demand
l. Apparent Power Demand
m. Total Active Power Demand
n. Total Apparent Power Demand
o. Cos phi
p. Total Cos phi
q. Frequency
r. THDV
s. THDU
t. THDI
u. Hour Counter
v. Digital Input
w. Tariffs
x. Phase-Neutral Voltage
y. Phase-Phase Voltage
5. Press the SET button after completing your selection. You can start selecting the Alarm Operation
Type by pressing the UP button.
