49

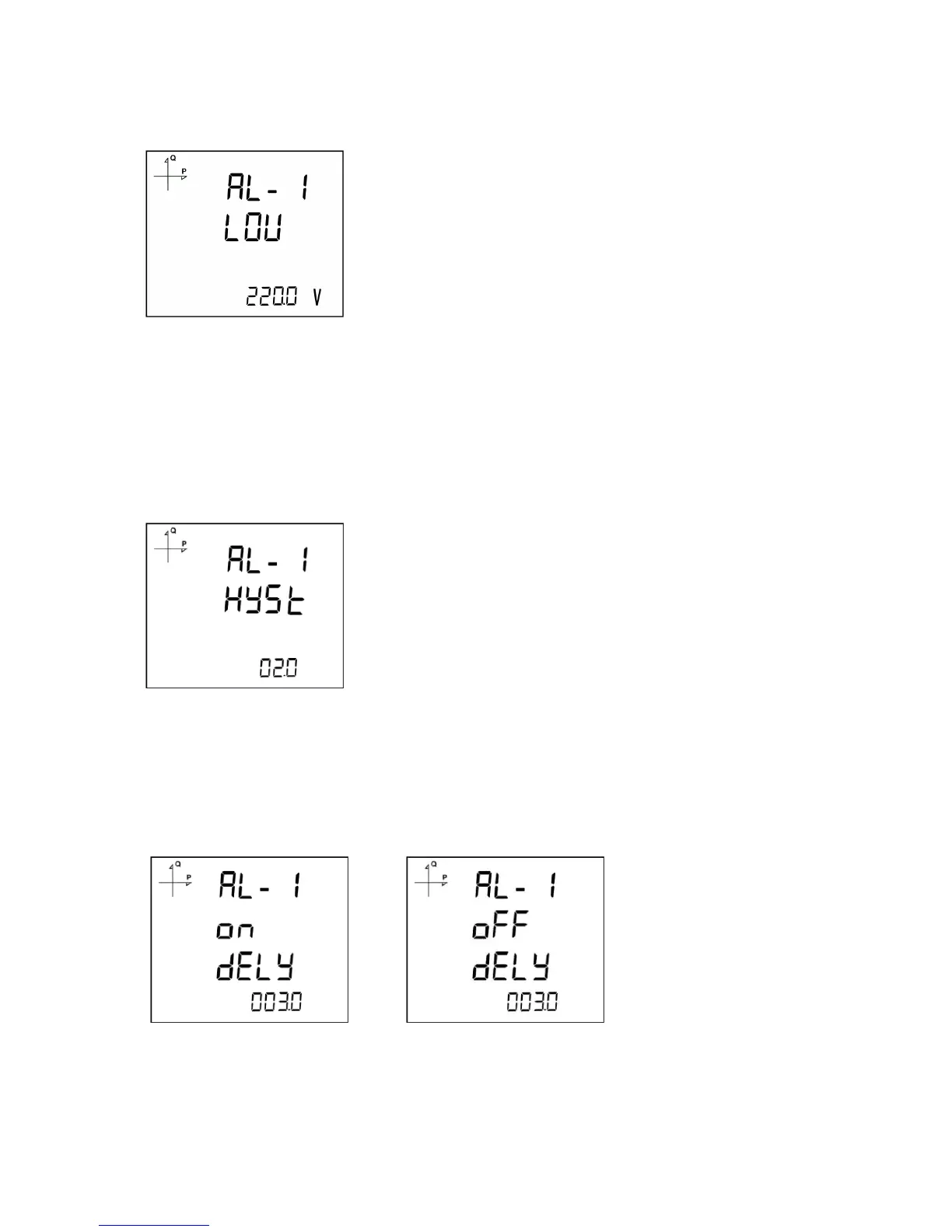

Low Alarm Limit Setting
A low limit for the alarm is entered in this menu.
1. While Alarm Enable is selected, find Alarm Low menu with UP/DOWN buttons.
2. Press the SET button. Enter the low alarm limit with UP/DOWN buttons.
3. Press the SET button after completing your selection.
4. Alarm parameters can be saved for 4 different alarms separately.
5. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
Alarm Hysteresis Setting
A hysteresis value for the alarm is entered in this menu.
1. While Alarm Enable is selected, find Alarm Hyst menu with UP/DOWN buttons.
2. Press the SET button. Enter the hysteresis value for the alarm as % with UP/DOWN buttons.
3. Press the SET button after completing your selection.
4. Alarm parameters can be saved for 4 different alarms separately.
5. When exiting from the menu with the BACK button, don’t forget to save the changes.
Alarm Delay Times Setting
1. After entering a hysteresis value, press the UP button to find the Alarm On Delay menu.
2. Press the SET button. Enter the alarm ON delay value in seconds for the alarm UP/DOWN buttons.
Go to the next digit with SET button. When the alarm conditions occur on the system, the alarm will
be activated after the entered time passes.
3. Press the SET button after completing your entering.
