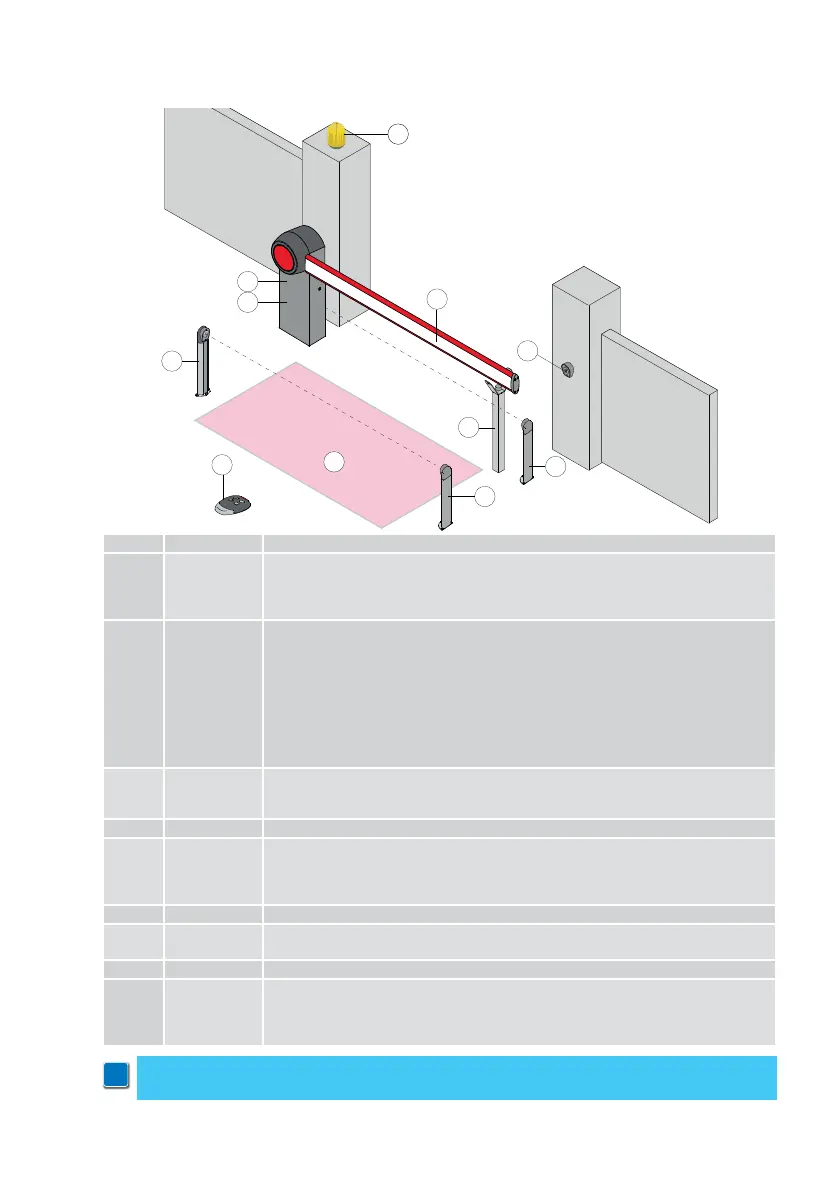

4. Standard installation
Ref. Code Description
1
QIK4E
QIK7EH
QIK7YEH
QIKZ
Barrier cabinet
Barrier cabinet
Stainless steel barrier cabinet
Cabinet fastening base
2
QIKB37
QIKB50
QIKB60
QIKSN
QIKBG
QIKLUX
QIKC
QIKAM
QIKGR
Elliptical bar 3700 mm
Elliptical bar 5000 mm
Elliptical bar 6000 mm
Articulated joint for elliptical bar
Joint for elliptical bar
Bar lighting kit
Box of 10 bar reflectors
Mobile support
Aluminium skirt 2000 mm
3
QIKAF
QIKAFE
QIKAFZ
Fixed support
Fixed support with electromagnetic block
Fixed support fastening base
4 LAMPH Flashing
5
XEL5
LAN4
LAN7
XELCA
Key selector switch
Combination keyboard
Card decoder
Column for control accessories
6 GOL4 Remote control
7
XEL2
XELCB
Photocells
Photocell column
8 LAB9 Magnetic loop detector for passage control
A
Connect the power supply to a type-approved omnipolar switch, with a contact
opening distance of at least 3 mm (not supplied).
Connection to the mains must be via independent channel and separate from the
connections to the control and safety devices.
i
The given operating and performance features can only be guaranteed with the use of DITEC
accessories and safety devices.
