Initial Installation
QUALIFIED INSTALLERS ONLY
ReaR vent conveRsion:
For smaller openings the Q1LI can be converted from a top vent to a rear vent unit.
20
Step 1: Using a T20 screwdriver
remove the vent collar, base plate,
cover plate and exhaust spigot (28
screws total) as shown in Figure 23.
Vent Collar
Base Plate
Exhaust Spigot
Cover Plate

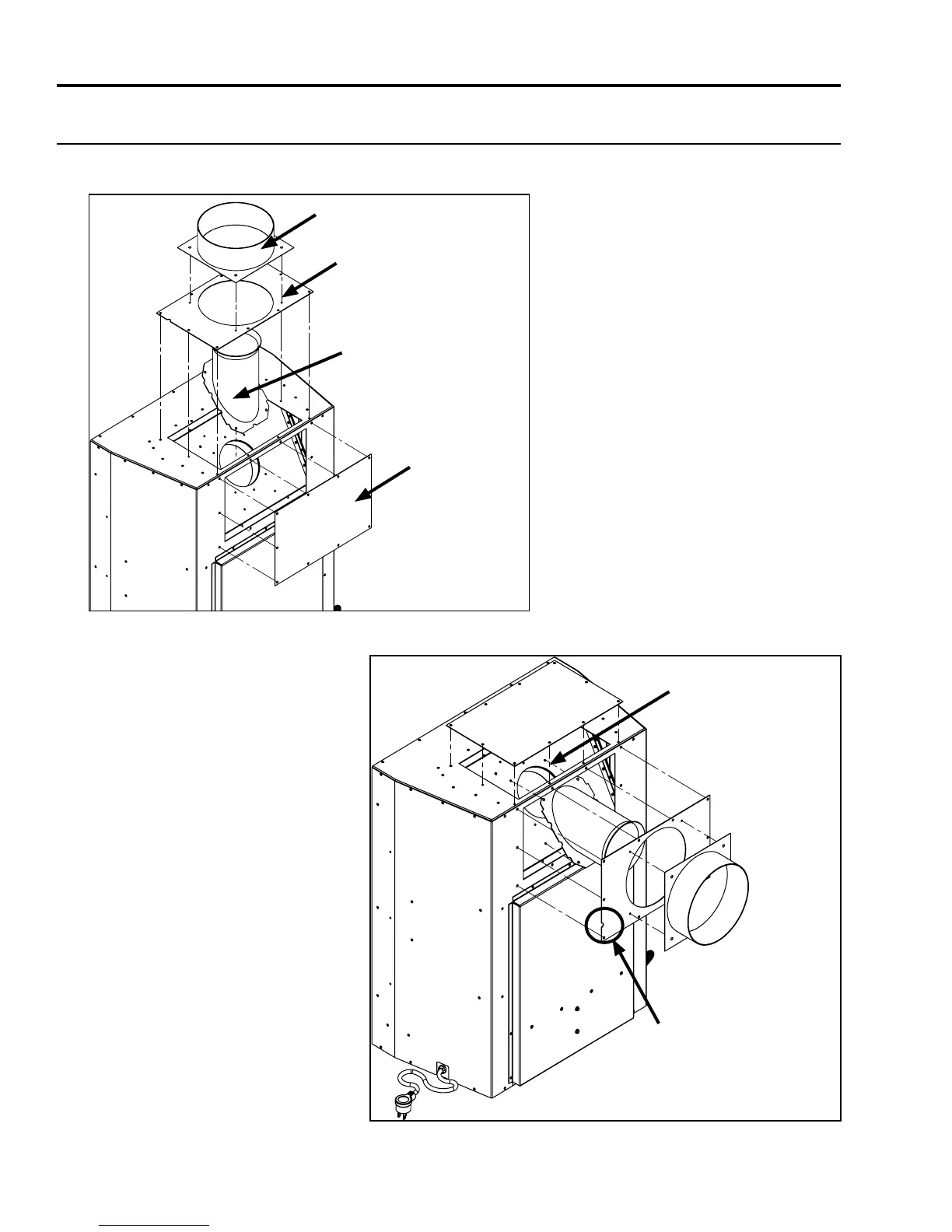

Figure 23. Vent Conversion - Step 1
Locating Notch
Step 2: Switch the removed parts
around as shown in Figure 24 and
re-install all 28 screws. To correctly
install the base plate keep the
locating notch on each side at the
bottom. Also note the exhaust
spigot uses a lower set of holes
when setup as a rear vent.
Figure 24. Vent Conversion - Step 2
Use lower set of
holes
