Initial Installation
QUALIFIED INSTALLERS ONLY
The total vent length must be between 8 ft (2.44 m) and 40 ft (12.19 m).
Install a sealed vent cap to prevent leakage of room air up through chimney.
The intake and the exhaust are 3" (76mm).
Measure the height of the chimney beforehand and purchase the appropriate
venting. Never attempt to over-stretch a flexible liner to accommodate the
height of the chimney. Every joint in the venting must be secured with three (3)
#8 x 3/8” HWH sheet metal screws and an appropriate sealant (either silicone
or stove cement).
The flue damper can be fully blocked open or removed for installation of the
unit; the smoke shelves, shields and baffles may be removed if attached by
mechanical fasteners.
The fireplace and fireplace chimney must be clean, in good working order and
constructed of non-combustible materials.
Make sure that all chimney cleanouts are tight fitting and will not permit air to
leak into the chimney.
Refractory, glass doors, screen rails, screen mesh and log grates can be
removed from the fireplace before installing the unit.
The base, sidewalls and top structure of the solid fuel rebox cannot be altered with the exception of:
removal of dampers, removal of smoke shelf or bafe, removal of ember catches, removal of log grate,
removal of viewing screen/curtain, and removal of doors. THE ORIGINAL FIREPLACE MAY NEVER BE
RETURNED TO SOLID FUEL USE IN THIS CONDITION.
soLiD fueL fiRepLace instaLLation:
WARNING: This fireplace has been converted
for the use with a gas fireplace insert only and
cannot be used for burning wood or solid
fuels unless all original parts have been
replaced, and the fireplace re-approved by the
authority having jurisdiction.
C-11168
IMPORTANT: If the factory-built replace has no gas access hole(s) provided, an access hole of 1.5 inch
(37.5 mm) or less may be drilled through the lower sides or bottom of the rebox in a proper workmanship
like manner. This access hole must be plugged with non-combustible insulation after the gas supply line
Figure 47: Fireplace Altered Plate.

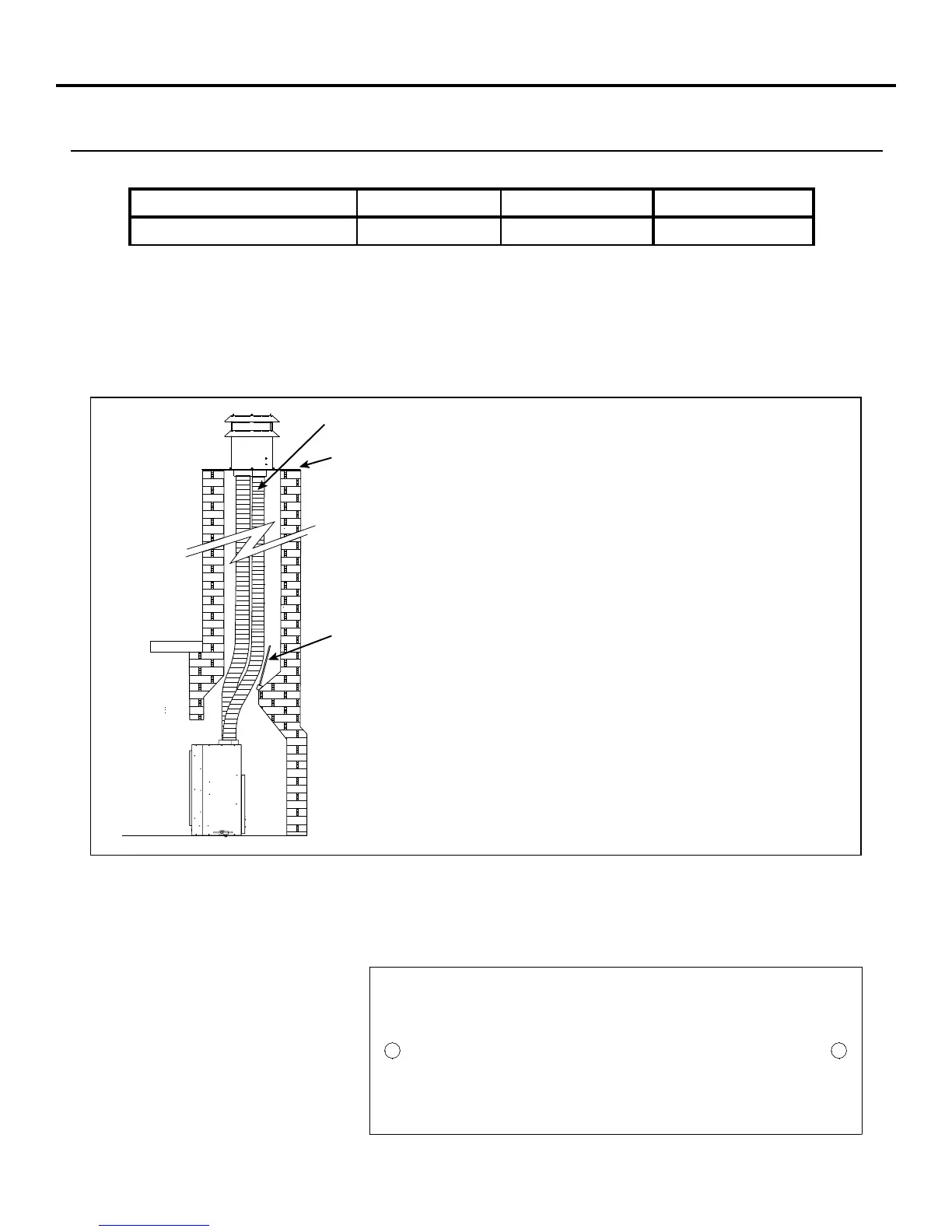

Figure 46: Solid Fuel Fireplace Installation.
has been installed. Cutting any
sheet-metal parts of the replace,
in which the gas replace insert is
to be installed is prohibited. The
label plate shown on the right,
included with co-linear venting
adapter kit, must be permanently
attached inside the cavity of the
replace in a visible location.
Width Height Depth
Fireplace Dimensions 20¼” (51.4 cm) 27½” (69.8 cm) 12½” (31.7 cm)
Table 9: Min. Fireplace Dimensions
Note: Space must be left for gas line on left side of unit for servicing purposes
38
