3. Next, remove the top brick panel retainers on each side as shown in Figure 58 using a T20 screwdriver.
4. Carefully remove the left, rear, and right brick panels from the rebox.
5. Install the rear porcelain panel rst by sitting it on the ledge
at the rear of the rebox (see gure 59), then follow with
the left and right panels.
6. Re-install the brick panel retainer screws and brackets
7. Re-install the rebox baf e.
8. Install the top porcelain panel by screwing it to the rebox
baf e as show in Figure 60 using the supplied screws.
9. Re-install the log grate and log set as outlined in the
previous section.
10. Re-Install the glass door
Secondary Installation
optionaL poRceLain paneLs (50-2939) instaLLation anD RemovaL:
Turn off the gas control knob and allow the
unit to cool.
Please ensure that your porcelain panels have not
been damaged.
To Install Panels:
1. Remove the glass door by following the
instruction in the “
maIntenance anD serVIce -
glass Door remoVal” section and remove the
log set, log grate and air diffuser as outlined in
the previous section.
2. Remove the rebox baf e by unscrewing the
two screws indicated in Figure 57 using a T20
screwdriver. Lower the front of the baf e down
and then lift it out of the two locating screws at
the rear of the rebox.

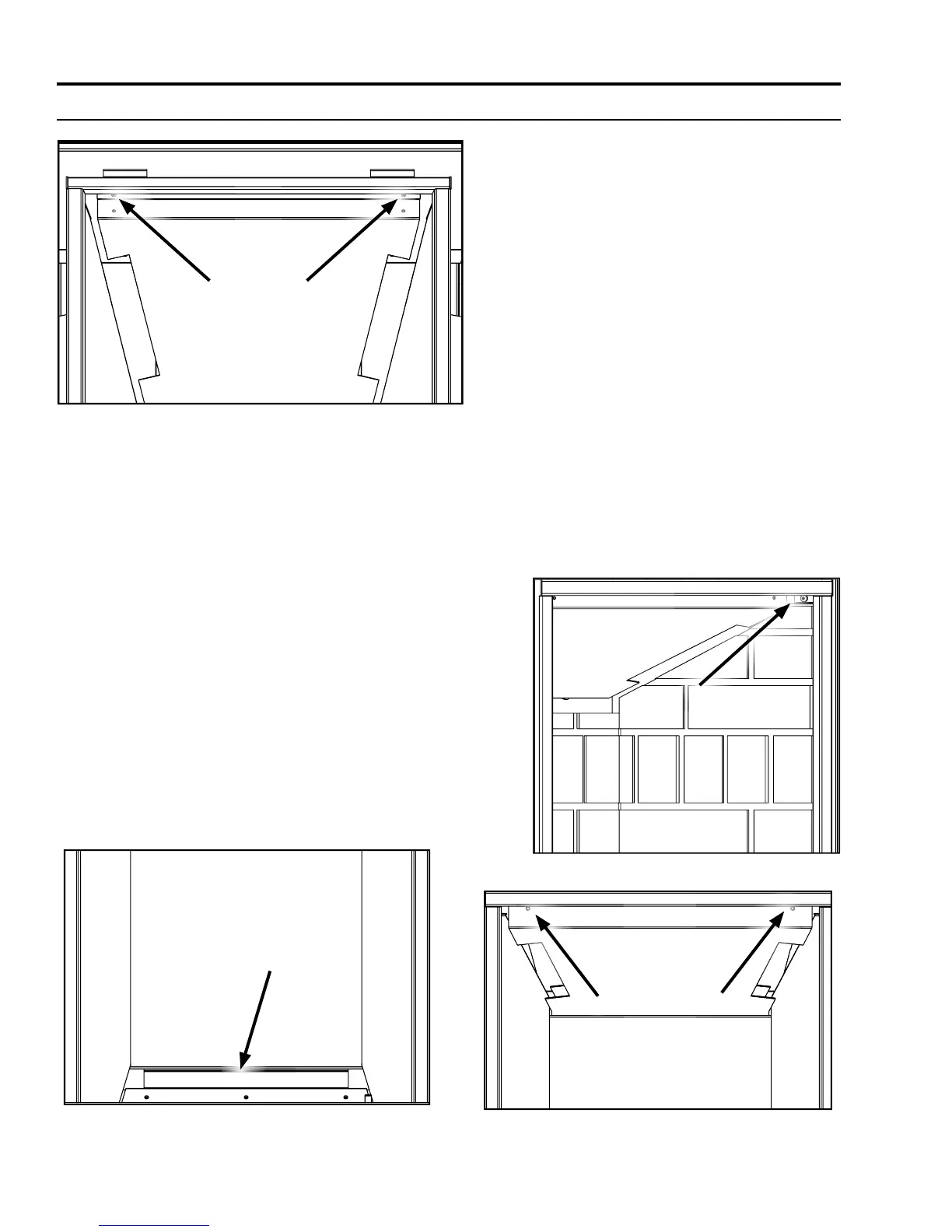

Figure 57. Baf e Screws.
Figure 58. Top Panel Retainers.
Figure 59. Rear Panel Ledge. Figure 60. Top Panel Screws.
44
