Initial Installation
QUALIFIED INSTALLERS ONLY
Adapter Kit Installation:

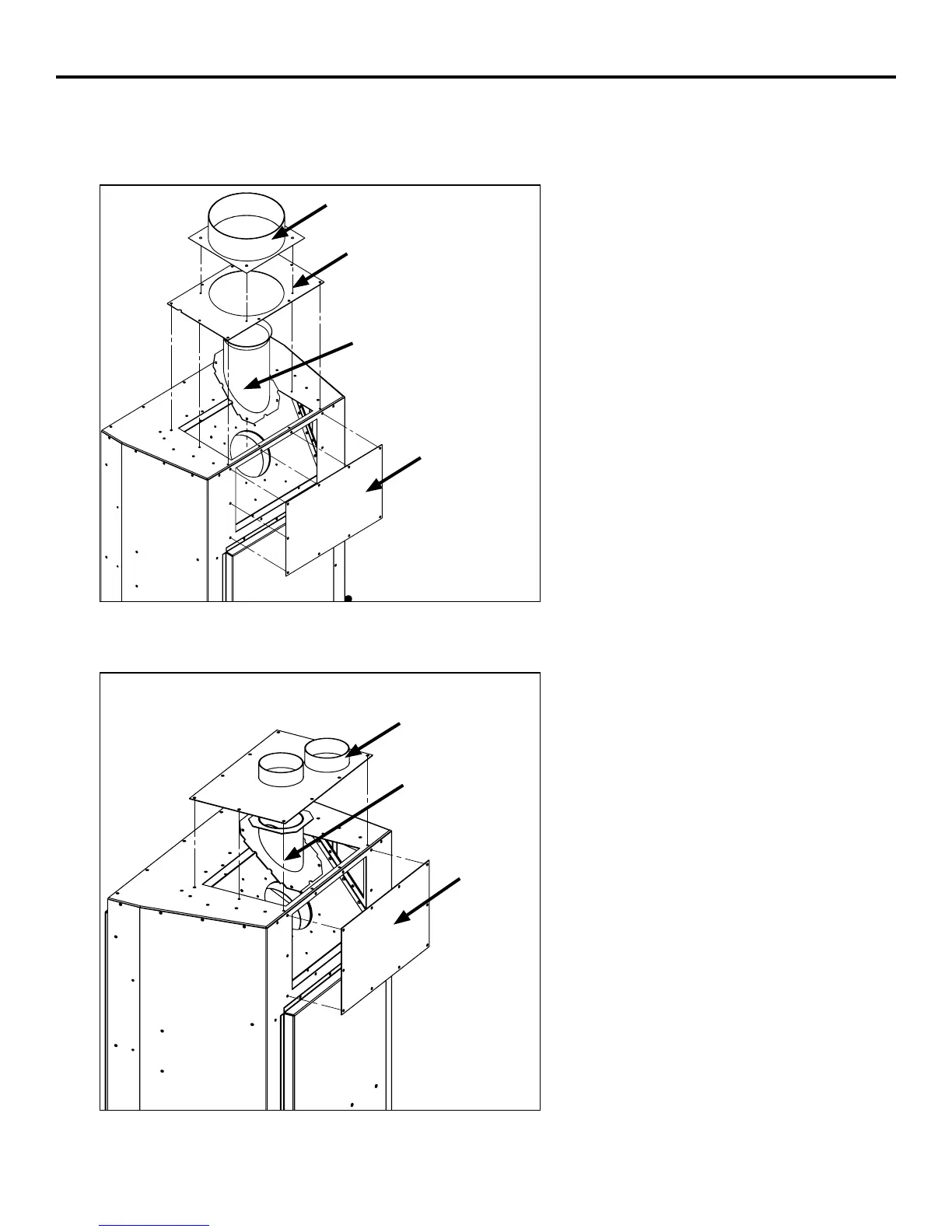

Step 1: Using a T20 screwdriver
remove the vent collar, base plate,
cover plate and 4” exhaust spigot
(28 screws total) as shown in
Figure 38. The vent collar, base
plate, and 4” exhaust spigot will
no longer be used.
Base Plate
4” Exhaust Spigot
Cover Plate
Vent Collar
Figure 38: Removal of Co-Axial Venting
Step 2: Install the components
supplied in the adapter kit as
shown using the screws that had
been removed from the unit in
Step 1. The gasket on the bottom
side the vent plate adapter and
exhaust spigot ange gasket will
be sandwiched together when
properly installed.
Cover Plate
3” Exhaust Spigot
Vent Plate Adapter
Figure 39: Installation of Co-Linear Vent Kit
