EOS Vision - Installation and Operating Instructions EN-23
Installation
2 Lay the connecting cable along the heater base from the cabin to the
control unit or power extension unit.
Laying the concealed connecting cable (optional)
1 Attach the feed opening in the cabin floor under the base plate. Use a ca-
ble duct for this purpose.

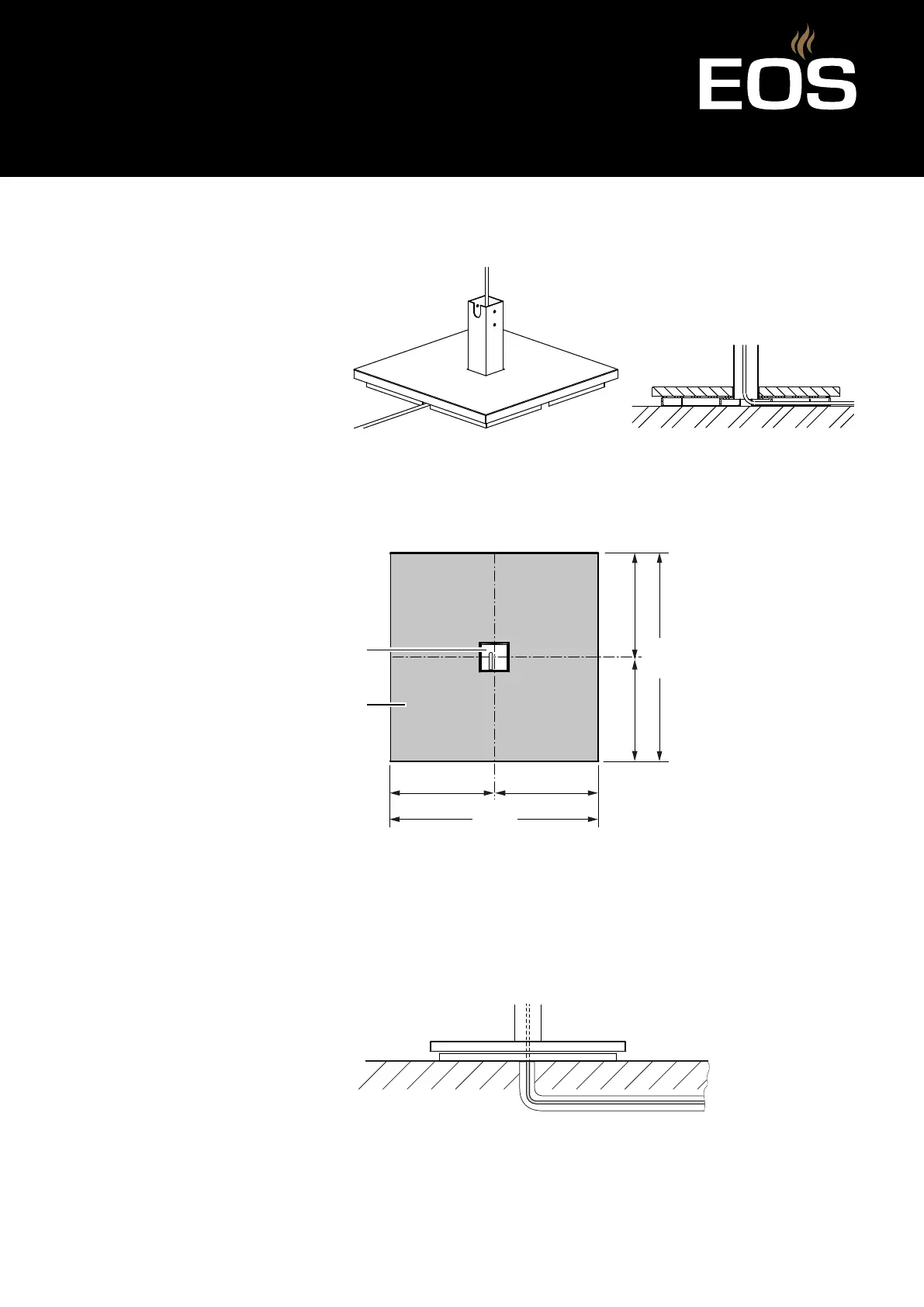

Drilling template for concealed connecting cable
2 Route the connecting cable through the base of the base plate.
3 Route the connecting cable under the cabin floor with a suitable protec-
tive cover.
A Hole for connecting cable B Base plate
=
=
==
60 cm
60 cm
A
B
