EOS Vision - Installation and Operating Instructions EN-45
Service and maintenance

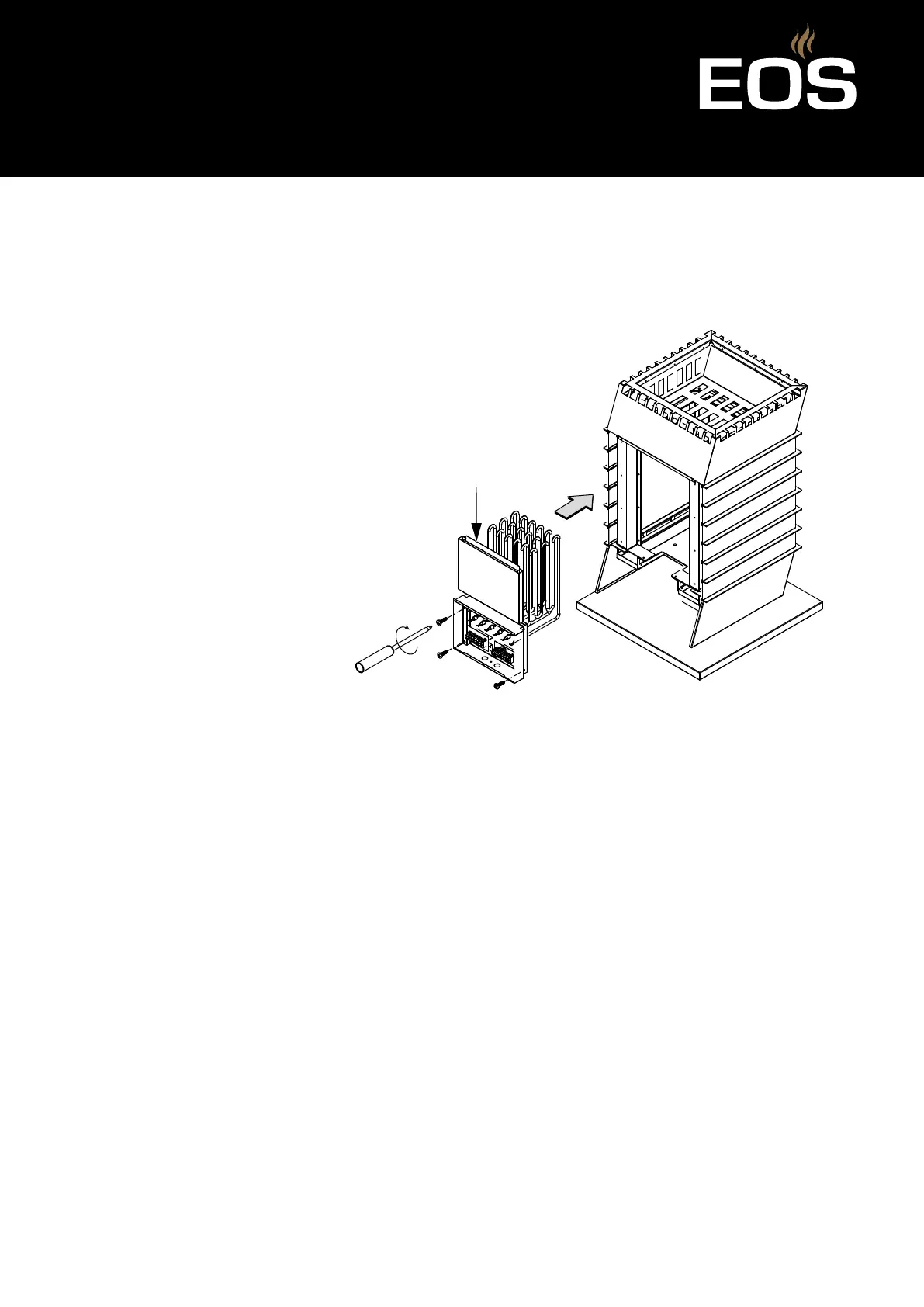

Inserting the heating coil
1 Insert the heating coil into the heater.
Ensure that the tab on the air deflection hood is seated in the recess
provided.
2 Screw in the 4 screws in the heating coil and tighten.
3 Feed the connecting cables through the cable screw connections in the
terminal box.
4 Connect the connecting cables.
4.2 Inner wiring diagrams, EN-28
5 Put on the covers of the terminal box and the rear panel of the heater.
6 Move the heater back into its original position.
7 Place the stones in the rock store.
8 Switch on the fuses of the heater.
