Epec 4W30 - Page 13

Instructions for use Epec 4W30 12
(C) Epec Oy Seinäjoki Finland

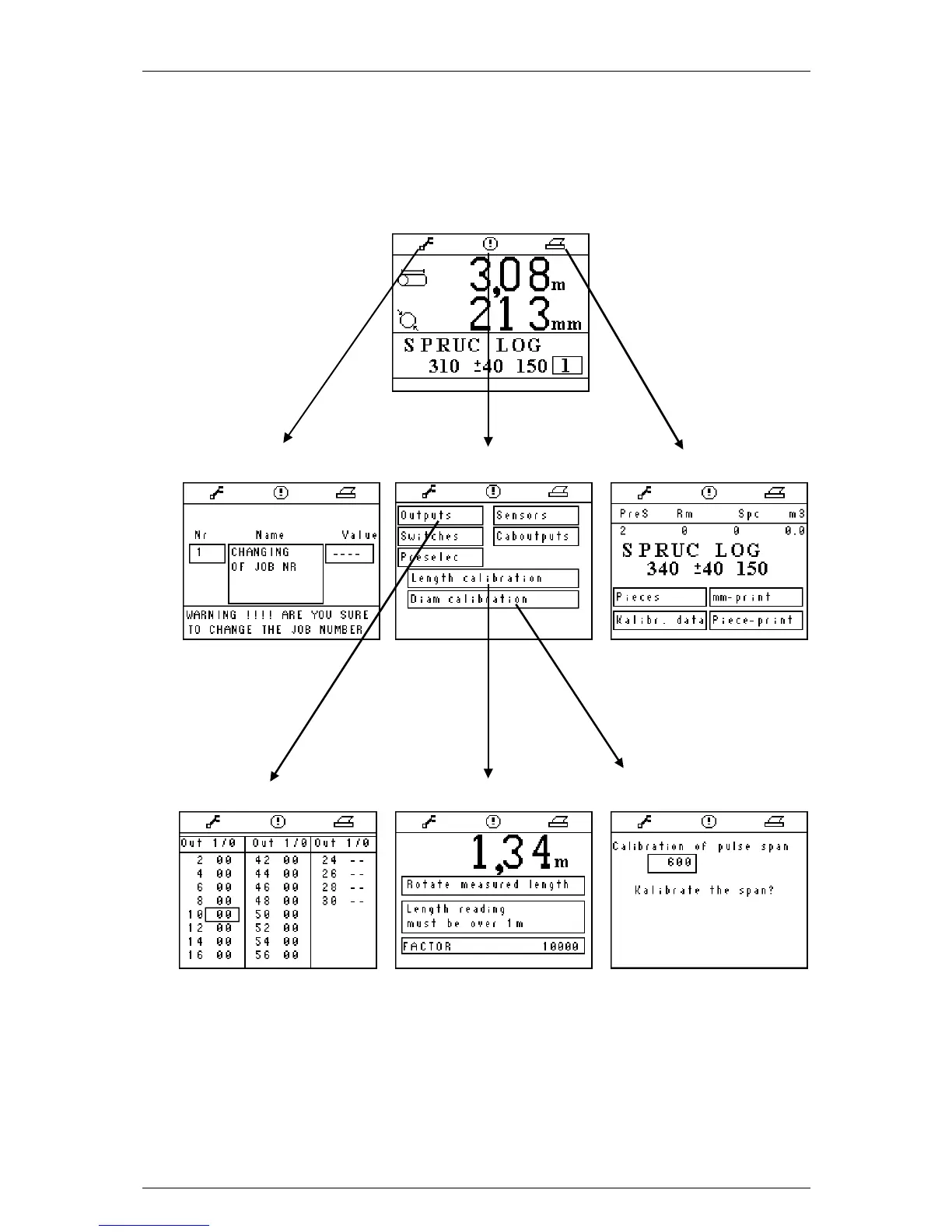

DISPLAYS
This chart shows the contents of the different displays. The arrows
indicate the displays that appear when pressing the Enter key at the
display key in question.
Main display
Settings Test / Calibration Printout
NOTE!
The printout window has
no display keys if there is
no printer connected to
the system
Test Length calibration
Calibration of the diameter
pulse span
