HANDLING OF THE DIAMETER CURVE POINTS
1. Activate service mode.
2. Select the "Test / Calibration" display in the upper menu.
3. Press PS 1 to the bottom for appr. 4 seconds, then 2 additional
function keys appear in the display (see picture next page).
Select "Edit diam curve" key and press Enter.
4. Now you can see all the curve points and change them, if
necessary (see picture below).

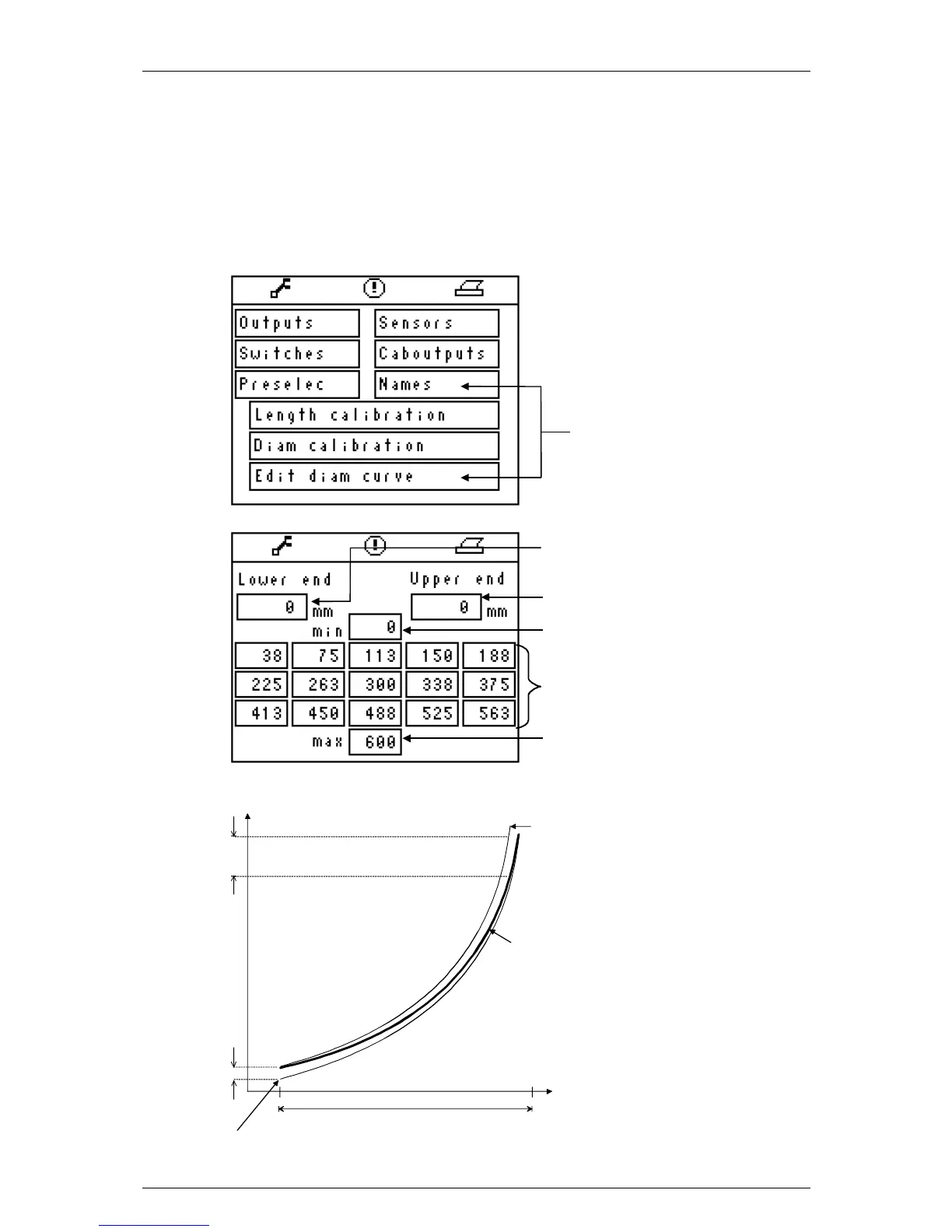

The extra keys
Millimeter reading corresponding
to the position "Grapple closed"
Curve points from between
Transfer of the thin end of
the diameter curve (top)
Transfer of the thick end of
the diameter curve (butt end)
Millimeter reading corresponding
to the position "Grapple open"
The diameter curve
consists of the
curve points
mentioned above.
The single points
are not seen in the
figure.
Pulse reading
Diameter reading mm
Curve that is calibrated
with the pipes
Transfer of
the thin end
Transfer of
the thick end
Pulse range
Curve that is transfered
from the thick end
Curve that is transfered
from the thin end
