Note 9: When the limit is exceeded, the output voltage circuit starts to limit the current by
switching the output voltage. The switching does not affect the application software.
Note 10: When the frequency increases, the actual duty cycle may be bigger than the value that
has been set.
Note 11: Overload conditions

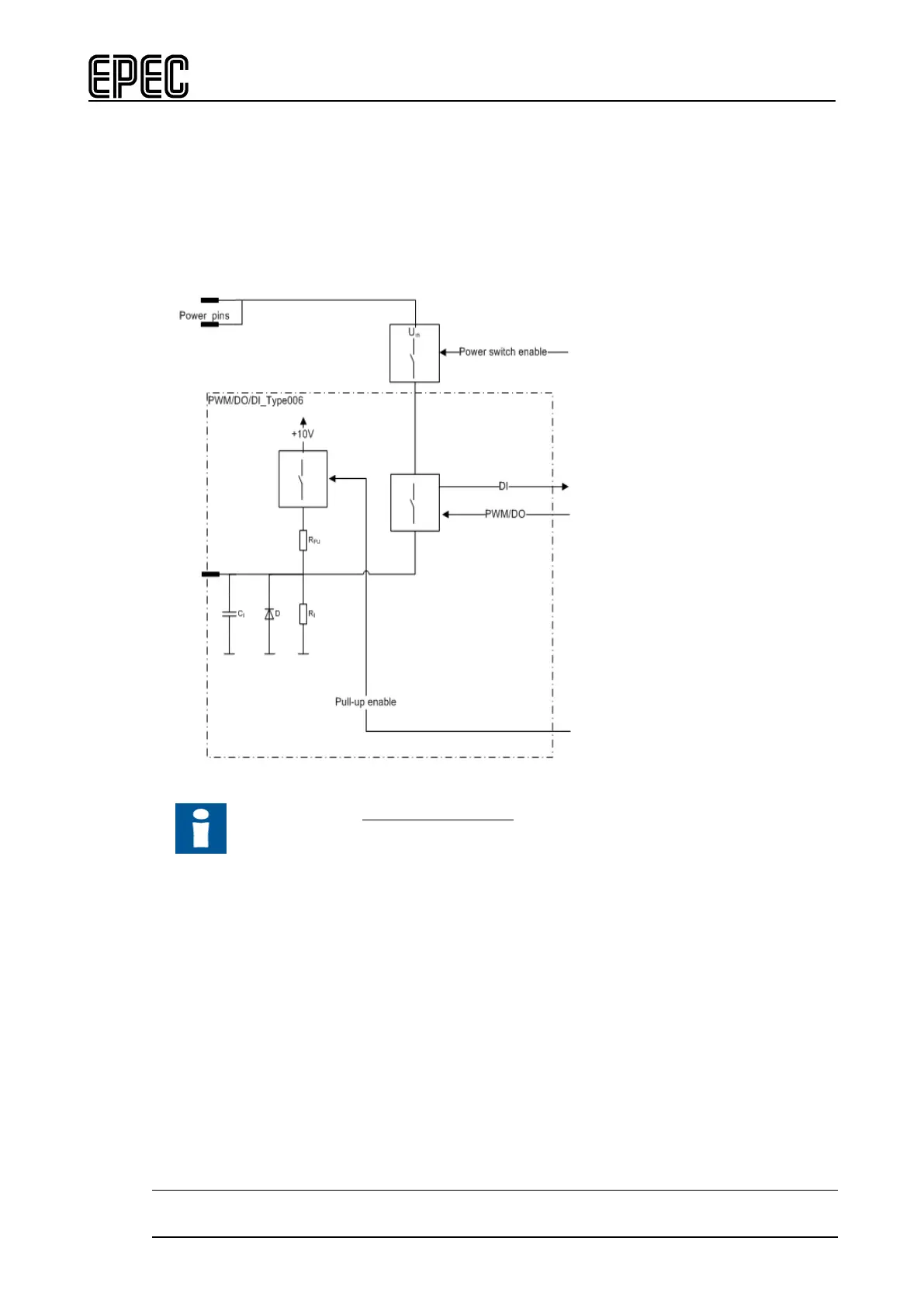

Functional block diagram
Refer to section Connection Examples to see examples of how to connect external
actuators or sensors when using this type of pin.
To Next Page
