CAN - CANopen Interface
Installation guide
EPC Dual CAN interface Description (Optional)
CONNECTOR 7
CAN Bus #1.
Reserved for custom applications.
Terminal
Description
7A
GND
7B
CAN Low signal
7C
CAN High signal
7D
5V 0.1A Output
CONNECTOR 8
CAN Bus #2.
Connection with external controller.
Terminal
Description
8A
GND
8B
CAN Low signal
8C
CAN High signal
8D
5V 0.1A Output
CAN 1 and CAN 2 are electrically isolated.

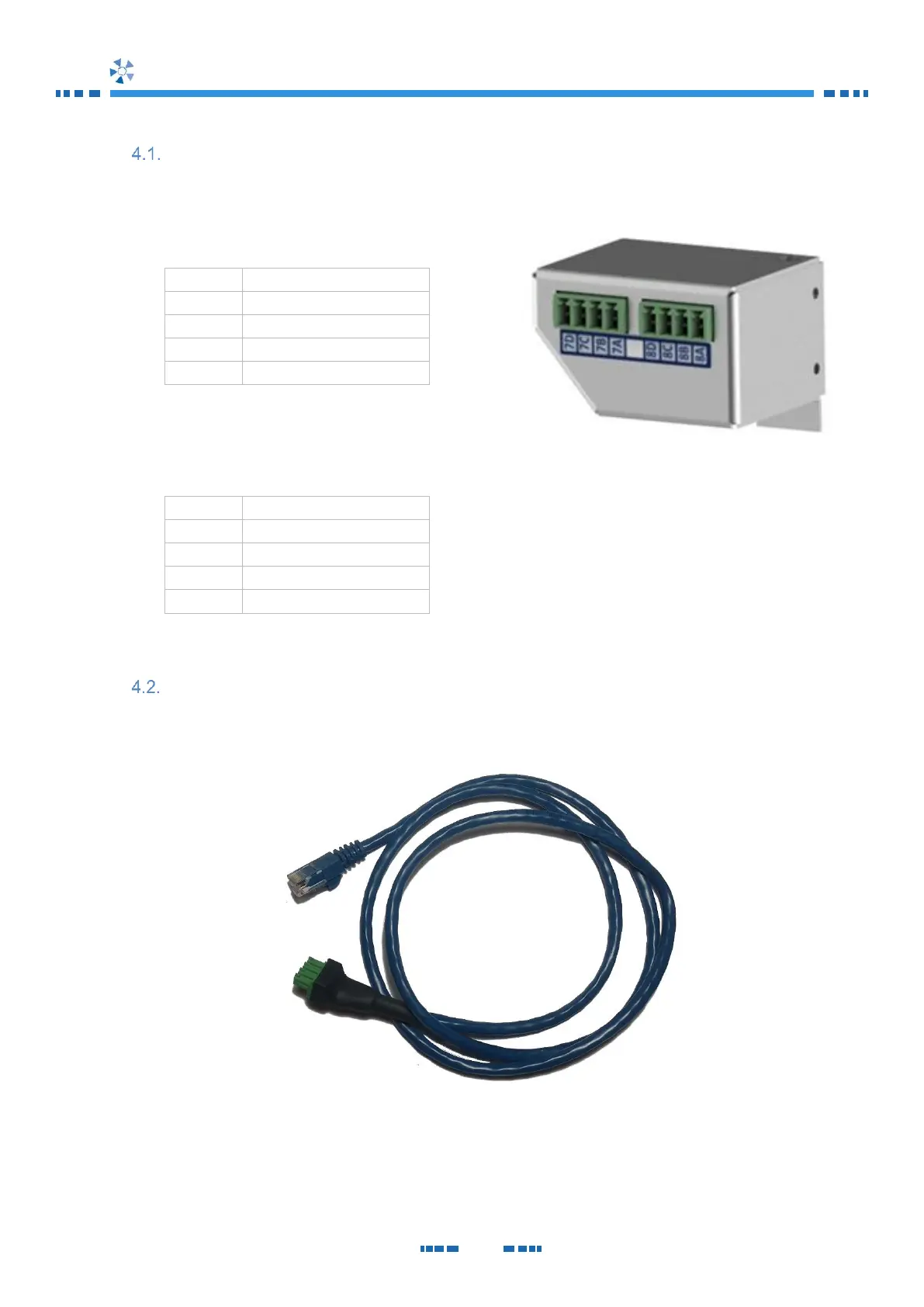

EPC Connection Cable (optional)
Cable used to connect EPC DC/DC Converter with CAN - CANopen interface.
Fig. 7 EPC to CAN – CANopen interface connection cable (SKU: X.2001.0047)
Fig. 6 EPC Dual CAN interface (SKU: F.1003.1002)
