CAN - CANopen Interface
Installation guide

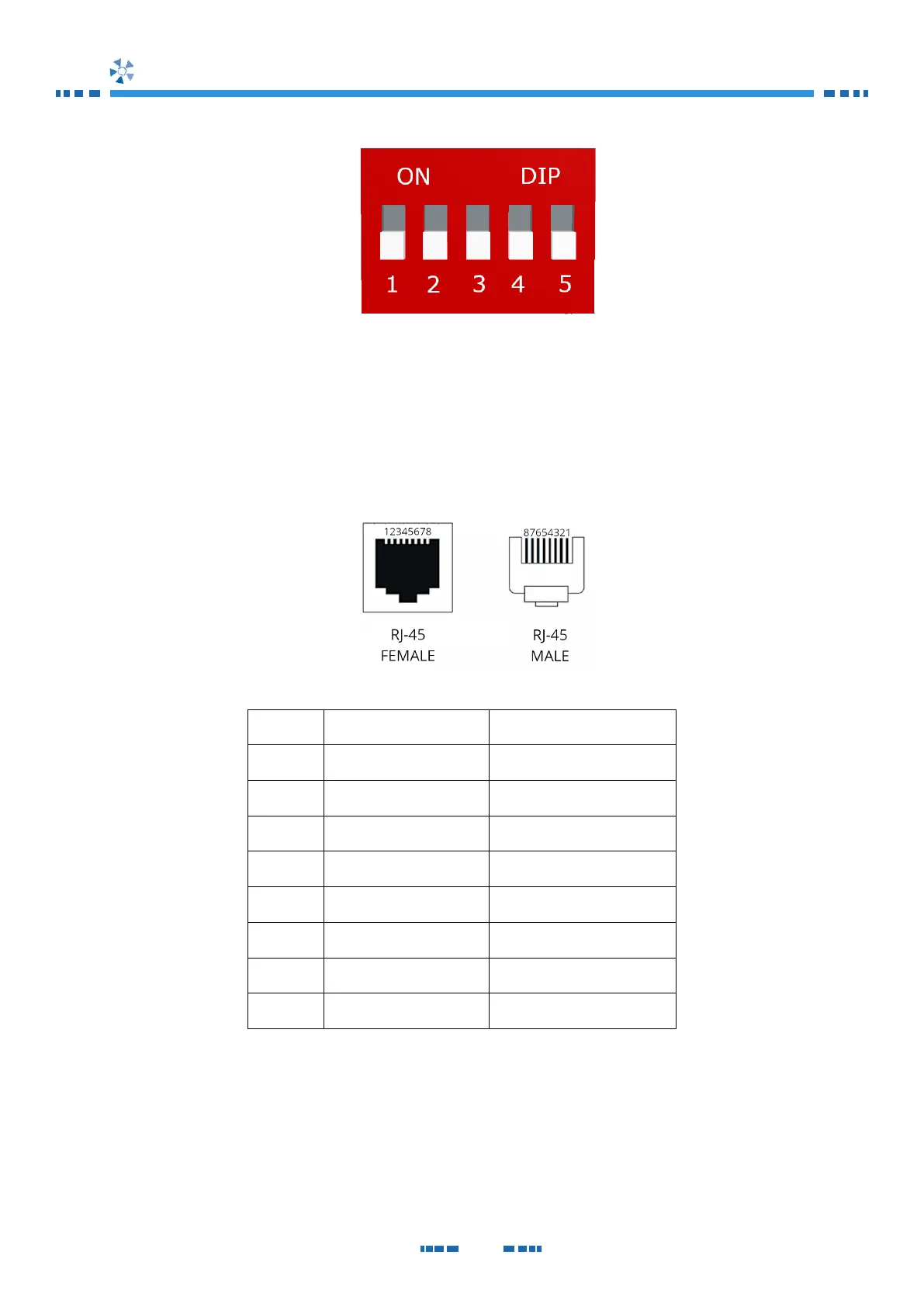

Fig. 4 Node-ID Configuration Switch
5) CANopen connector
This is the CANopen bus dedicated connector in standard RJ-45 socket with pinout as
detailed in Fig. 5.
The default bitrate is 125 kbps.
Fig. 5 Connector 5 Pinout
Pin
Signal
Description
1
CAN_H
CAN high
2
CAN_L
CAN low
3
GND
GND
4
N/C
5
N/C
6
N/C
7
N/C
8
N/C
ON
OFF
