Operator's instructions
4. Controls

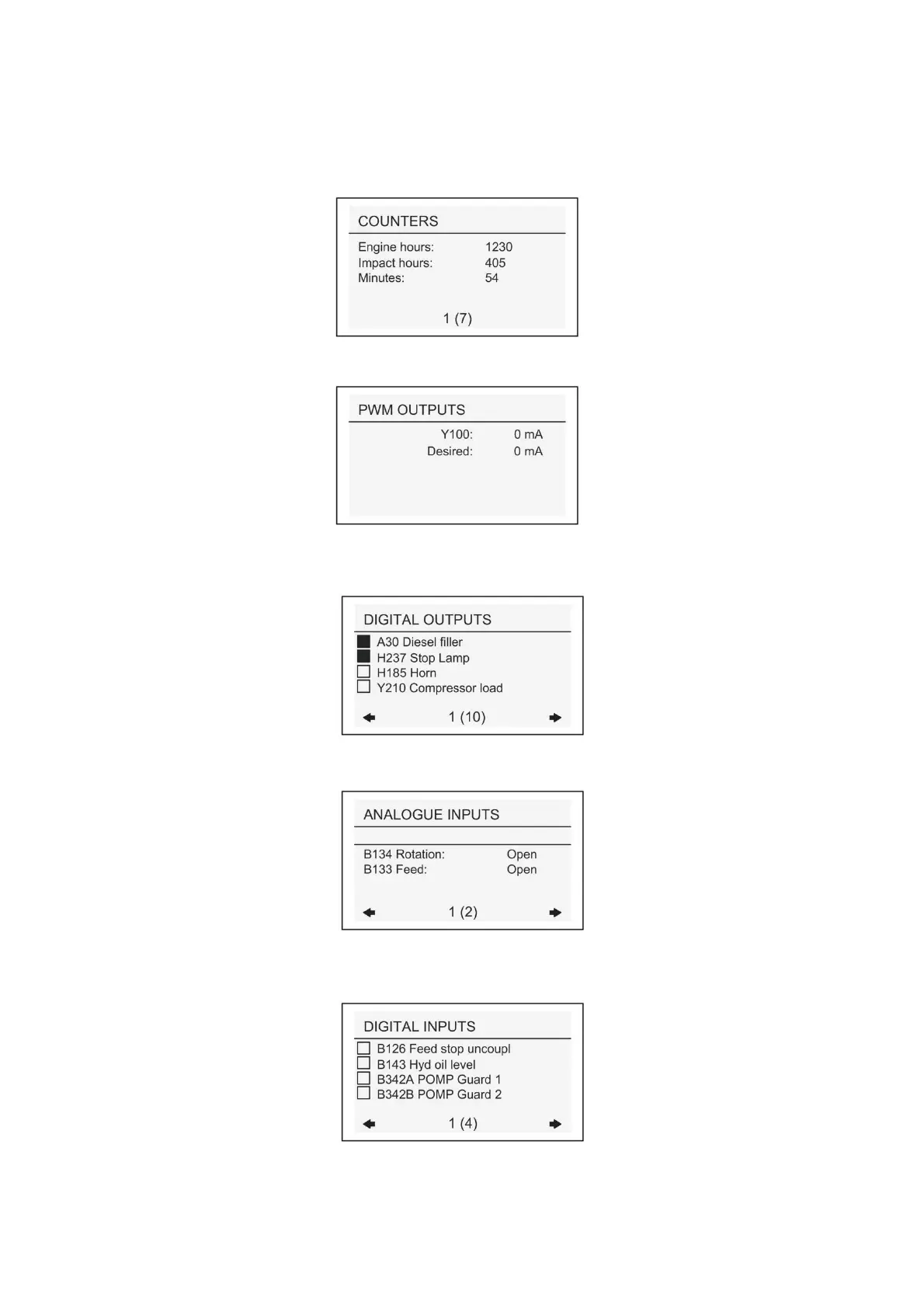

Diagnostics submenus
The Diagnostics main menu contains the following submenus:
Under Counters, engine and percussion hours can be read, amongst other things
Under PWM Outputs, desired and actual valve actuation can be read. If a fault is detected in the
valve in question then this will be indicated with the text message ERROR.
Digital Outputs gives information about control system activation and digital output.
Analogue Inputs gives information about control system reading of analogue sensors. If open circuit or short circuit is
detected, then this is indicated
Under Digital Inputs, digital inputs are located.
