79
Operator's instructions
5. Operating

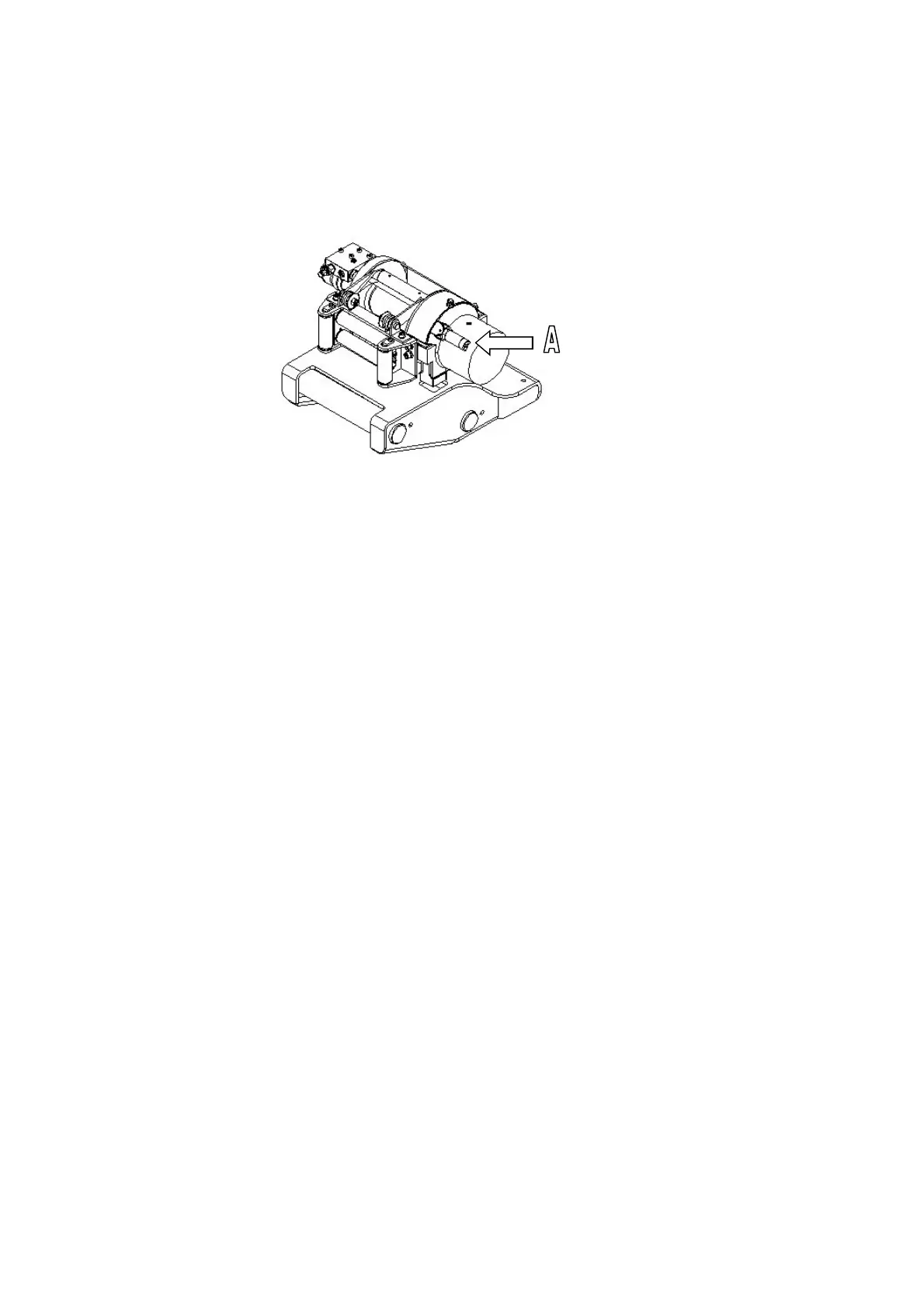

NOTE: Do not commence tramming without ensuring that the winch locking mechanism
is fully engaged (A).
The winch locking mechanism is fully engaged (A).
9.
Reverse up the incline using the tramming levers. Make sure that the wire is kept taut
constantly.
Tramming downhill
10.
Fasten the eyelet to the anchorage point.
11.
Set the winch thrust using the multifunction knob (4). Turn it clockwise to reach max-
imum pressure 100%.
12.
Reduce the winch cable pressure gradually until the drill rig can be driven smoothly
down the incline with a suitable counterbalance from the winch. Make sure that the
cable remains taut constantly.
NOTE: The winch will work (inwards) simultaneously while the tramming levers are
activated
