Epiroc FlexiROC T20 R User Manual

43
Operator's instructions

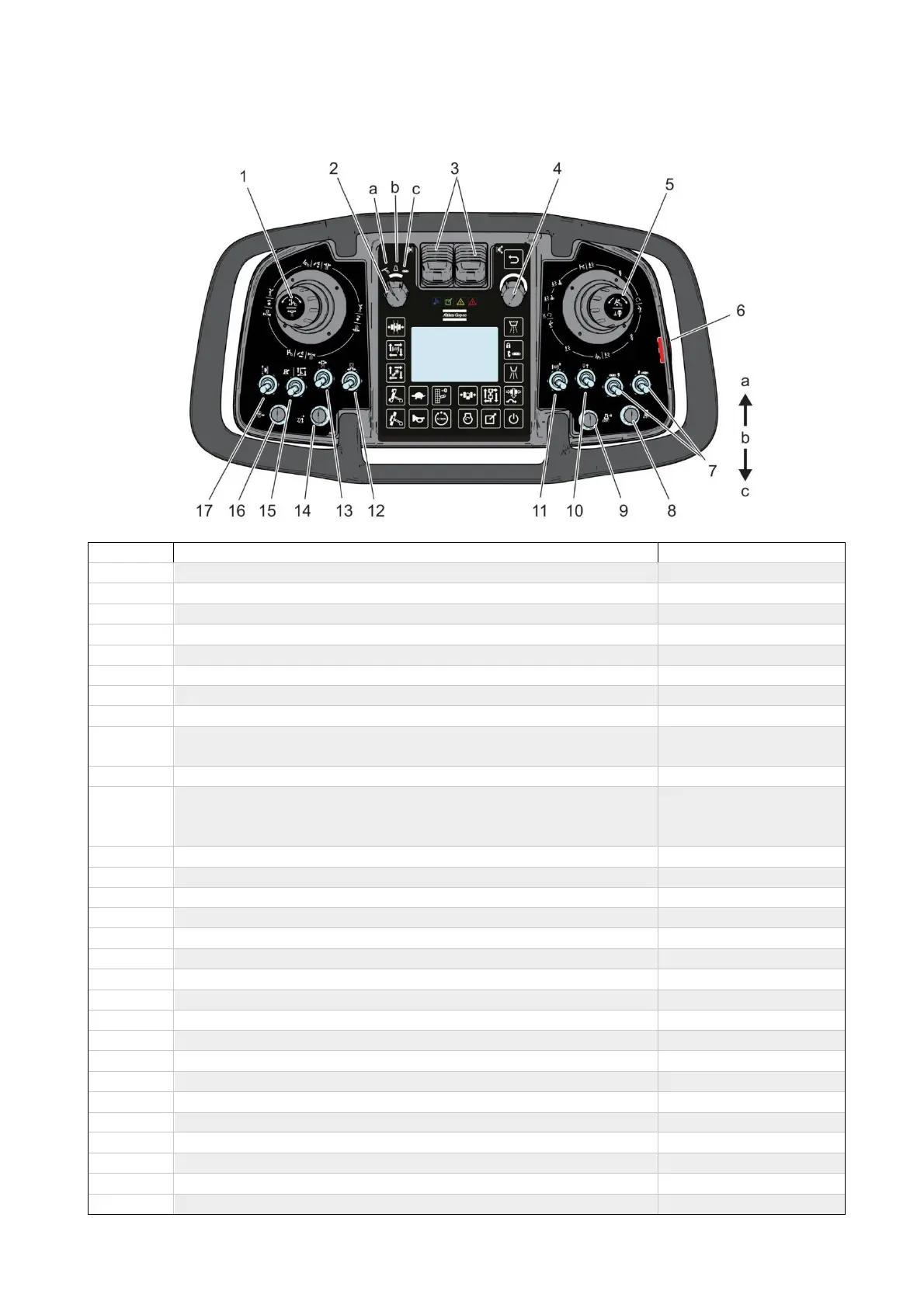

4. Controls
Controls
1
Left hand multifunction lever (Feed positioning)
2
Switch
a Positioning
b Drilling
c Tramming/Positioning
3
Tramming levers
left and right
a Forward
b Neutral
c Reverse
4
Multifunction knob.
See section
Menu views, Navigation
5
Right hand multifunction
lever (Boom and feed positioning)
6
Machine stop switch
Stops the diesel engine (must be reset before restart). The
range of the machine stop switch is 60 m.
7L/R
Jack
left/right
a Lower front section
b Neutral
c Raise front section
8
/9
N/A
10
Hydraulic Jacks
a Up
c Down
11
Winch motor
a Wind in
b Neutral
c Wind out
12
Drill support
a Open
c Close
13
/14/15
N/A
16
Dust collector (DCT)
On/Off
17
N/A
