56
Operator's instructions
4. Controls
Function
Time-out function
The radio box has a time-out function. When the box has not been activated for 10 seconds the
levers are inactive. Reset with the horn button, Enter key or by changing mode with the switch.
Start-up
The switch on the radio box must be in the Tramming/positioning position in order to en-
able
start-up of the radio box.

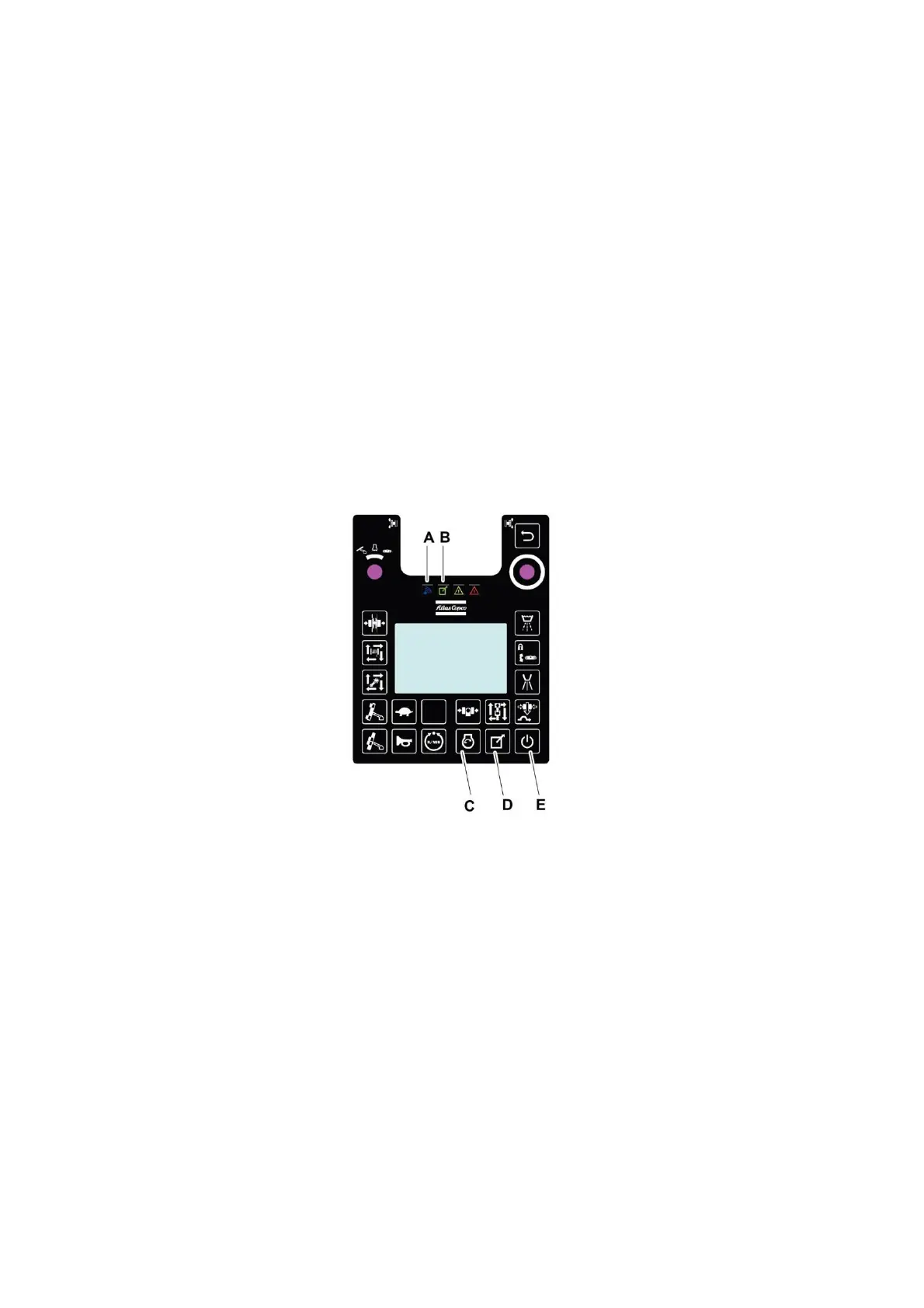

1. Start the radio box by holding button (E) depressed until text is visible on the display.
NOTE: The levers must be in start position when the radio box is started.
2. Transfer control to the radio box by pressing button (D).
NOTE: The screen is shown and the signal lamp (B) flashes before the radio box has taken control.
The signal lamp (B) illuminates when the radio box has taken control.
3. Start the engine by pressing button (C). The signal lamp (B) should illuminate.
