Operator's instructions
5. Operating
Setting-up for drilling with the feeder in vertical position and
swung max to right
NOTE: The rig is symmetrical so the same angles apply as in the chapter "Setting-up for drilling
with the feeder in vertical position and swung max to left".

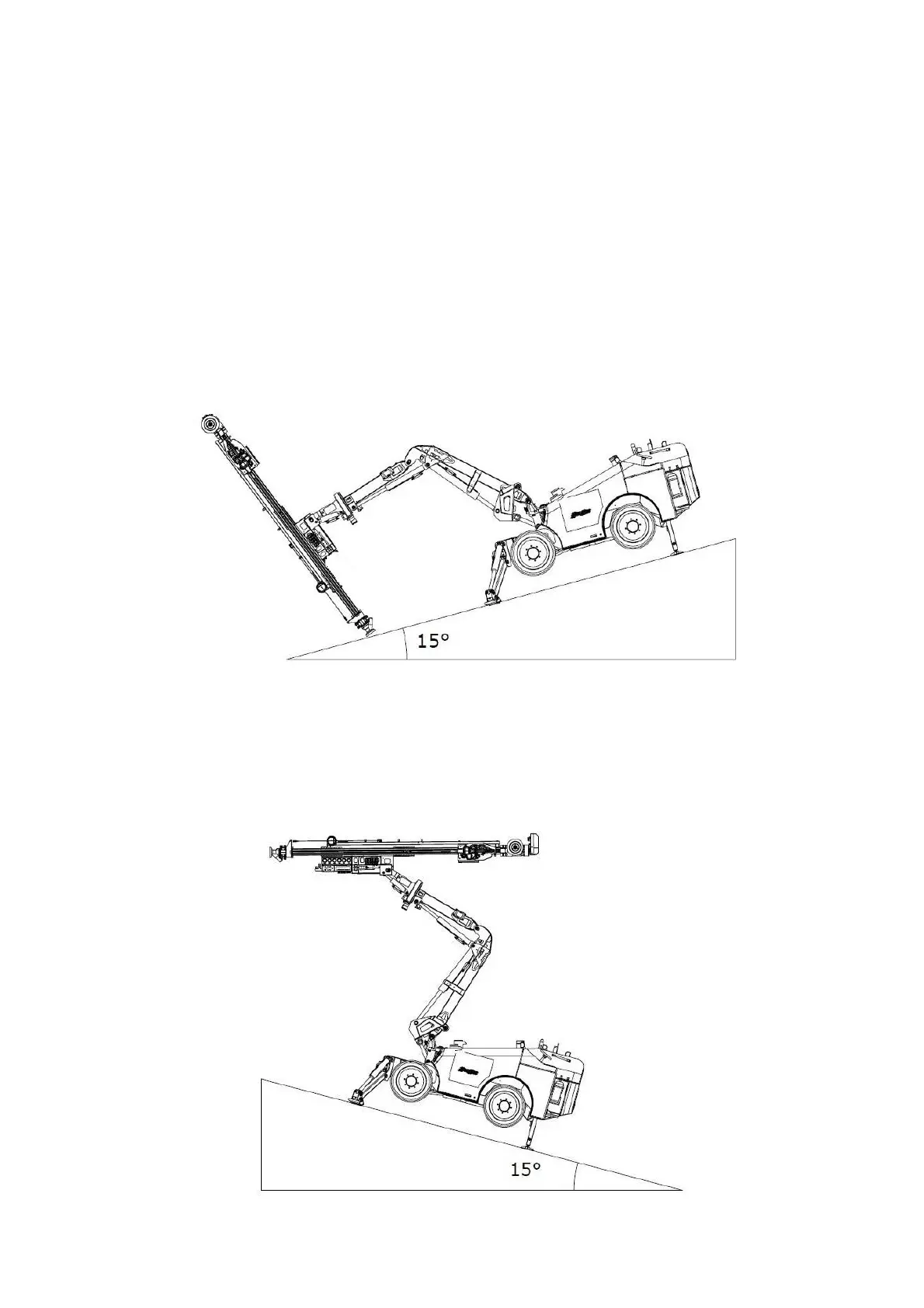

Setting-up for drilling with the feeder top in extreme position
forwards, the feeder laterally vertical and centred between the
wheels
Setting-up for drilling with the feeder top in extreme position
rearwards, the feeder laterally vertical and centered between the
wheels
