Epiroc FlexiROC T20 R User Manual

45
Operator's instructions
4. Controls

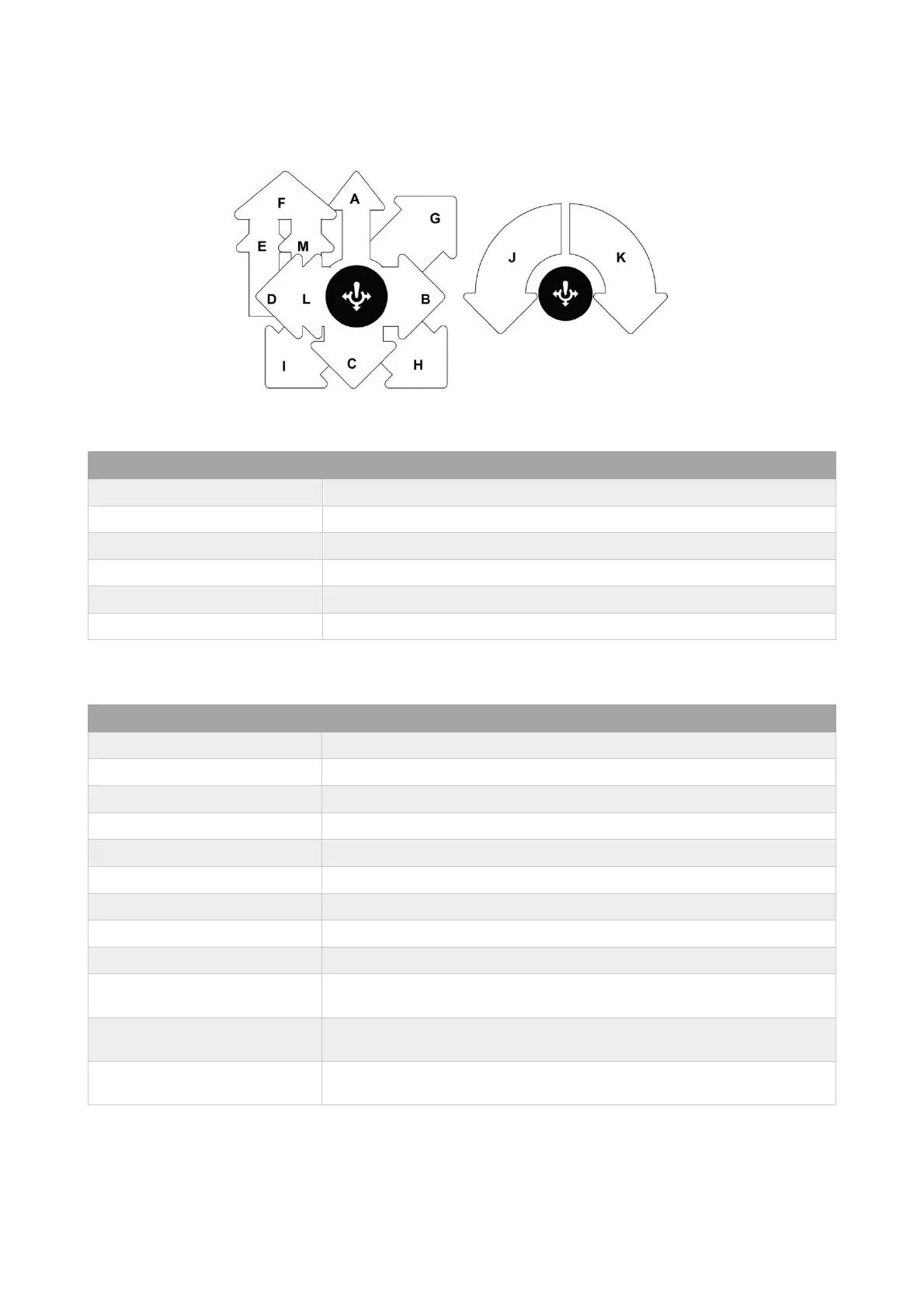

Right-hand multifunction lever
Right-hand multifunction lever
Sector Activity
A
Feed tilt, front
C
Boom lift
B
Boom swing right
D
Boom swing left
J
Boom extension in
k
Boom extension out
Table 19: Functions when positioning mode (a) is selected.
Sector Activity
A
Rapid feed-forward
C
Rapid feed-backward
B
Rotation (Clockwise)
D
Rotation (Anticlockwise) and Flushing air
G
Threading
H
Unthreading
I
Rotation (Anticlockwise)/Flushing air/Feed-backward
E
Reduced auto-drilling
F
Full auto-drilling/collaring
J
Low percussion / Flushing air self-holding - lever movement < 0.2
sec
K
High percussion / Break loose with deactivated automatic drilling.
/ Stop flushing air
L
Proportional feed pressure./ Proportional rotation
Speed. / Only manual percussion
Table 20: Functions when drilling mode (b) is selected
NOTE: Move the lever to sector B to stop drilling/rotation
