78
Operator's instructions
5. Operating
4.
Pull out the wire and fasten the eye to the anchor point.
5.
Lock the winch drum with the disengagement mechanism (A).
6.
Set the winch potentiometer to the desired pressure, touch button (20). Turn the multi-
function knob (4) to change the winch pressure. The display shows the current pres-
sure as % of a maximum pressure of 100%. Depress the multifunction knob (4) at the
same time as turning it to change tramming speed.

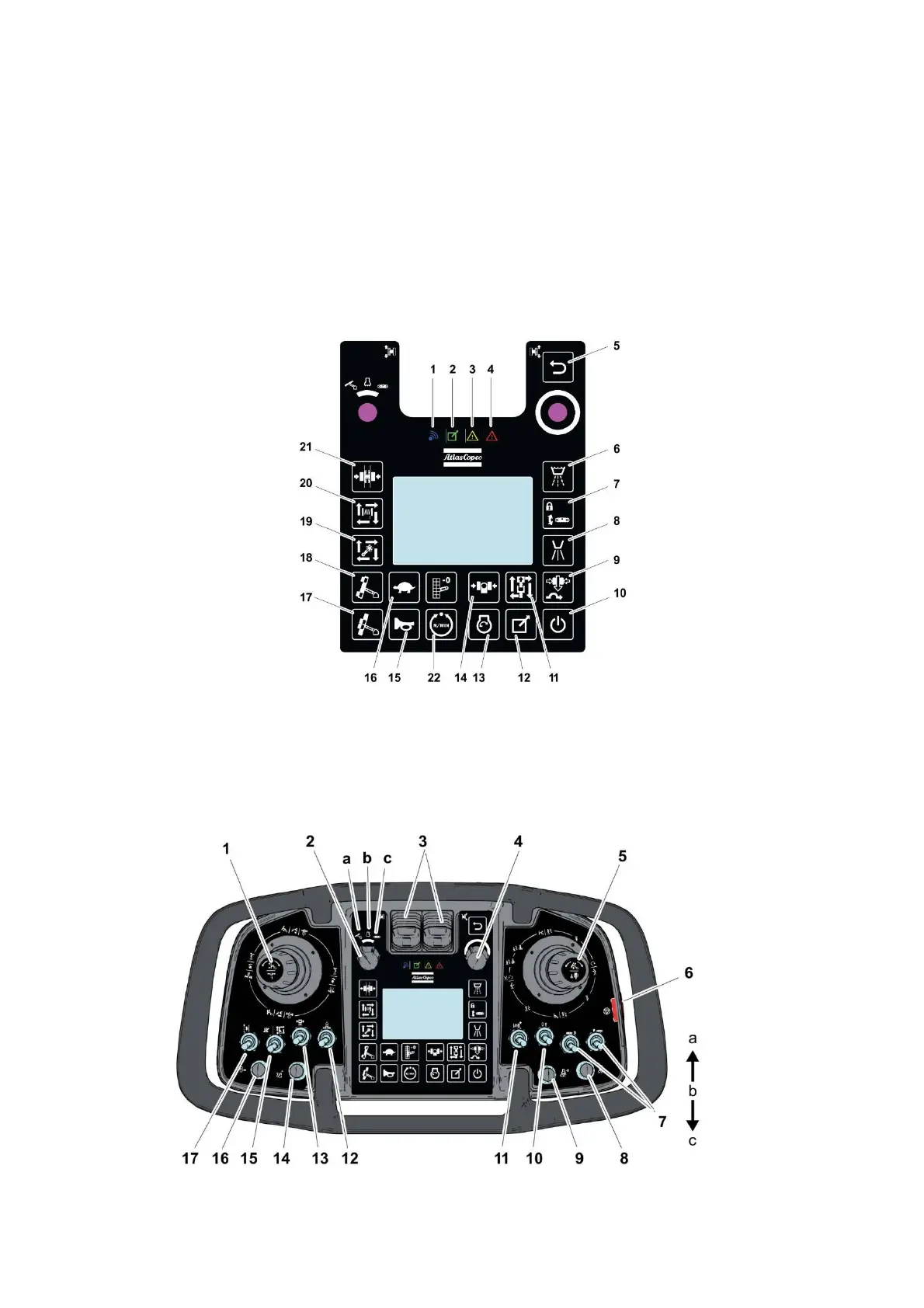

Control panel for diesel engine
7.
Activate the winch circuit. Touch button (20).
8.
Activate wind-in manually to ensure the lock mechanism is fully engaged in the drum
before loading the winch. Switch (11).
Control panel for diesel engine
