6.1.2 Disassembling the lower part
Prerequisites
• The ejector sleeve has been removed.
• The lower part has been removed from the upper part.

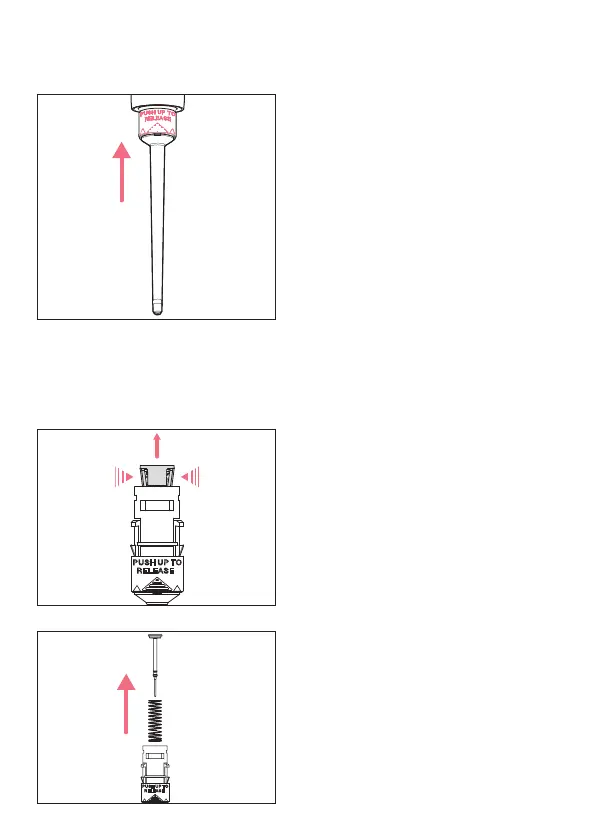

3. Push the ring "PUSH UP TO RELEASE
upward until the lower part is detached.
4. Take out the lower part.
1. Squeeze the stop pins at the piston
mount.
2. Remove the piston mount.
3. Remove the piston spring and the piston.
4. Remove the piston from the piston spring
(Not possible for pipettes with blue
control button).
