Eppendorf Reference 2 - Disassembling the multi-channel pipette

22
Maintenance
Eppendorf Reference
®
2
English (EN)

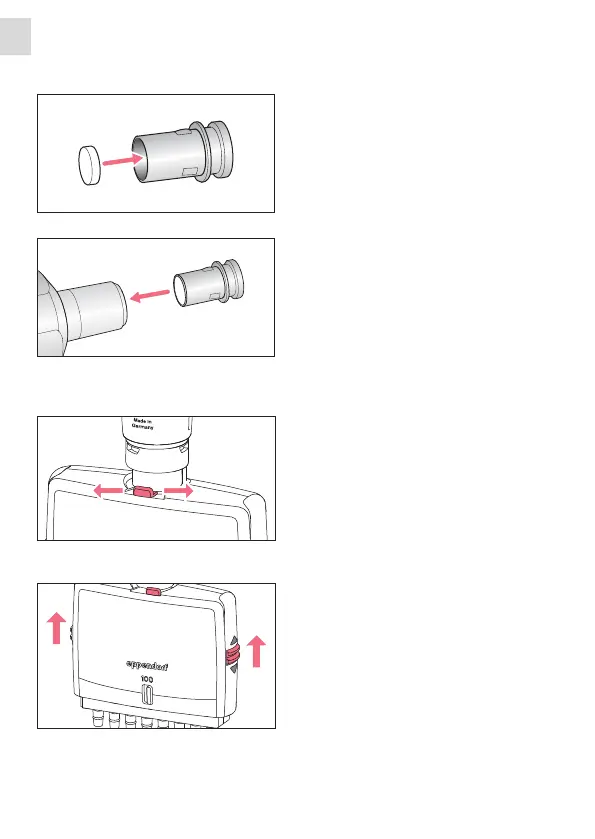

6.6 Disassembling the multi-channel pipette
6.6.1 Removing the lower part
6.6.2 Opening the lower part
5. Insert a new protection filter into the
filter sleeve.
6. Insert the filter sleeve in the tip cone.
1. Set the volume to the nominal volume.
2. Turn the spring load switch to On.
3. Move the lever to one side and hold.
The lower part is being unlocked.
4. Remove the lower part.
1. Hold the lower part with the lever
pointing downward.
2. Push the side latch upward and remove
the latch.
3. Remove the cover plate.
