Eppendorf Reference 2 - Removing the channel

23
Maintenance
Eppendorf Reference
®
2
English (EN)
6.6.3 Removing the channel
6.6.3.1 Fitting the channel
1. Insert the spring with cylinder into the center rail.
2. Compress the spring with the cylinder and insert the cylinder into the lower rail.
3. Insert the piston into the cylinder.
4. Insert the piston into the upper rail.

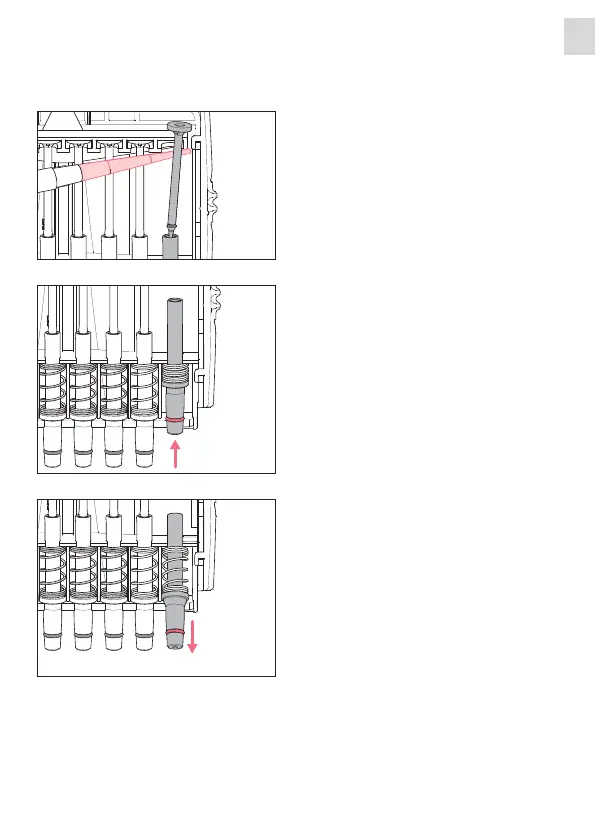

1. Carefully release the piston from the
upper rail and move upward to remove.
2. Slightly push the tip cone in and remove
it from the lower rail.
3. Decompress the spring and pull the
cylinder with spring out of the center rail.
